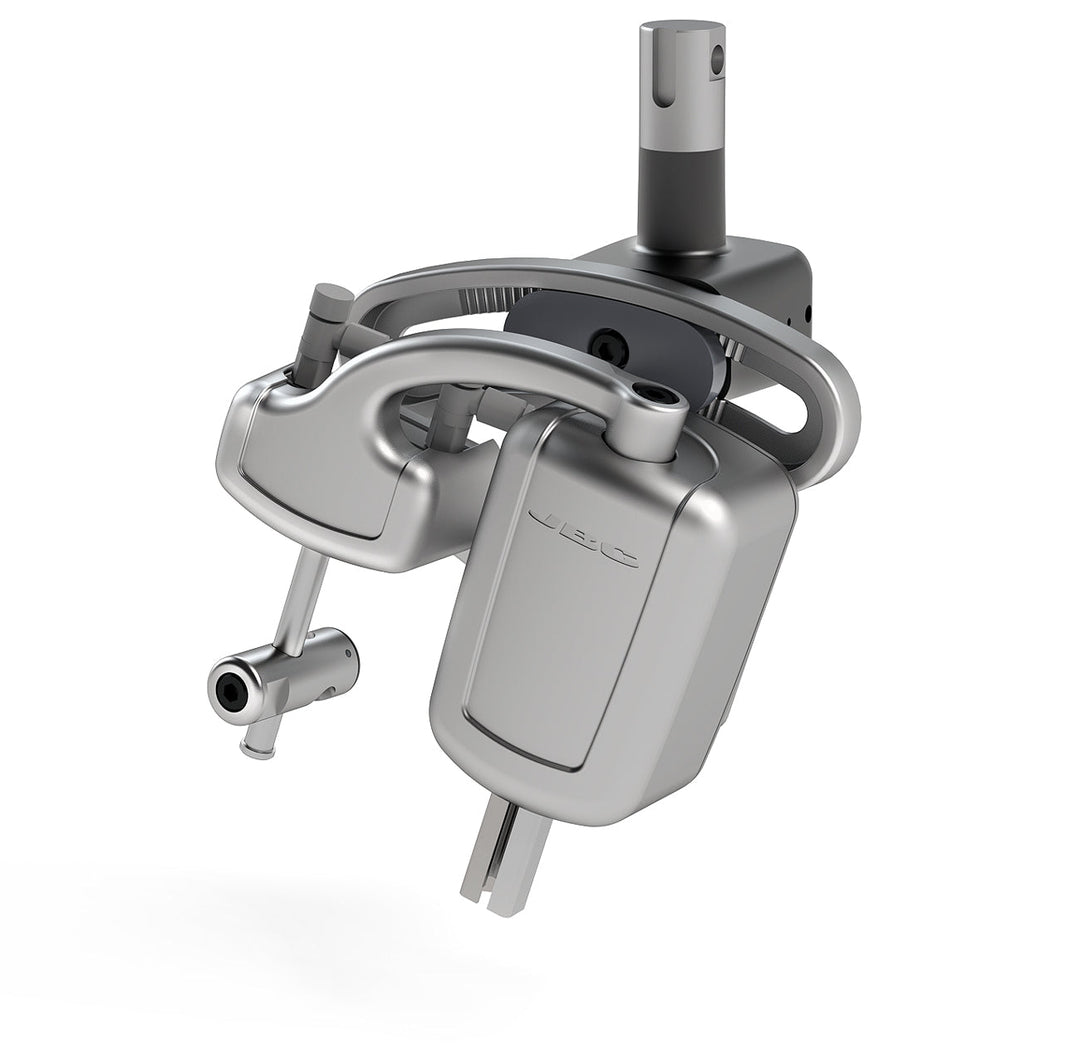

JBC Tools TRA470-B, Automatic Soldering Iron for R470
Used for Heavy Duty Soldering applications.
In combination with the CSR Cartridge Exchanger, it allows a fast and automatic cartridge exchange when cartridges are worn out or when different tip shapes are needed in the same soldering process to achieve the highest quality on each soldering point.
It features a buffer to prevent damaging the PCB by an excessive pressure during soldering process.
The SFR Solder Feeder can be assembled and the Dispensing Nozzle Actuator allows dispensing tube rotation to facilitate tip cleaning with CLRP Automatic Tip Cleaner.
TRA470 is controlled by UCR470 Control Unit and uses R470 Cartridge Range.
SPECIFICATIONS
Cartridge compatibility
Control Box compatibility
Soldering iron angle: 0° to 30°
Buffer stroke: 5mm (0.197 in)
Flange diameter
for Head Assembly: 20 mm (0.787 in)
for Head Assembly: 20 mm (0.787 in)
Operating pressure: 1.5 to 7 bar (20 to 100 psi)
Applicable tubing diam.: 4 mm (0.157 in)
DIMENSIONS AND WEIGHT
Selective Soldering
190 x 133 x 111 mm / 0.72 kg.
7.48 x 5.24 x 4.37 in / 1.58 lb.
Package
220 x 213 x 160 mm / 1.00 kg.
