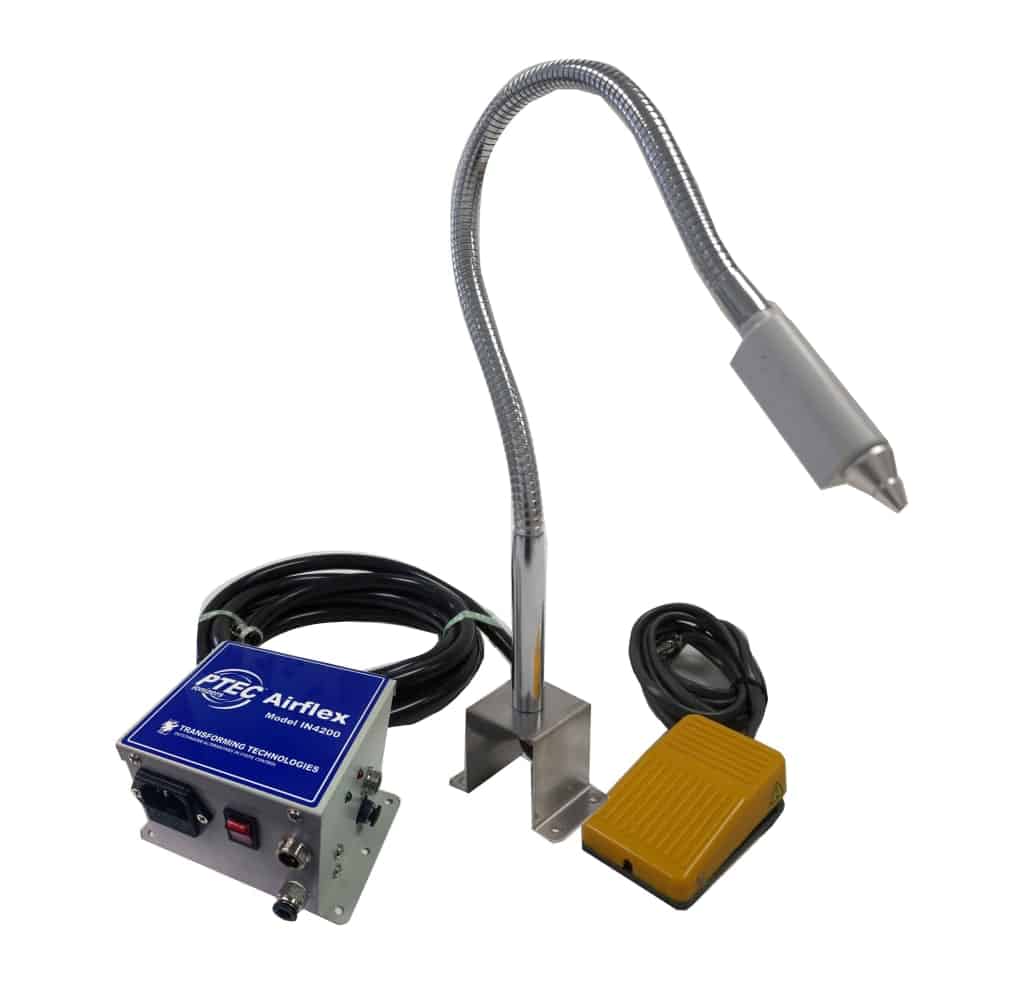

Transforming Technologies Airflex Ionizer, Mountable
Transforming Technologies Airflex Ionizer, Mountable
The Transforming Technologies Airflex Mountable Ionizer is a flexible-positioning ESD ionizer designed for permanent or semi-permanent mounting at the workstation — delivering targeted ionized air to neutralize static charges on non-groundable insulators, PCBs, and process materials. The mountable configuration allows the ionizer to be fixed to a bracket, arm, or workstation structure, keeping it positioned consistently at the optimal angle for the work area without occupying bench space.
Specifications
| Spec | Value |
|---|---|
| Brand | Transforming Technologies |
| Type | Airflex ionizer, mountable |
| Ion Technology | AC corona discharge |
| Mounting | Mountable (bracket/arm) |
| Photo Electric Eye | No |
| Compliance | ANSI/ESD S20.20, ANSI/ESD STM3.1 |
| Stock Location | Canton, MA |
Key Features
- Mountable Design: Mounts to a bracket, arm, or workstation structure — keeps the ionizer consistently positioned without occupying bench space.
- Airflex Flexible Positioning: Adjustable aim allows targeted ionization at specific zones of the work surface.
- AC Corona Discharge Ionization: Neutralizes static charges on non-groundable surfaces.
- ANSI/ESD S20.20 Compliant: Meets ionizer requirements per ANSI/ESD S20.20 and ANSI/ESD STM3.1.
Frequently Asked Questions
What is the difference between the Airflex Mountable and the Airflex Mountable with Photo Electric Eye?
Both are mountable Airflex ionizers. The version with photo electric eye (PE) adds an automatic trigger sensor that activates the ionizer only when an object is detected in the work area — suited for automated processes. The standard mountable version operates continuously. Choose the PE version for automated triggering; choose the standard for continuous ionization.
What is the difference between the mountable Airflex and the IN4000?
Both are Airflex ionizers with flexible positioning. The mountable version is designed for fixed installation on a bracket or arm. The IN4000 is more suited for freestanding or frequently repositioned use. Choose the mountable version when you want the ionizer permanently fixed at a specific position at the workstation.
Why do I need an ionizer if I already have ESD mats and wrist straps?
ESD mats and wrist straps ground conductors but cannot neutralize charges on insulators. An ionizer floods the work area with balanced ions to neutralize those charges. ANSI/ESD S20.20 requires ionization when insulators with voltages above the process voltage limit are present in the EPA.
