Transforming Technologies IN4000 Airflex Ionizer
Transforming Technologies IN4000 Airflex Ionizer

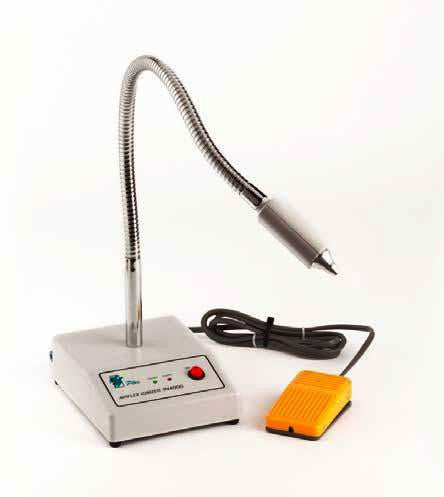

The Transforming Technologies IN4000 Airflex Ionizer is a flexible-positioning ESD ionizer designed for targeted static neutralization at the workstation. The Airflex design allows the ionizer to be positioned and aimed at specific areas of the work surface — ideal for applications where static charges concentrate in a particular zone, where a fixed benchtop or overhead ionizer cannot be optimally positioned, or where the ionizer needs to be repositioned frequently as work tasks change. It delivers ionized air to neutralize charges on non-groundable insulators, PCBs, and process materials.
Specifications
| Spec | Value |
|---|---|
| SKU | IN4000 |
| Brand | Transforming Technologies |
| Type | Airflex ionizer (flexible positioning) |
| Ion Technology | AC corona discharge |
| Positioning | Flexible — adjustable aim |
| Photo Electric Eye | No |
| Compliance | ANSI/ESD S20.20, ANSI/ESD STM3.1 |
| Stock Location | Canton, MA |
Key Features
- Airflex Flexible Positioning: Adjustable aim allows the ionizer to be directed at specific zones of the work surface — targeted static neutralization where it’s needed most.
- Versatile Placement: Can be positioned on the bench, mounted, or aimed at specific work areas — more flexible than fixed benchtop or overhead units.
- AC Corona Discharge Ionization: Neutralizes static charges on non-groundable surfaces — PCBs, plastic housings, packaging, and process materials.
- ANSI/ESD S20.20 Compliant: Meets ionizer requirements per ANSI/ESD S20.20 and ANSI/ESD STM3.1.
Frequently Asked Questions
What is the difference between the IN4000 and the IN4000PE?
Both are Airflex ionizers with flexible positioning. The IN4000PE adds a photo electric eye (PE) sensor that automatically activates the ionizer when an object is detected in the work area — useful for automated or semi-automated processes where ionization should trigger only when a part is present. The IN4000 operates continuously without a PE sensor. Choose the IN4000PE for automated triggering; choose the IN4000 for continuous ionization.
What is the difference between the IN4000 Airflex and the BFN801 benchtop ionizer?
The BFN801 is a fixed benchtop ionizer that blows ionized air in a set direction across the workbench. The IN4000 Airflex has adjustable positioning — it can be aimed at specific zones of the work surface, repositioned as tasks change, or directed at a particular component or fixture. Choose the IN4000 when targeted, adjustable ionization is needed rather than fixed broad-area coverage.
Why do I need an ionizer if I already have ESD mats and wrist straps?
ESD mats and wrist straps ground conductors but cannot neutralize charges on insulators. An ionizer floods the work area with balanced ions to neutralize those charges. ANSI/ESD S20.20 requires ionization when insulators with voltages above the process voltage limit are present in the EPA.
