ACL Staticide Dualmat II Static Dissipative Tray Liners, 2-Ply Cross-Linked Rubber, Royal Blue or Dark Gray
ACL Staticide Dualmat II Static Dissipative Tray Liners
ACL Staticide Dualmat II Tray Liners are pre-cut ESD tray liners made from the same 2-ply chemically cross-linked rubber material as the full Dualmat roll series. The top layer is inherently static dissipative (10⁶–10⁸ Ω); the bottom layer is conductive (<5×10⁵ Ω) for reliable grounding contact with the tray. The material will not exudate, outgas, or lose its electrical properties over the lifetime of the mat. Embossed surface reduces parts slippage and light glare. Resistant to solder flux, heat, and most common solvents. No vinyl monomers or DOP — fully REACH compliant. Made in USA.

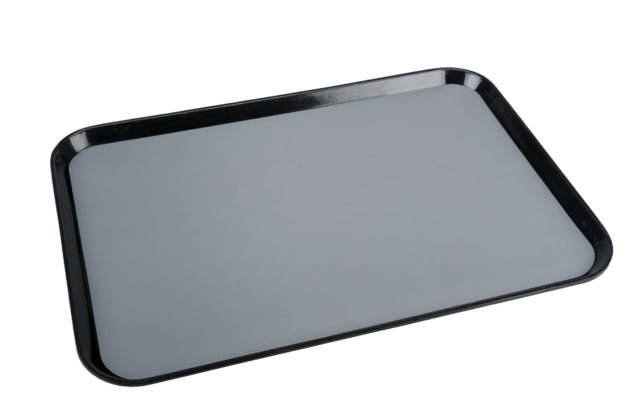

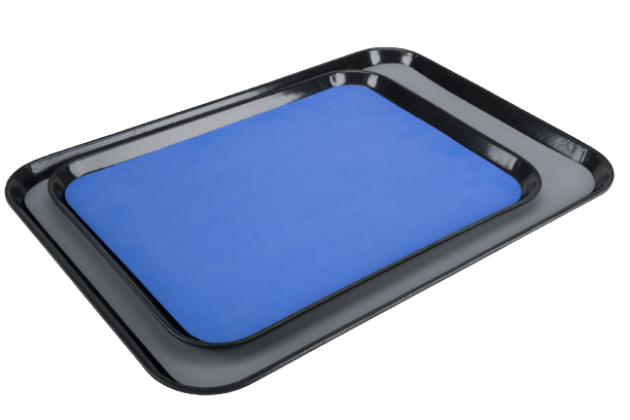

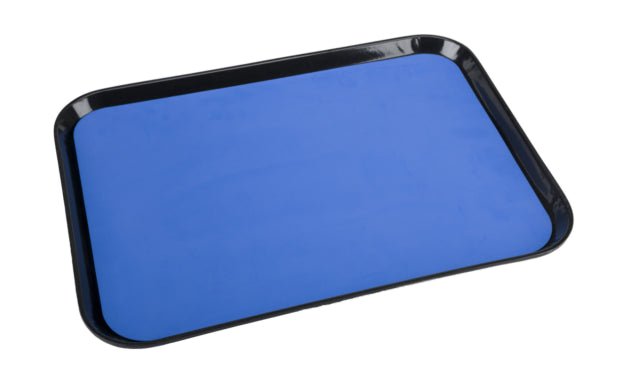

Two sizes available to fit ACL Staticide 972015 and 972618 Staticide Conductive Trays. Available in Royal Blue and Dark Gray. Select size and color above.
Key Specifications
| Series | Dualmat II Tray Liner |
| Brand | ACL Staticide |
| Material | 2-ply chemically cross-linked rubber |
| Top Layer Resistance | 10⁶–10⁸ Ω (static dissipative) |
| Bottom Layer Resistance | <5×10⁵ Ω (conductive) |
| Static Decay | 0.05 seconds |
| Thickness | 0.06 in (1.5 mm) |
| Size Option 1 (SKUs: 7275RBM1813RE / 7375DGYM1813RE) | 18" × 13" with 1-3/4" rounded edges |
| Size Option 2 (SKUs: 7275RBM2416RE / 7375DGYM2416RE) | 24" × 16" with rounded edges |
| Colors | Royal Blue, Dark Gray |
| Compatible Tray (18" × 13") | ACL Staticide 972015 Staticide Conductive Tray |
| Compatible Tray (24" × 16") | ACL Staticide 972618 Staticide Conductive Tray |
| Warranty | Lifetime electrical warranty |
| Compliance | ANSI/ESD S20.20, REACH compliant |
| Origin | Made in USA |
Key Features
- Inherently Dissipative Top Layer: 10⁶–10⁸ Ω — permanent cross-linked rubber construction, not a topical treatment. Will not degrade with cleaning or age.
- Conductive Bottom Layer: <5×10⁵ Ω for reliable electrical contact with grounded conductive trays.
- Lifetime Electrical Warranty: Electrical properties warranted for the life of the liner.
- Pre-Cut with Rounded Edges: Ready to drop into compatible ACL Staticide conductive trays without cutting or trimming.
- Embossed Surface: Reduces parts slippage and light glare during component handling.
- Solvent and Heat Resistant: Withstands exposure to solder flux and most common solvents used in electronics assembly.
- No Vinyl Monomers or DOP — REACH Compliant.
- Made in USA.
Frequently Asked Questions
Which ACL Staticide trays do these liners fit?
The 18" × 13" liner (SKUs 7275RBM1813RE and 7375DGYM1813RE) fits the ACL Staticide 972015 Staticide Conductive Tray. The 24" × 16" liner (SKUs 7275RBM2416RE and 7375DGYM2416RE) fits the ACL Staticide 972618 Staticide Conductive Tray. Custom cut sizes are available on request for other tray dimensions.
What is the difference between the Royal Blue and Dark Gray Dualmat II tray liners?
The Royal Blue (7275RBM prefix) and Dark Gray (7375DGYM prefix) versions are identical in material, electrical properties, thickness, and dimensions — the only difference is color. Color selection is typically used to support color-coded workstation or product-line identification programs.
Will the Dualmat II tray liner lose its ESD properties over time?
No. The Dualmat II uses chemically cross-linked rubber with inherent dissipative and conductive properties throughout the material — not a topical or surface treatment. It will not lose its electrical properties through normal use, cleaning, or aging. ACL Staticide warrants the electrical properties for the lifetime of the liner.
Does the Dualmat II tray liner comply with ANSI/ESD S20.20?
Yes. The Dualmat II Tray Liner is designed for use in ANSI/ESD S20.20-compliant EPAs. Its dissipative top and conductive bottom meet the requirements for ESD workstation surfaces, and the REACH-compliant, no-DOP formulation satisfies chemical compliance requirements for aerospace, medical device, and defense electronics manufacturing environments.
