ACL Staticide 8153 Premium Wrist Strap with 1MΩ Coiled Cord, Light Blue w/4mm Stud
ACL Staticide 8153 — Premium ESD Wrist Strap & 1MΩ Coiled Cord Set

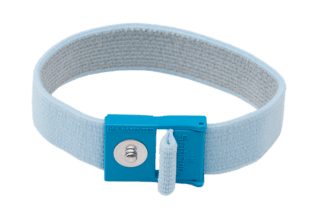

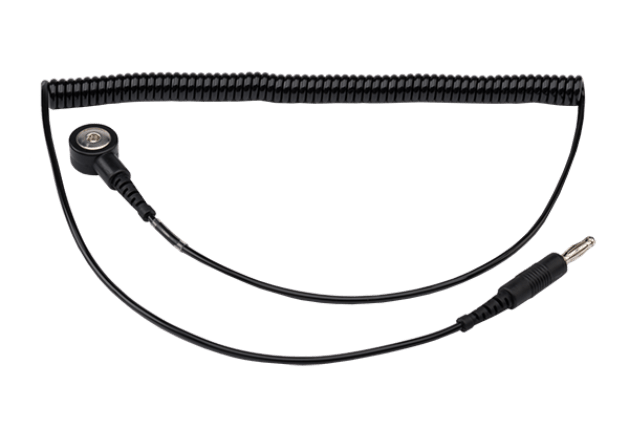

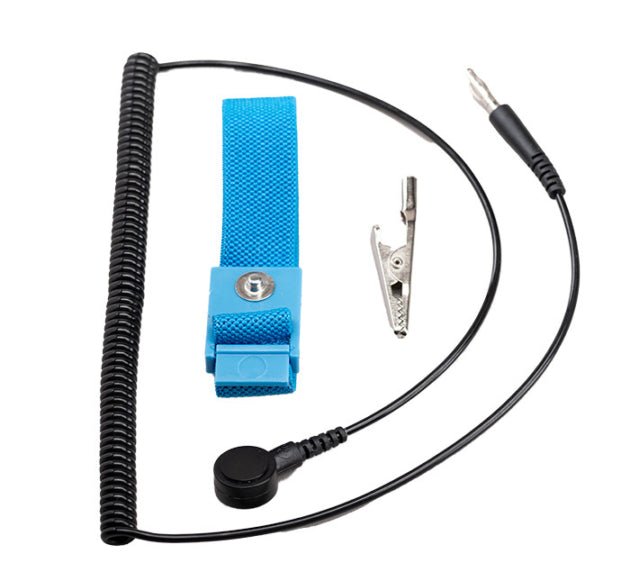

The ACL Staticide 8153 is a complete ESD personal grounding set combining the ACL Staticide 8115 Premium Hypoallergenic Wrist Strap (light blue) and the ACL Staticide 8107 Premium 1MΩ Coiled Cord with alligator clip. Designed for ESD-sensitive assembly, repair, and inspection environments, the 8153 set provides reliable operator grounding with a hypoallergenic band construction for comfort during extended wear. The 1MΩ series resistor in the cord protects the operator from electrical shock while maintaining a continuous ground path to dissipate static charge from the body.
Key Specifications
| Specification | Value |
| Part Number | 8153 |
| Set Contents | 8115 Wrist Strap + 8107 Coiled Cord |
| Wrist Band Color | Light Blue |
| Band Material | Hypoallergenic (latex-free) |
| Cord Resistance | 1 MΩ (megohm) |
| Cord Length | 6 ft (coiled) |
| Connector | 4mm stud (wrist band) to banana plug & alligator clip (ground end) |
| Standard | ANSI/ESD S1.1 |
| Pack Quantity | 1 set (wrist strap + cord) |
Key Features
- Complete grounding set — wrist strap and coiled cord sold together, ready to use out of the box
- Hypoallergenic band — latex-free construction for all-day comfort; suitable for sensitive skin
- 1 MΩ safety resistor — limits current flow to protect operator from electrical shock while maintaining effective ESD grounding
- 4mm snap stud — industry-standard connection compatible with ACL Staticide and most other ESD ground cords
- Alligator clip termination — easy connection to wrist strap ground point, ESD mat ground snap, or common point ground
- ANSI/ESD S1.1 compliant — meets the standard for wrist straps used in ESD-controlled environments
Frequently Asked Questions
What is the difference between the ACL Staticide 8153 and 8115?
The 8115 is the wrist strap band only. The 8153 is a complete set that includes both the 8115 wrist strap and the 8107 1MΩ coiled cord with alligator clip — everything needed for operator grounding without purchasing components separately.
Why does an ESD wrist strap cord need a 1 megohm resistor?
The 1 MΩ (megohm) resistor in the cord limits current to a safe level (≤1 mA at 120V) if the operator accidentally contacts a live circuit. Without it, a direct ground path could allow dangerous current through the body. The resistor provides protection while still maintaining a continuous low-impedance path for static charge dissipation, as required by ANSI/ESD S1.1.
How do I test the ACL Staticide 8153 wrist strap to verify it is working?
Wrist straps should be tested daily with a wrist strap tester before beginning work in an ESD-controlled area. Testing verifies that the band maintains skin contact resistance within the acceptable range and that the cord’s 1 MΩ resistor and continuity are intact. ANSI/ESD S1.1 and most ESD control programs require documented daily testing. MTE Solutions carries compatible wrist strap testers.
Is the 8153 wrist strap hypoallergenic and latex-free?
Yes — the ACL Staticide 8115 band included in the 8153 set is hypoallergenic and latex-free, making it suitable for operators with latex sensitivity or those who experience skin irritation from standard ESD wrist bands during extended wear.
What ground connection does the 8153 cord use?
The 8107 cord connects to the 8115 wrist strap via a 4mm snap stud and terminates at the ground end with a banana plug and alligator clip. The alligator clip can connect to a common point ground, an ESD mat ground snap, or a ground point on your workstation. The 4mm stud is the industry-standard size compatible with ACL Staticide and most other ESD wrist strap cords.
