SCS 724, Workstation Monitor, North America

SCS SKU: 724
SCS 724, Workstation Monitor, North America
SCS 724, Workstation Monitor, North America
SCS 724, Workstation Monitor, North America

SCS 724, Workstation Monitor, North America

SCS SKU: 724
Regular price $245.99
/
Shipping calculated at checkout.

SCS 724, Workstation Monitor, North America

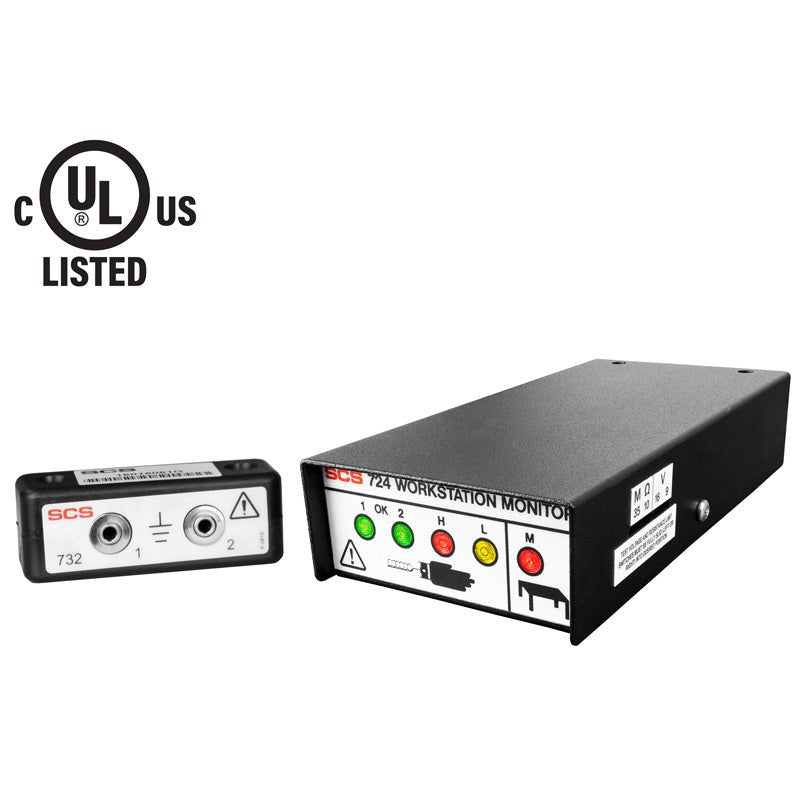

The SCS 724 Workstation Monitor continuously monitors the path-to-ground integrity of two operators and one conductive or dissipative worksurface. It has been designed and tested for use with SCS Dual-Wire Wrist Straps and Worksurface Mats. If the equipment is used in a manner not specified in these instructions, the protection provided by the equipment may be impaired. Use in any other application has not been evaluated by SCS and may lead to an unsafe condition. The SCS 724 Workstation Monitor meets the requirements of ANSI/ESD S20.20 and recommendations of ESD Handbook ESD TR20.20 which includes “if the products that are being produced are of such value that knowledge of a continuous, reliable ground is needed, and then continuous monitoring should be considered or even required”.

  • Single workstation continuous monitor
    Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
  • Continuously monitors 2 operator dual-wire wrist straps and 1 worksurface mat
    Visible and audible alarms indicate improper grounding of the operator and worksurface
  • Adjustable operator test voltage and upper limit
    Test voltage can be set to 9 or 16 volts; test limit can be set to 10 or 35 megohms
  • Adjustable audible alarm
    Buzzer volume may be disabled or set to loud or soft
  • Simple installation and setup

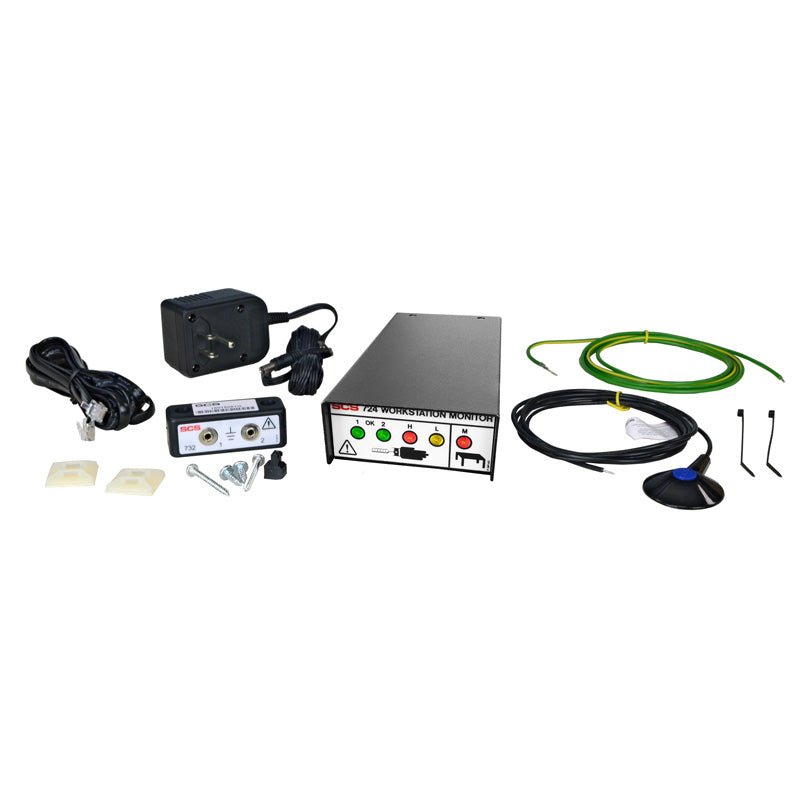

    Mounting hardware and wire management clips are included
  • North American power adapter included
  • 770065 Calibration Verification Tester sold separately
    Use to perform periodic calibration testing of the 724 Workstation Monitor
  • UL Safety Certified
    Complies UL Category Code Number NYOK
  • NIST Calibrated with Certificate Included
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of SCS products, click here
  • Made in the United States of America
    This item is made and stocked in Chino, CA
  • TB-9013 - 724 Workstation Monitor - User Guide
