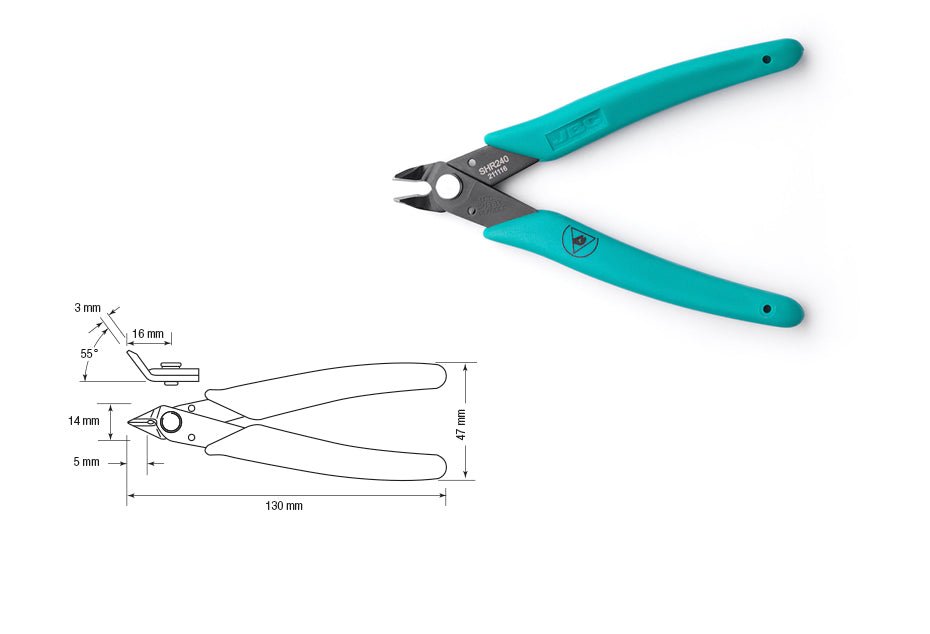

JBC Tools SHR240, 55° Angle Shears
The JBC Tools SHR240 is a precision 55° angle shear designed for cutting soft wire up to 20 AWG (0.8 mm) in confined or difficult-to-access areas. The angled head provides a clear line of sight when working in both vertical and horizontal orientations, and the slim, lightweight profile reduces hand fatigue during extended use.
ESD-safe hand grips make the SHR240 suitable for use in electrostatic discharge-controlled environments including SMT assembly, PCB rework, and electronics manufacturing.
Key Features
- 55° angled head for clear visibility and access in tight spaces
- Flush cutting action — clean, close cuts on soft wire up to 20 AWG (0.8 mm)
- ESD-safe handle grips for use in EPA environments
- Slim profile for accessibility in confined board areas
- Lightweight construction for reduced operator fatigue
Specifications
| Specification | Value |
|---|---|
| Model | SHR240 |
| Cutting angle | 55° |
| Maximum wire capacity | 20 AWG / 0.8 mm (soft wire) |
| ESD safe | Yes |
| Net weight | 0.05 kg (0.11 lb) |
| Package dimensions | 160 × 100 × 15 mm (6.30 × 3.94 × 0.59 in) |
| Package weight | 0.06 kg (0.13 lb) |
Applications
- SMT and through-hole PCB assembly
- PCB rework and touch-up trimming
- Wire lead cutting in tight board sections
- ESD-controlled electronics manufacturing environments
- Precision electronics assembly and repair
Frequently Asked Questions
What wire types can the SHR240 cut?
The SHR240 is rated for soft wire up to 20 AWG (0.8 mm). It is not intended for hard wire, spring wire, or wire above its rated capacity — cutting harder materials will damage the blade edge.
Why is a 55° angle better than a straight cutter for PCB work?
The angled head positions the cutting edge closer to the board surface without requiring the operator to tilt their wrist at an uncomfortable angle. This improves visibility of the cut point and allows access to wire leads near tall components or board edges where a straight cutter would be blocked.
Are the grips ESD safe for use in a static-controlled environment?
Yes. The SHR240 features ESD-safe handle grips designed for use in electrostatic discharge protected areas (EPAs). Verify that your specific EPA requirements are met by reviewing the tool's ESD specifications against your ESD Control Plan.
How does the SHR240 compare to straight JBC flush cutters?
The SHR240 provides the same flush cutting action as straight-head JBC shears but with the added benefit of the 55° angled head for improved access and sightlines in difficult board locations. Straight cutters are preferred for open, accessible areas; the angled SHR240 is the right choice when clearance or visibility is limited.
Is this tool suitable for Kapton or fiber optic cutting?
The SHR240 is specifically designed for soft wire cutting. For specialty materials like Kapton tape, fiber optics, or plastic components, verify the material hardness against the tool's wire capacity rating before use.
