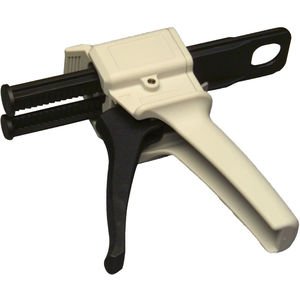

Permabond DD50MLCOMBOGUN, 50ml Combo 1:1/2:1 Cartridge Dispensing Gun
Permabond DD50MLCOMBOGUN — 50ml Combo 1:1 / 2:1 Cartridge Dispensing Gun
The Permabond DD50MLCOMBOGUN (SKU: DD50MLCOMBOGUN) is a manual dispensing gun designed for use with 50ml dual-cartridge adhesives in both 1:1 and 2:1 mix ratios. Compatible with Permabond 2-part epoxy and polyurethane adhesives supplied in 50ml cartridges — including ET series epoxies and PT series polyurethanes. The combo design accepts both 1:1 and 2:1 ratio cartridges, eliminating the need for separate guns for different adhesive mix ratios. Ergonomic handle and smooth dispensing mechanism for controlled, consistent adhesive delivery.
Key Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | DD50MLCOMBOGUN |
| Cartridge Size | 50ml |
| Compatible Mix Ratios | 1:1 and 2:1 |
| Dispensing Type | Manual (hand-operated) |
| Compatible Adhesives | Permabond 2-part epoxy and polyurethane 50ml cartridges |
| Brand | Permabond |
Key Features
- Combo 1:1 / 2:1 compatibility — single gun accepts both 1:1 and 2:1 ratio 50ml cartridges, reducing tooling cost and simplifying inventory
- 50ml cartridge format — compatible with Permabond’s full range of 50ml 2-part adhesive cartridges including ET series epoxies and PT series polyurethanes
- Manual dispensing — ergonomic hand-operated design for controlled, consistent adhesive delivery at the bench or in the field
- Works with static mixers — cartridge nozzle accepts standard static mixer tips (included with Permabond cartridges) for thorough, consistent mixing at the point of dispensing
Frequently Asked Questions
What Permabond adhesives are compatible with the DD50MLCOMBOGUN?
The DD50MLCOMBOGUN is compatible with all Permabond 2-part adhesives supplied in 50ml dual cartridges with 1:1 or 2:1 mix ratios. This includes Permabond ET series 2-part epoxies (e.g., ET515, ET5428) and PT series 2-part polyurethanes (e.g., PT321) in 50ml cartridge format. Verify the mix ratio of your specific adhesive cartridge before use.
What is the difference between a 1:1 and 2:1 mix ratio cartridge?
The mix ratio refers to the volume ratio of Part A to Part B in the adhesive cartridge. A 1:1 ratio means equal volumes of both parts are dispensed simultaneously. A 2:1 ratio means twice the volume of Part A is dispensed for every one part of Part B. The DD50MLCOMBOGUN is designed to accommodate both ratios — the cartridge geometry and plunger design automatically dispenses the correct ratio for each cartridge type.
Do I need a static mixer with this dispensing gun?
Yes — a static mixer tip is required to mix the two adhesive components as they are dispensed. Permabond 2-part adhesive cartridges typically include one static mixer per cartridge. Additional static mixers are available separately. Always attach a new static mixer before beginning dispensing, and leave the used mixer attached to the cartridge between uses to prevent the mixed adhesive at the tip from curing back into the cartridge.
How do I prevent the cartridge from dripping between uses?
After dispensing, release the trigger and allow the pressure to equalize before removing the cartridge. Leave the used static mixer attached — the cured adhesive in the mixer tip acts as a seal. Store the cartridge with the mixer attached in a cool location. When resuming use, dispense a small amount to purge any partially cured material from the mixer before applying adhesive to your workpiece.
