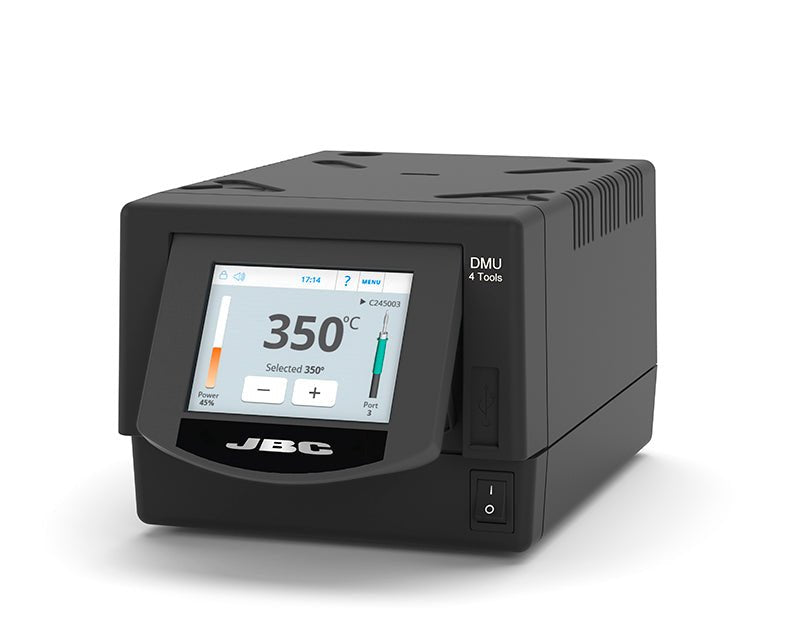

The JBC DME-1A is a 120V DMU (Digital Multi-Unit) 4-tool soldering control unit from JBC’s Excellence Range — the most advanced and capable station platform in JBC’s lineup. It simultaneously operates up to four soldering or desoldering tools, delivering up to 160W per tool with JBC’s Exclusive Heating System. The DME-1A integrates Dynamic Soldering Profiles for MLCC ceramic chip protection, full process traceability via LAN and USB, Sleep & Hibernation tip protection, and a configurable interface in 10 languages. Supports remote control, USB microscope connection, and interconnection of up to 5 PSE units to manage up to 24 tools simultaneously in production environments.
For 230V operation see the DME-2A. For 900V operation see the DME-9A.
Key Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | DME-1A |
| Voltage | 120V |
| Series | DMU — Excellence Range |
| Tools Supported | Up to 4 simultaneous soldering/desoldering tools |
| Peak Power per Tool | 160W at 23.5V |
| Compatible JBC Tool Models | 10 different JBC tools |
| Selectable Temperature | 90 to 450°C / 190 to 840°F |
| Dynamic Soldering Profiles | Up to 25 fully configurable profiles |
| Operating Temperature | 10 to 50°C / 50 to 122°F |
| Control Unit Dimensions | 232 × 148 × 120 mm / 9.13 × 5.83 × 4.72 in |
| Control Unit Weight | 4.57 kg / 10.08 lb |
| Interface Languages | English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese |
| ESD Safe | Yes — Equipotential bonding ESD/EOS |
| Brand | JBC Tools |
Connectivity
| Port | Function |
|---|---|
| USB-B (rear) | PC software / traceability |
| USB-A (front) | Firmware update, soldering graphics/profiles management, Dino-Lite USB microscope (AM2011, AM2111) |
| RS-232 | Robot remote control or Smart Fume Extractor connection |
| LAN | Remote control / traceability |
| PS port | Interconnect up to 5 PSE units — manage up to 24 tools simultaneously |
Key Features
- 4-tool simultaneous operation — supports up to four soldering or desoldering tools operating at the same time; compatible with 10 different JBC tool types across the Excellence Range
- 160W per tool — JBC’s Exclusive Heating System delivers up to 160W at 23.5V per tool for instant heat recovery on demanding joints including large thermal mass pads and ground planes
- Dynamic Soldering Profiles — MLCC protection — up to 25 fully configurable profiles control the heating ramp rate through all phases of the soldering process, preventing thermal shock on ceramic chip components (MLCC capacitors)
- Sleep & Hibernation tip protection — automatically reduces tip temperature when the tool rests in the stand, extending tip life and reducing oxidation
- Full process traceability — LAN connectivity for remote control and data logging; USB-B for PC software and traceability; supports audit-ready process documentation in GMP and ISO-regulated environments
- Station customization and access control — PIN protection, max/min temperature limits, 3 user-selectable temperature presets, and real-time soldering graphics (tip temperature and power delivery)
- PSE interconnect — up to 24 tools — link up to 5 PSE control units to the DME for centralized management of up to 24 tools simultaneously in production line environments
- USB microscope support — direct connection of Dino-Lite USB microscopes (AM2011, AM2111) for integrated inspection workflows
Frequently Asked Questions
What is the difference between the DME-1A, DME-2A, and DME-9A?
All three are identical DMU 4-tool Excellence Range control units differing only in supply voltage: DME-1A is 120V (North America), DME-2A is 230V (Europe/international), and DME-9A is 900V (specialized industrial supply). All three deliver the same 160W per tool performance and feature set. Choose based on your facility’s supply voltage.
What JBC tools are compatible with the DME-1A?
The DME-1A is compatible with 10 different JBC tool types from the Excellence Range. A basic working system requires at minimum 1 stand, 1 tool, and 1 cartridge. Contact MTE Solutions at 651-600-3838 to configure the right tool combination for your application — we can advise on handle, stand, and cartridge selection based on your soldering tasks.
What are Dynamic Soldering Profiles and when do I need them?
Dynamic Soldering Profiles control the rate at which the tip temperature ramps up during soldering, rather than applying maximum power immediately. This is critical for MLCC ceramic chip capacitors (and other ceramic passives), which can crack from thermal shock if heated too rapidly. Up to 25 profiles can be stored and selected per joint type. If your assemblies include any MLCC components — which describes virtually all modern PCBs — Dynamic Soldering Profiles are a significant process quality feature.
How does the DME-1A support production traceability requirements?
The DME-1A provides LAN connectivity for remote control and real-time process data logging, USB-B for PC software integration and traceability data export, and real-time soldering graphics showing tip temperature and power delivery per joint. This supports IPC-A-610, ISO 9001, and medical device manufacturing traceability requirements where documented process parameters per assembly are required.
Can the DME-1A be integrated into a robot or automated soldering system?
Yes — the DME-1A includes RS-232 for robot remote control, allowing integration with selective soldering robots and automated assembly systems. The LAN port enables remote parameter control and monitoring from a central production management system. Contact MTE Solutions for integration guidance for your specific automation platform.
