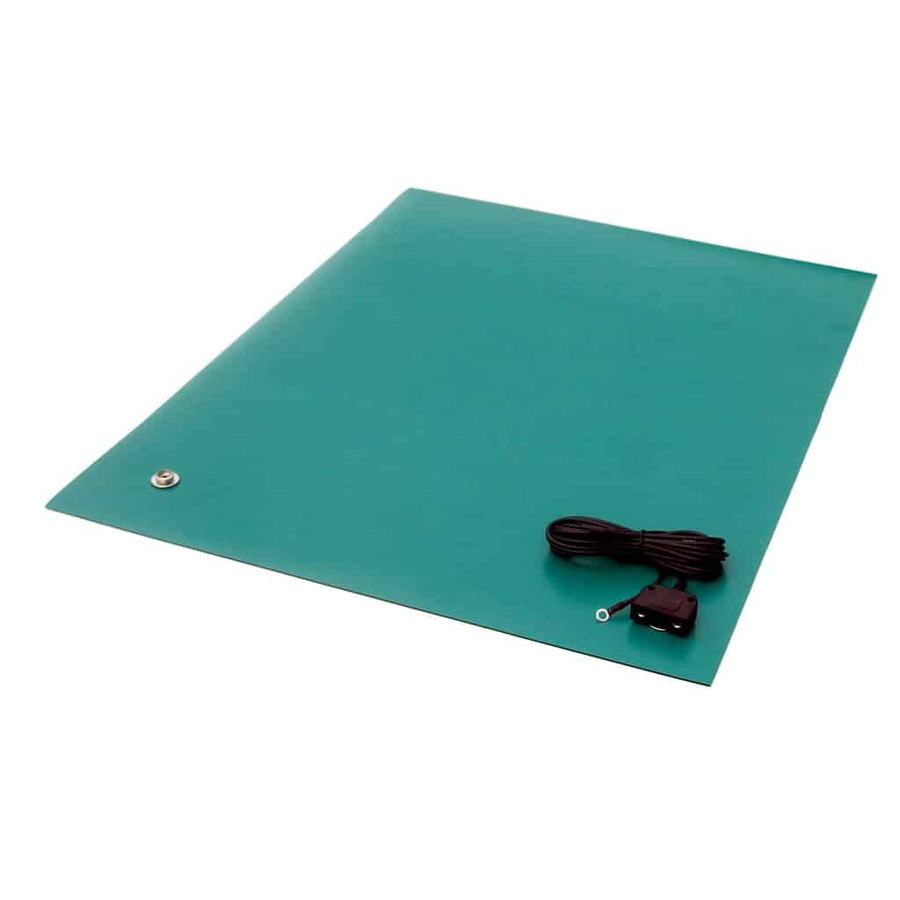

Transforming Technologies MT3060GN Rubber Table Mat, Including Hardware 30 in x 60 in x .080 in, Green
Transforming Technologies MT3060GN Two-Layer Rubber ESD Table Mat, 30 in x 60 in x 0.080 in, Green, Including Hardware
MT4500 Series Two-Layer Rubber ESD Pre-Cut Table Mat – Item Number MT3060GN
PRODUCT DESCRIPTION
The Transforming Technologies MT3060GN is a premium pre-cut two-layer NBR rubber ESD table mat engineered for electronics manufacturing workstations requiring reliable static control. At 30″ x 60″, this mat covers a full-size workbench surface and includes grounding hardware (two 10mm female snaps and a common point ground cord) for immediate installation. Constructed with a black conductive bottom layer and a static-dissipative green top layer, the MT4500 Series safely absorbs static from items placed on the surface and flows it to ground. At 0.080″ thick, it provides excellent resistance to hot solder, soldering irons, and most solvents. Independently tested and certified to ANSI/ESD S20.20 and ANSI/ESD STM4.1. Available in Green, NASA Blue, Royal Blue, and Gray.
- ESD Protection: Resistance <1.0x10⁹ ohms — reliable ESD protection for the life of the mat
- Two-Layer Construction: Conductive black bottom layer + static-dissipative colored top layer
- Includes Hardware: Two 10mm female snaps and common point ground cord
- Premium Thickness: 0.080″ thick NBR rubber for durability and surface protection
- Solvent & Heat Resistant: Withstands hot solder, soldering irons, and most solvents
- ANSI/ESD S20.20 Compliant: Independently tested and certified
- Charge Decay: 0.01 seconds
- Colors: Green, NASA Blue, Royal Blue, Gray
- Size: 30″ x 60″ (0.080″ thick)
- TECHNICAL DATA SHEET
| ITEM NUMBER | MT3060GN |
|---|---|
| MATERIAL | NBR Rubber |
| SURFACE | Smooth |
| THICKNESS | 0.080" |
| SIZE | 30" x 60" |
| RESISTANCE | 8×10⁶–10⁸ ohms (top); <1.0×10⁹ ohms |
| CHARGE DECAY | 0.01 seconds |
| COLOR | Green (also available in NASA Blue, Royal Blue, Gray) |
| HARDWARE INCLUDED | Two 10mm Female Snaps + Common Point Ground Cord |
| COMPLIANCE | ANSI/ESD S20.20, ANSI/ESD STM4.1 |
