Aven 26800B-371 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x on Post Stand with Integrated LED Light

Aven 26800B-371 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x on Post Stand with Integrated LED Light

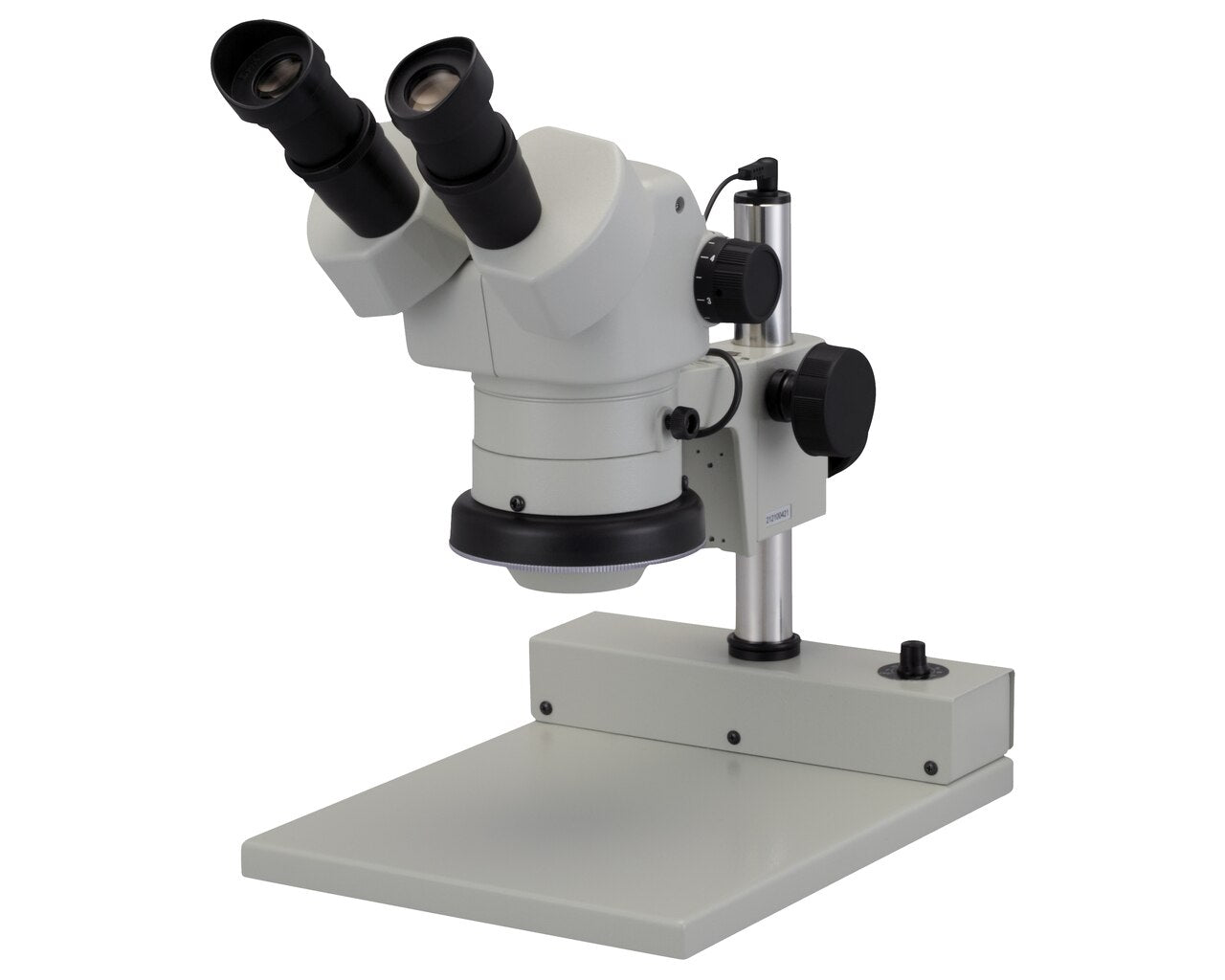

The Aven 26800B-371 SPZ-50 is a binocular stereo zoom microscope system supplied on a compact post stand with an integrated, dimmable 60-LED ring light. Its wide 6.7x–50x magnification range, Greenough optics, coarse and fine focus, and comfortable viewing geometry make it a practical choice for electronics inspection, assembly, quality control, laboratory work, and precision repair.

Key Features

• 6.7x–50x magnification: Provides a broad inspection range for larger areas and fine details.

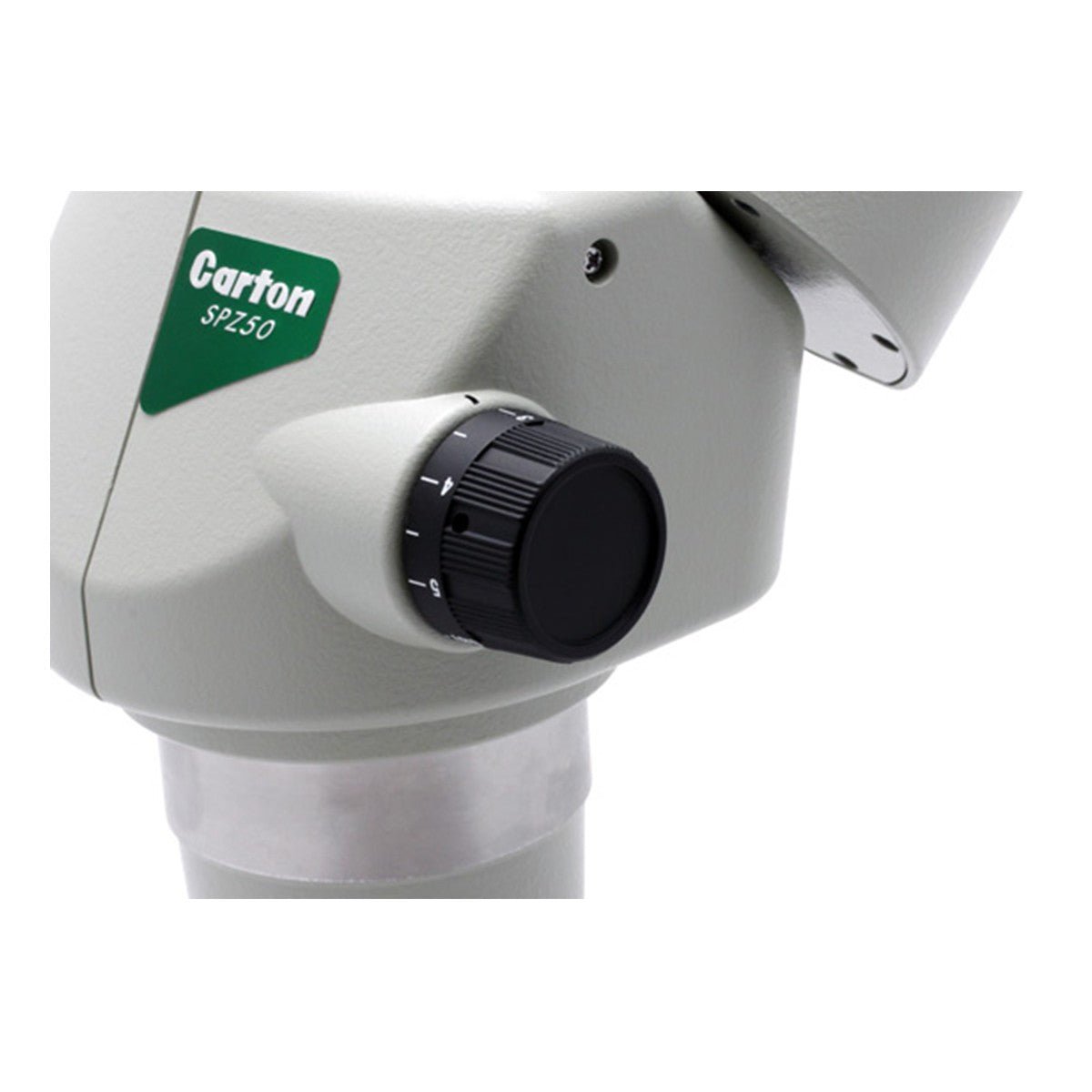

• 7.46:1 zoom ratio: Supports smooth magnification changes with graduated zoom control.
• Binocular stereo viewing: Produces clear three-dimensional images with depth perception.
• Greenough optical system: Supports contrast, definition, and lifelike color reproduction across the field of view.

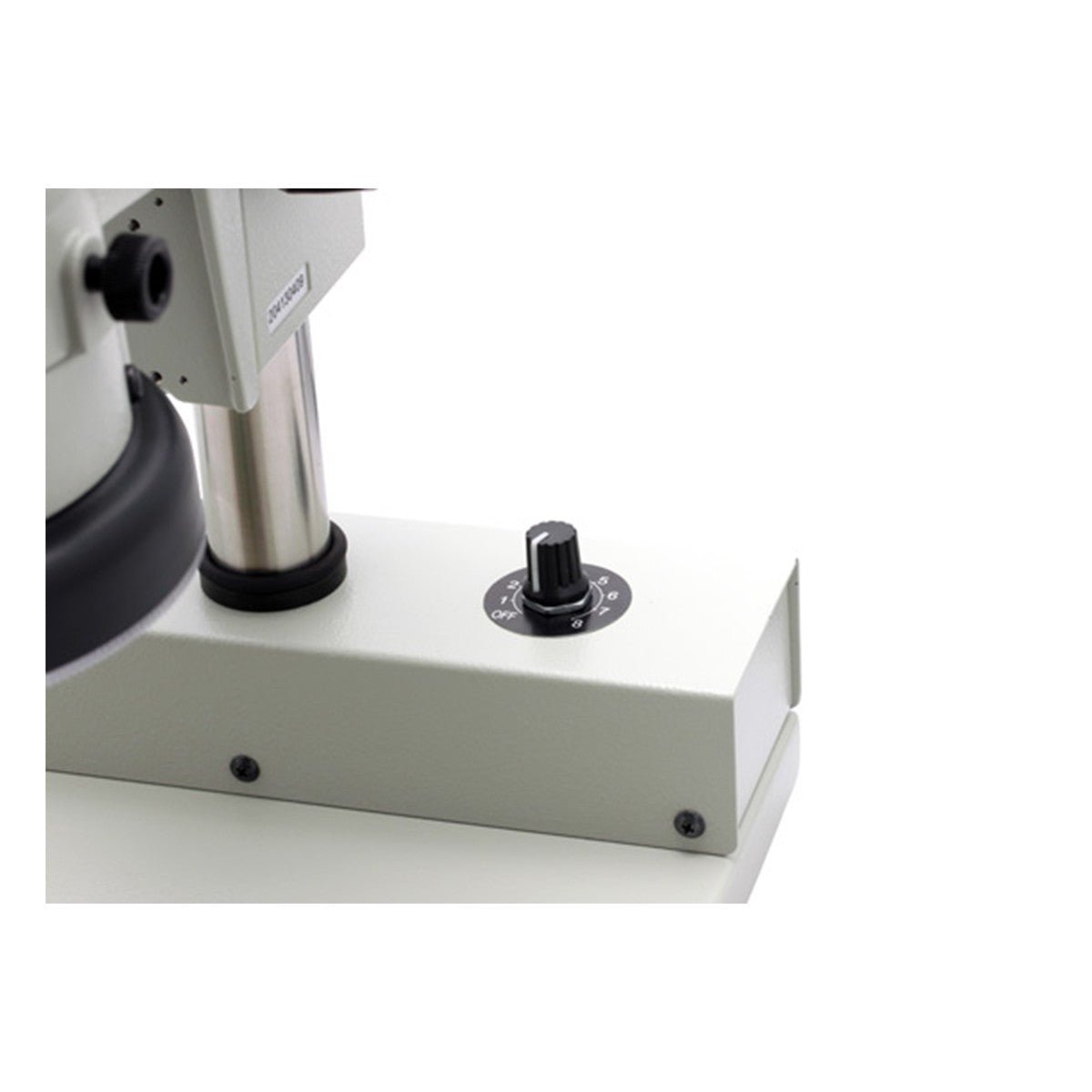

• Integrated 60-LED ring light: Built into the focus mount with dimmer control for adjustable illumination.
• Coarse and fine focus: Provides precise control during inspection and measurement work.
• Compact post stand: Includes a large 220 mm × 284 mm base while conserving bench space.

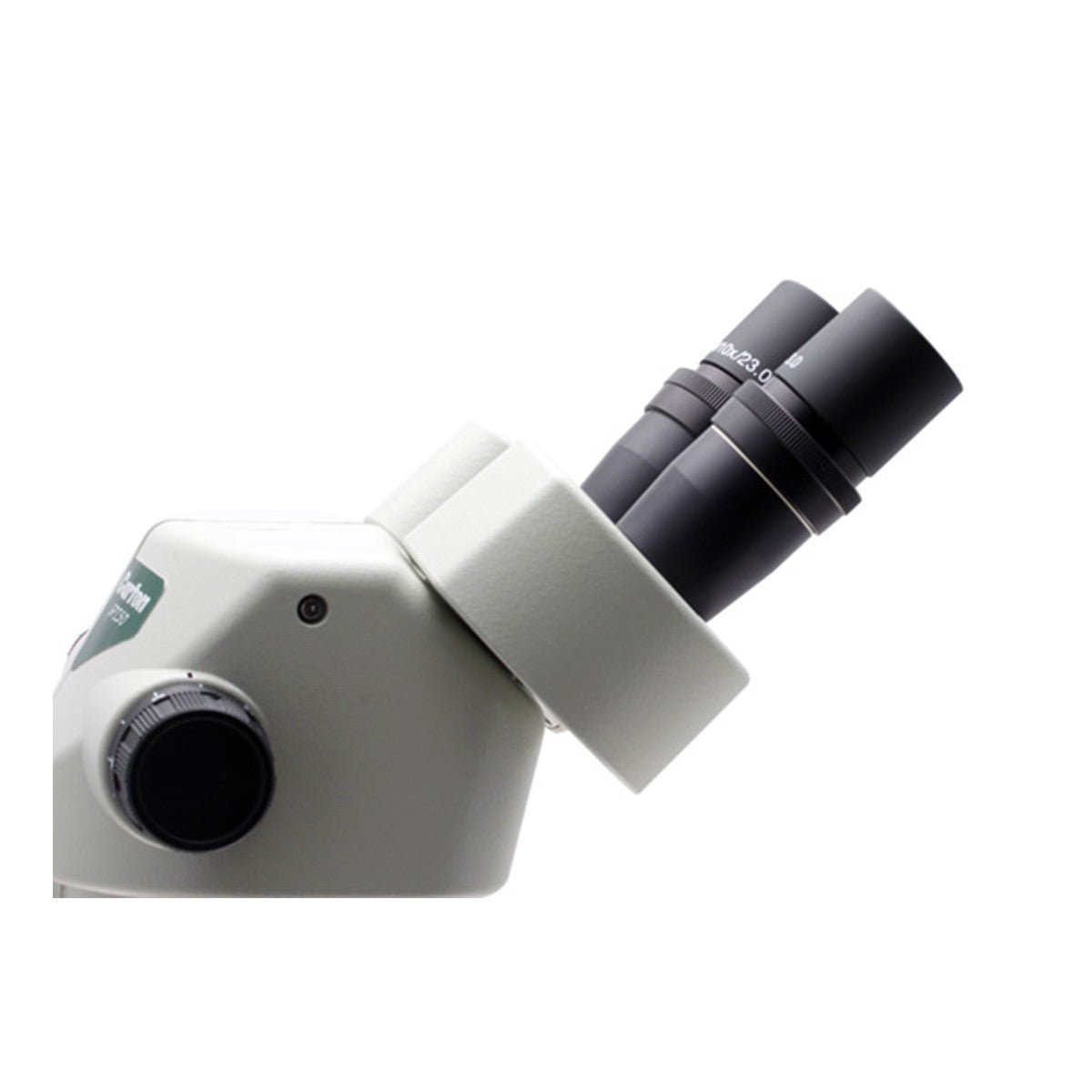

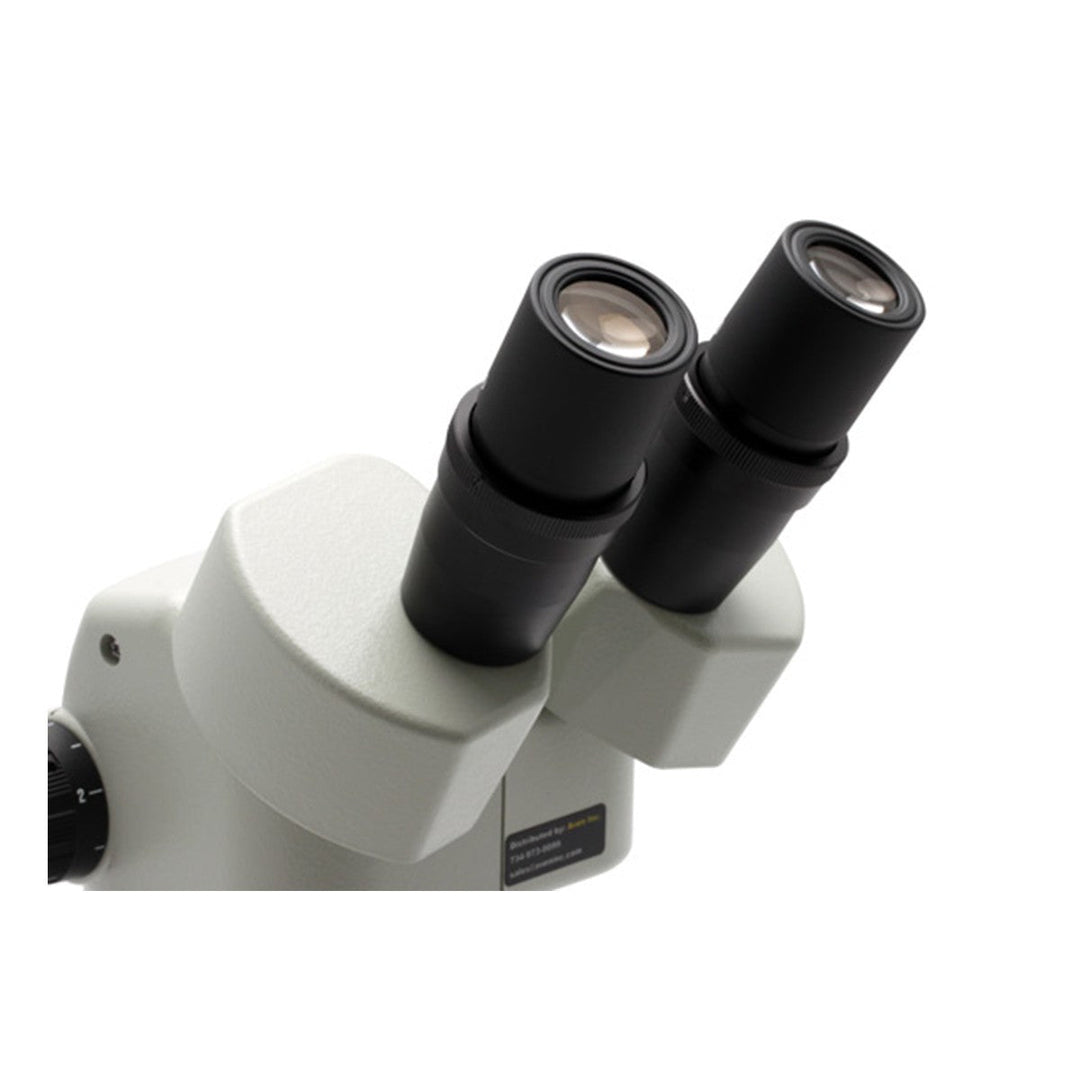

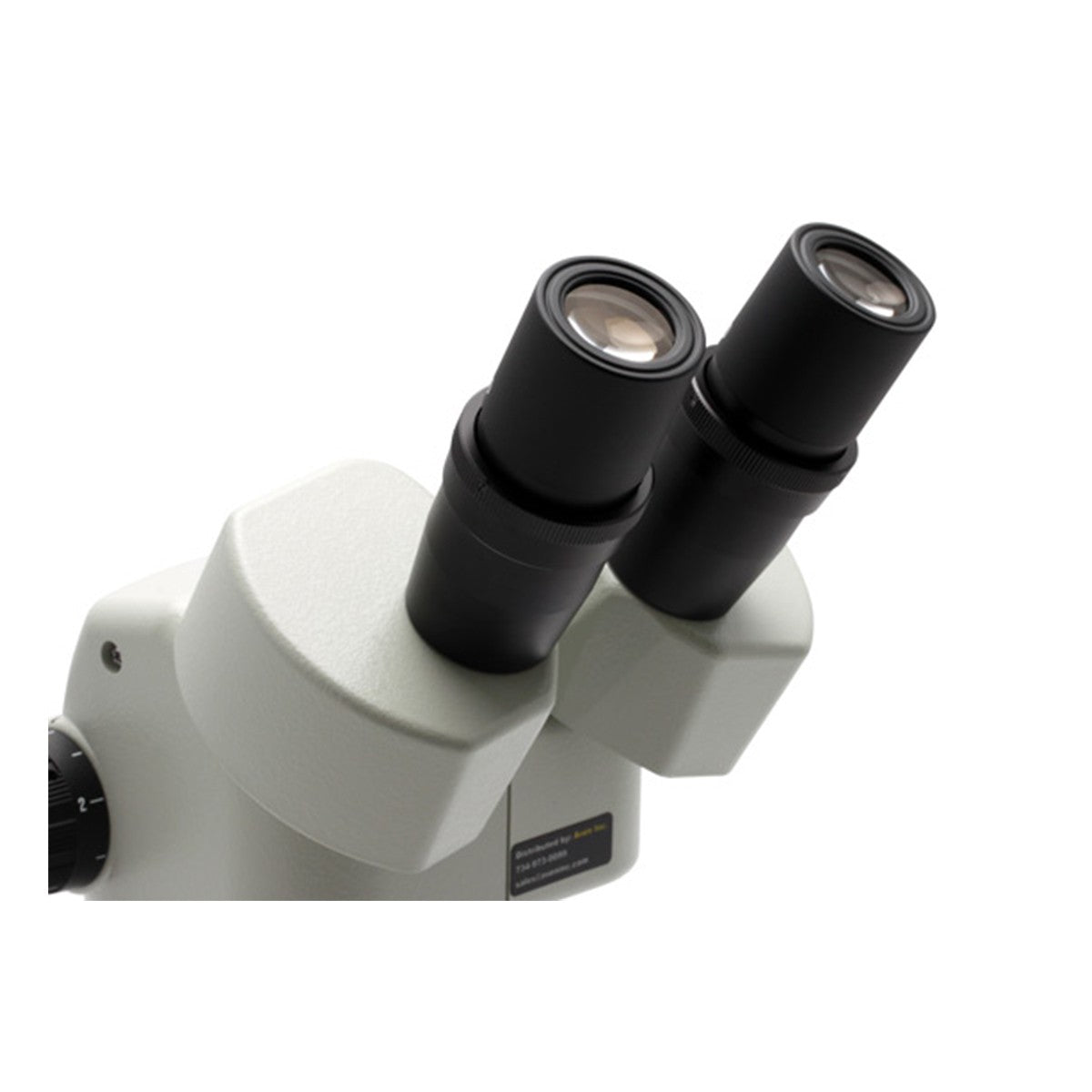

• Comfortable eyepieces: 45° inclined high-eye-point 10x wide-field eyepieces support operators who wear glasses.

Applications

Use the SPZ-50 for electronics inspection, soldering and rework support, small-part assembly, manufacturing quality control, laboratory inspection, tool making, precision repair, and detailed examination of components and surfaces. The built-in dimmable light helps operators adjust brightness for different samples and finishes.

Specifications

Optional Accessories

Optional configuration components include 0.75x, 1.6x, and 2x auxiliary lenses; 10x, 15x, and 20x eyepieces; a 10x eyepiece with scale; a protective lens cover; and a ring light adapter. Confirm the selected optical combination before ordering because auxiliary lenses and eyepieces change magnification and working distance.

Package Contents

• SPZ-50 binocular microscope body
• Stand PLED, model 26800B-512
• Built-in 60-LED illumination with dimmer
• Dust cover
• Rubber eyeguards
• Tension control pin

Frequently Asked Questions

What is the magnification range?

The supplied configuration provides 6.7x–50x magnification. Optional eyepieces and auxiliary lenses can extend the configured system up to 200x.

Is the SPZ-50 binocular or digital?

The 26800B-371 is a binocular optical stereo zoom microscope. It provides direct three-dimensional viewing through its eyepieces and is not identified as a USB or digital microscope.

Does it include a stand?

Yes. This listing includes the SPZ-50 microscope body on a post/pole stand, model 26800B-512.

Does it include illumination?

Yes. The stand includes a built-in 60-LED ring light with dimmer and intensity control.

What is the working distance?

The listed working distance is 108 mm for the supplied configuration. Auxiliary lenses can change the working distance.

Is the stand suitable for limited bench space?

The compact post stand uses a 220 mm × 284 mm base and is designed to provide stable support without taking up unnecessary bench area.

Can I change the magnification later?

Yes. Optional eyepieces and auxiliary lenses are available, but the final magnification and working distance depend on the selected optical combination.
