Aven 26800B-369 SPZ-50 Binocular Stereo Zoom Microscope, 6.75x–50x with Double Arm Boom Stand and Integrated LED Light

Aven 26800B-369 SPZ-50 Binocular Stereo Zoom Microscope, 6.75x–50x with Double Arm Boom Stand and Integrated LED Light

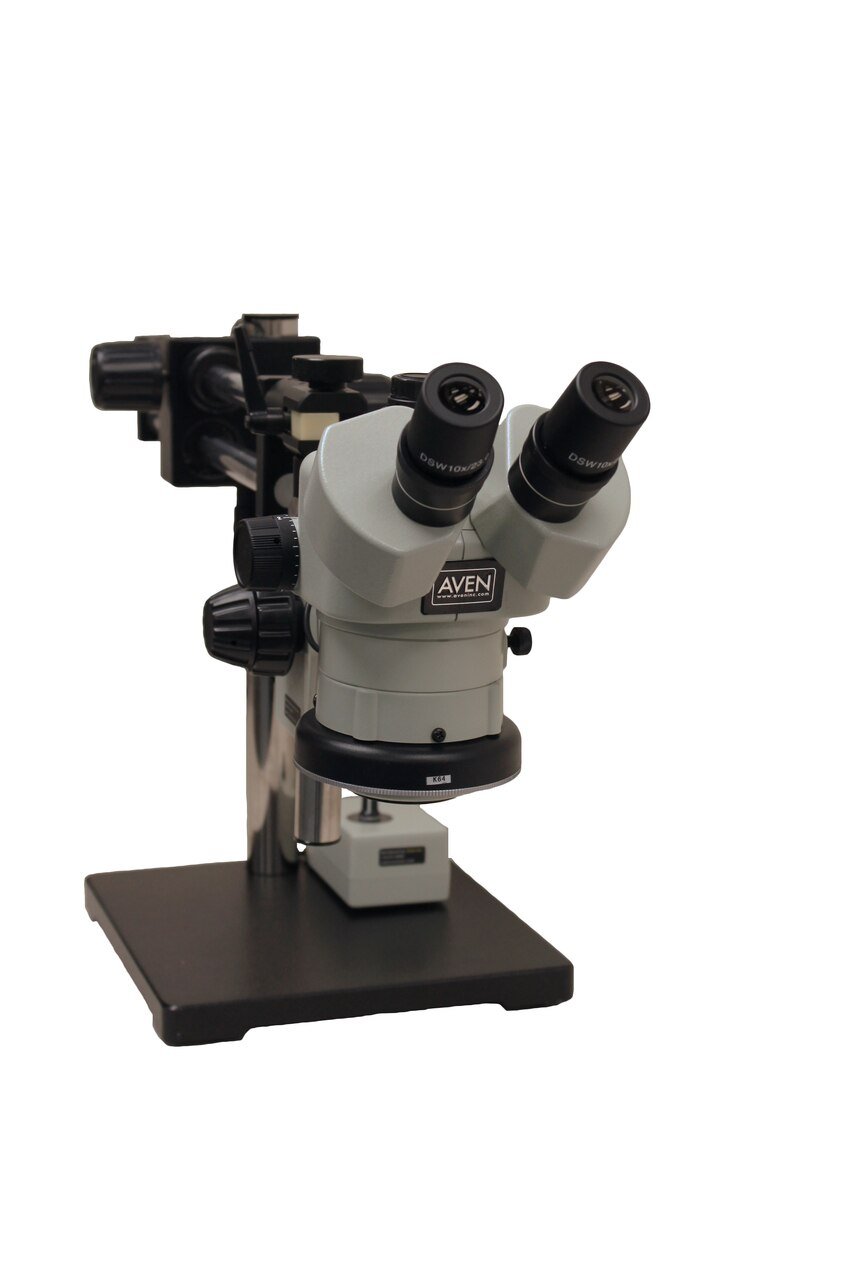

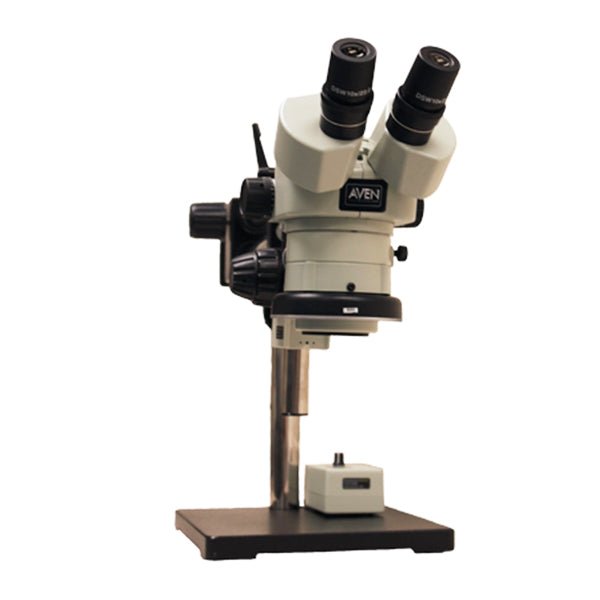

The Aven 26800B-369 is an SPZ-50 binocular stereo zoom microscope system with a 6.75x–50x magnification range, a double arm boom stand, a tiltable arbor, and an integrated LED ring light. It is built for comfortable, repeatable inspection of electronics, assemblies, manufactured parts, and other workpieces that benefit from three-dimensional stereo viewing and a generous working area.

Why Choose This SPZ-50 Microscope System?

• Binocular stereo viewing: Provides comfortable three-dimensional viewing for inspection and bench work.
• 6.75x–50x zoom range: Covers general inspection through closer examination of fine details.
• Double arm boom stand: Positions the microscope over a larger work area than a compact fixed stand.
• Tiltable arbor: Lets the operator angle the microscope for improved access and viewing comfort.
• Integrated LED ring light: Provides adjustable, shadow-reducing illumination without relying on a loose external ring light.
• Coarse and fine focus: Supports quick setup and precise image adjustment.

Applications

Use this microscope for electronics inspection, assembly, rework support, production inspection, quality control, manufacturing, laboratory work, precision repair, and detailed examination of small parts. The boom stand is especially useful when the operator needs to move the microscope across a larger work area or position it around taller assemblies.

Specifications

Optional Optical Accessories

The existing configuration information lists auxiliary lenses and alternate eyepieces as optional accessories. Confirm the selected accessory and resulting working distance before ordering for a specific magnification target.

• Auxiliary lenses: 0.75x, 1.6x, and 2x options are listed.
• Eyepiece options: 10x, 15x, and 20x options are listed.
• Additional ring light adapter and protective lens-cover options are listed.

What Is Included?

• SPZ-50 binocular stereo zoom microscope body
• Double arm boom stand with arbor
• Integrated LED ring light with focus mount
• Dust cover, rubber eye guards, and tension-control pin

Frequently Asked Questions

What is the magnification range?

The listed primary zoom range is 6.75x–50x. Optional auxiliary lenses can change the working magnification and working distance, so confirm the selected lens configuration before ordering.

Is this microscope binocular or trinocular?

The Aven 26800B-369 is a binocular microscope. The product is intended for direct stereo viewing rather than a built-in trinocular camera path.

What stand is included?

The system includes a double arm boom stand with a tiltable arbor for flexible positioning over the work area.

What type of lighting is included?

It includes an integrated 60 LED ring light with variable dimming, 5600K white light, and listed illumination up to 35,000 lux.

What is the working distance?

The listed working distance is 108 mm.

Does the microscope include a camera?

No built-in camera is identified for this binocular configuration. A separate compatible camera or documentation setup should be evaluated if image capture is required.

What type of work is this system suited to?

It is suited to electronics inspection, assembly, manufacturing inspection, quality control, laboratory work, precision repair, and detailed examination of small parts.
