SCS 150810, Scc1500 Series 8"X10'' Metal Out Shield Bag, 100 Pack

SCS SKU: 150810
SCS 150810, Scc1500 Series 8"X10&
SCS 150810, Scc1500 Series 8"X10&
SCS 150810, Scc1500 Series 8"X10&

SCS 150810, Scc1500 Series 8"X10'' Metal Out Shield Bag, 100 Pack

SCS SKU: 150810
Regular price $28.64
/
Shipping calculated at checkout.

SCS 150810, Scc1500 Series 8"X10'' Metal Out Shield Bag, 100 Pack

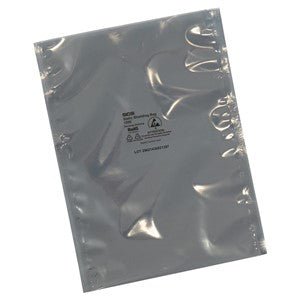

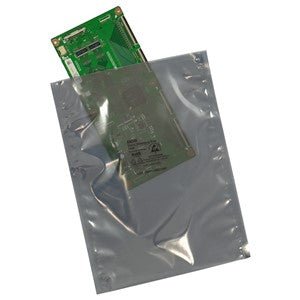

This transparent metal-out static shielding bag is designed to provide static safe packaging for the shipment and/or storage of ESD sensitive items including outside ESD protected areas. Bags are printed with an ESD protective symbol and a lot code for traceability. Open Top and ZipTop styles are available. The bags are heat sealable. SCS Metal-Out Static Shielding Bags 1500 are manufactured from a top coated metallized polyester and polyethylene laminate. The proprietary top coating is designed to protect the metal layer and quickly discharge any electrical field. Polyester dielectric, in concert with the metal layer, provides shielding for the bag contents from Electrostatic Discharge (ESD) and helps minimize the penetration of an electrical field.

  • Metal-Out Bags Required by Some Leading Hi-Tech Companies, Exterior Surface Rs 1 x 104 to < 1 x 108 ohms per ANSI/ESD STM11.11
    Metal-Out lower exterior resistance retains less electrostatic charge than Metal-In bags
  • Metal-Out Shielding Laminate 0.003” thick (3 mil)
    Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD) outside the ESD Protected Area
  • <10 nJ Discharge Shielding Energy Penetration Test per ANSI/ESD STM11.31
    Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
  • Dissipative Inner Surfaces Rs 1 x 104 to < 1 x 1011 ohms per ANSI/ESD STM11.11 meets Static Control Bag ANSI/ESD S11.4 Level 3
    ElectroStatic Charges removed when placed on a grounded surface or handled by a grounded operator
  • Printed with ESD Protective Symbol and Lot Code Information
    Meets the requirements of ANSI/ESD S541 for quality control purposes
  • 40% Light Transmission
    Allows for identification of bag contents.
  • OpenTop and ZipTop styles are available
  • Lead-free RoHS 2, REACH and Conflict Minerals Compliant
  • 1500 Series - Metal-Out Static Shielding Bag
