Teknipure TC2PL1-18E TekniClean® ESD polyester knit carbon fiber cleanroom wipers, 18"x18"
Teknipure TC2PL1-18E TekniClean® ESD Polyester Knit Carbon Fiber Cleanroom Wiper, 18"x18"
The Teknipure TC2PL1-18E TekniClean® is a dry ESD-safe polyester knit cleanroom wiper with integrated carbon fiber filaments and sealed edges, in the large 18"x18" format for ISO Class 3–8 environments. The carbon fiber filaments provide continuous static dissipation across the wiper surface, making it safe for use in ESD Protected Areas where standard polyester knit wipers could generate or accumulate static charge. Sealed edges minimize fiber shedding and particle generation. Packaged in ESD Static Shield resealable bags to protect the wipers from static during storage and transport. The 18" format is preferred for wiping large equipment surfaces, cleanroom walls, floors, and workstation surfaces where a smaller wiper would require excessive strokes.
Sold in cases of 250 wipers (25 wipers/bag, 10 bags/case).
Specifications
| SKU | TC2PL1-18E |
|---|---|
| Brand | Teknipure |
| Product Line | TekniClean® ESD |
| Construction | Polyester knit with integrated carbon fiber filaments |
| Edge Treatment | Sealed edges |
| ESD Safe | Yes — carbon fiber filaments provide static dissipation |
| Color | Gray/Black (carbon fiber) |
| Size | 18 in x 18 in (45.7 cm x 45.7 cm) |

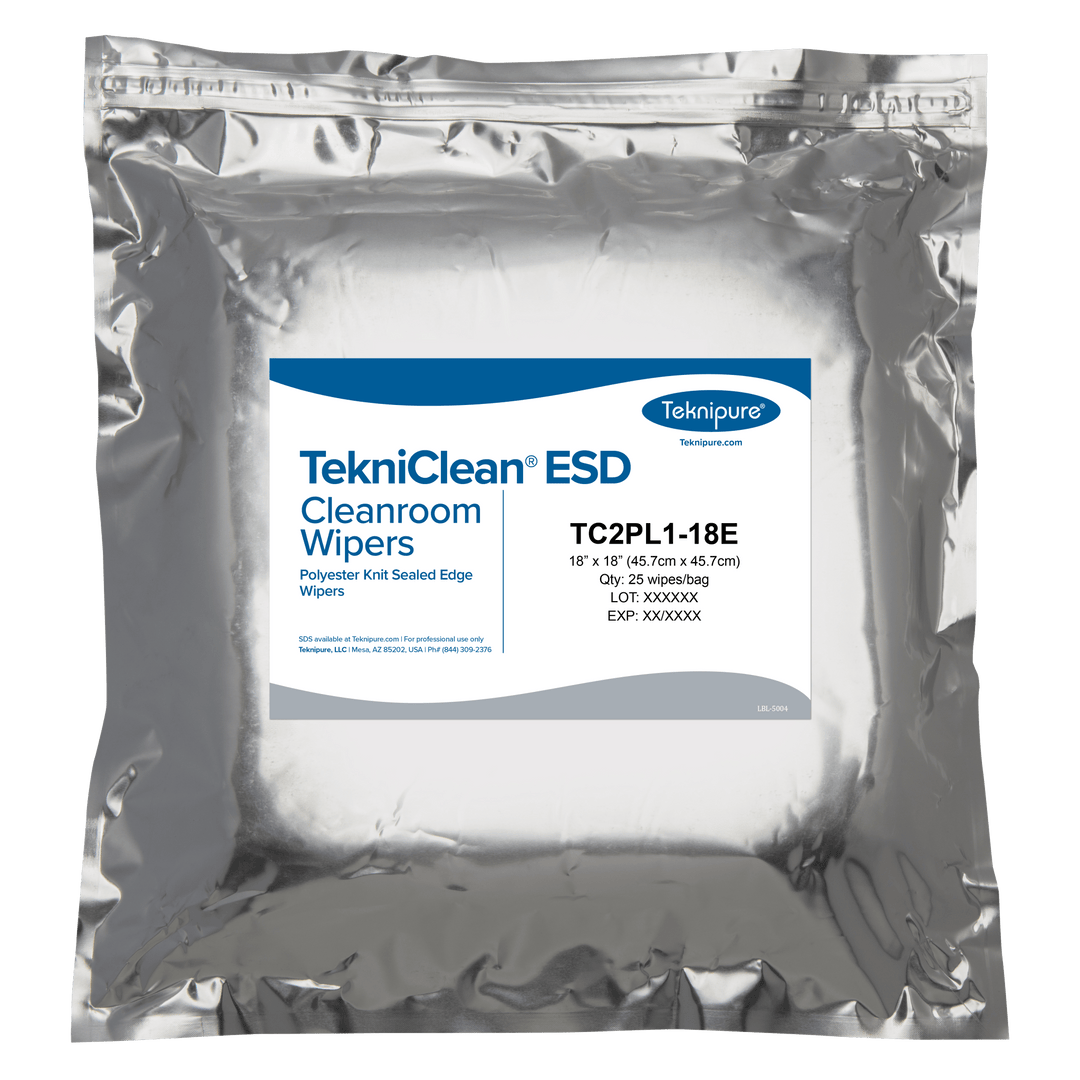

| Packaging | 25 wipers/bag, 10 bags/case, 250 wipers/case — ESD Static Shield resealable bags |
| Cleanroom Rating | ISO Class 3–8 |
| Sterility | Non-sterile (dry) |
| Application | Large surface ESD-safe wiping, equipment wipedowns, wall and floor cleaning, workstation surfaces in EPAs |
| Industries | Semiconductor, microelectronics, pharmaceutical, medical device, aerospace/defense |
Frequently Asked Questions
What makes the TC2PL1-18E ESD safe?
The TC2PL1-18E incorporates carbon fiber filaments woven into the polyester knit construction. Carbon fiber is electrically conductive, providing a continuous path for static charge dissipation across the wiper surface. This prevents the triboelectric charge buildup that occurs when standard polyester wipers are rubbed against surfaces — a critical concern in EPAs where static discharge can damage sensitive electronic components. The ESD Static Shield packaging also protects the wipers from static exposure during storage.
When should I use the 18" ESD wiper instead of the 9" or 12" sizes?
The 18"x18" format is best suited for cleaning large flat surfaces in ESD-sensitive environments — equipment exteriors, cleanroom walls, floors, workstation surfaces, and pass-through chambers. The larger format reduces the number of wipes needed per area and minimizes the risk of missed spots on large surfaces. For component-level or precision ESD cleaning tasks, the 9" (TC2PL1-99E) or 12" (TC2PL1-12E) formats are more appropriate.
What is the difference between TekniClean ESD wipers and standard TekniClean polyester knit wipers?
Standard TekniClean® polyester knit wipers (TC2PU series) are insulative and can generate static charge during use — making them unsuitable for ESD-sensitive applications. The TekniClean® ESD series (TC2PL1-E) adds carbon fiber filaments to the knit construction, converting the wiper from insulative to static-dissipative. Both series share the same sealed-edge construction and ISO Class 3–8 cleanroom rating; the ESD version is required whenever the wiper will be used in an EPA or near ESD-sensitive components.
Are these wipers compatible with IPA and cleanroom disinfectants?
Yes. TekniClean® ESD polyester knit wipers are compatible with isopropyl alcohol (IPA), sterile water, hydrogen peroxide, quaternary ammonium disinfectants, and most common cleanroom cleaning solutions. The carbon fiber filaments do not affect chemical compatibility. Always verify compatibility with your specific chemistry before use in critical applications.
