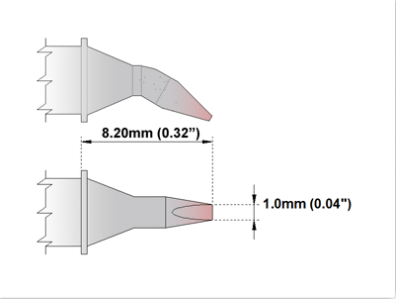

Thermaltronics M Series 700 Deg. Standard Soldering Tip for TMT-9000S, Chisel, Bent 30 Deg., 1.0mm (0.04")

M7CB224 Thermaltronics soldering tip chisel bent 30° 1.0mm can be used with the following soldering systems:

• Metcal® MX-500
• Metcal® MX-5000
• Metcal® MX-5200
• Thermaltronics TMT-9000S-1
• Thermaltronics TMT9000S-2

M7CB224 Thermaltronics soldering tip uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.

Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

Features:

• Uses Curie point technology
• Quick and safe to use
• No calibration required
• Colour coded band for easy recognition
• The temperature range for 700 Series tips is 350ºC- 398ºC
• For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2
• Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
• Not a Metcal copy tip
• Other temperature ranges available, please see M6CB224 and M8CB224
• All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
