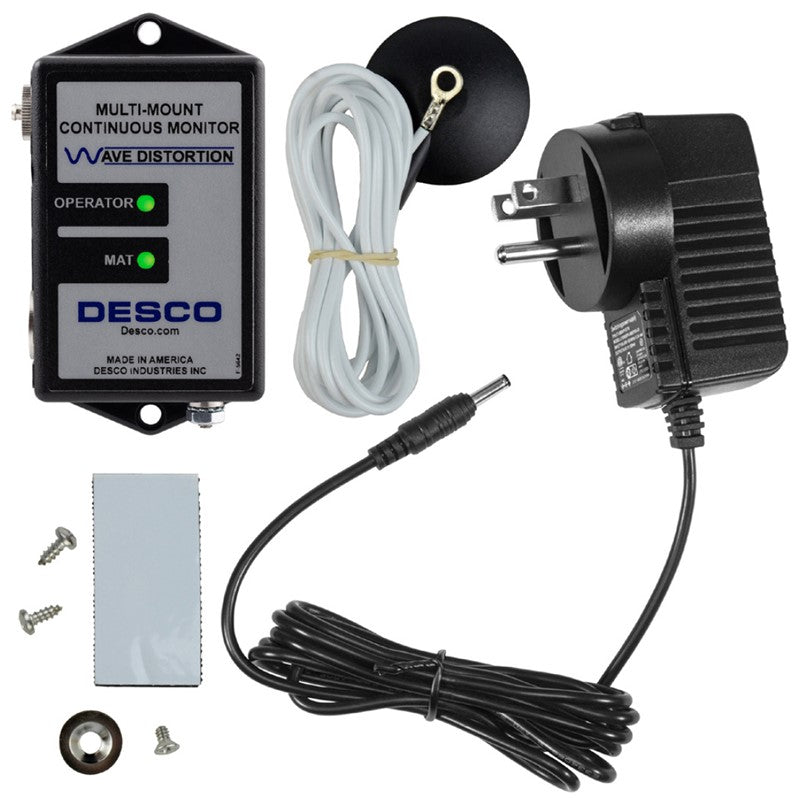

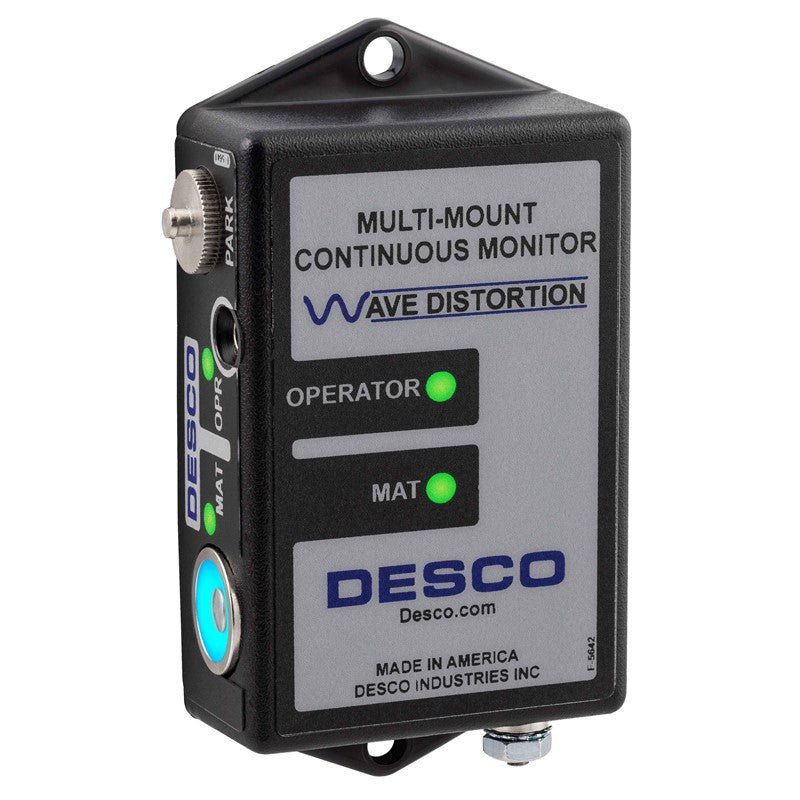

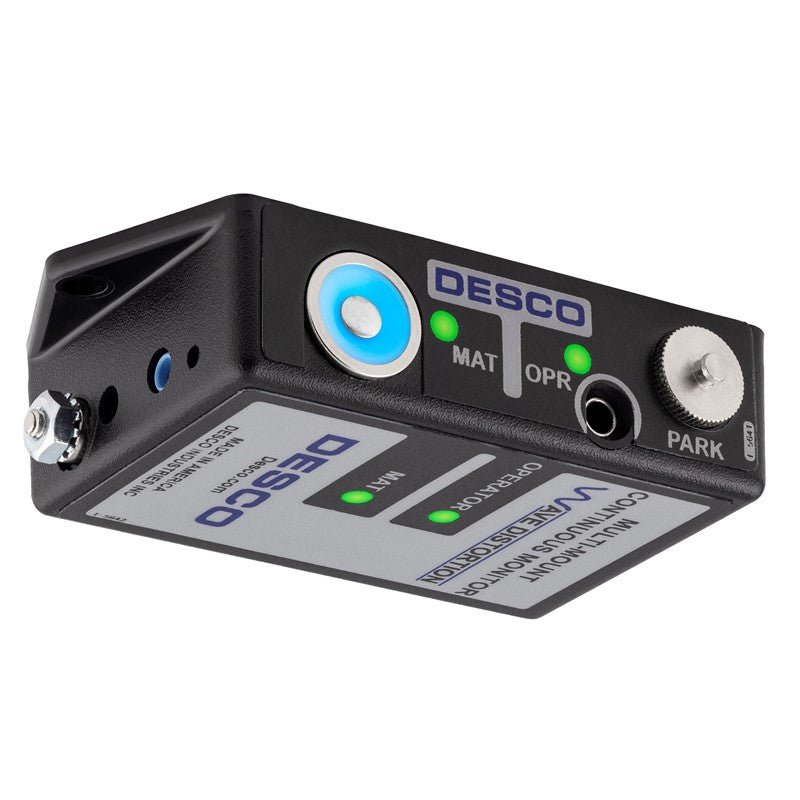

Desco 19337 - Multi-Mount Continuous Monitor w/Universal Plug

  • Single Workstation Continuous Monitor

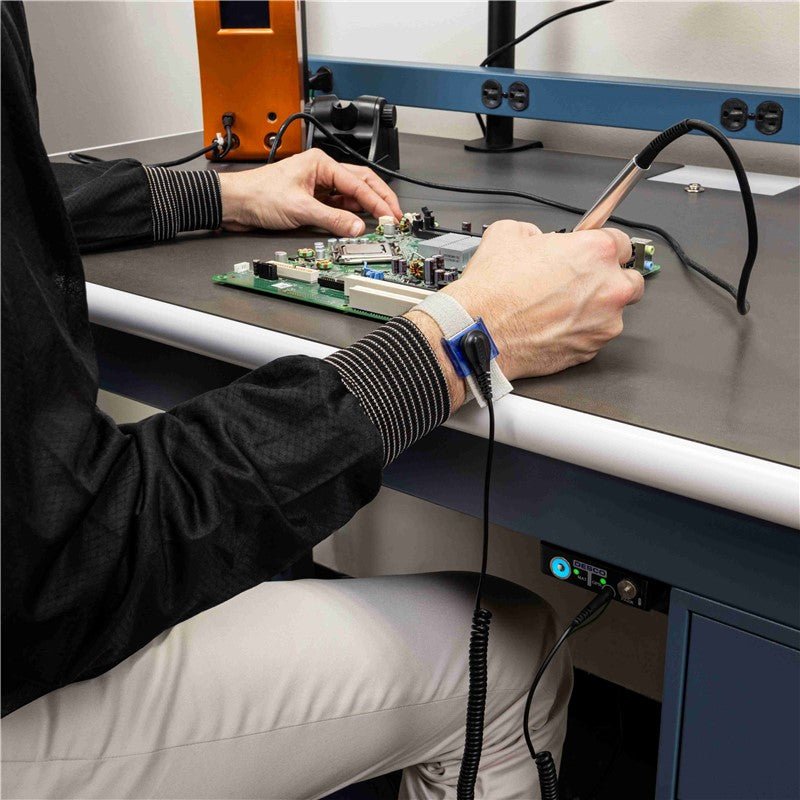

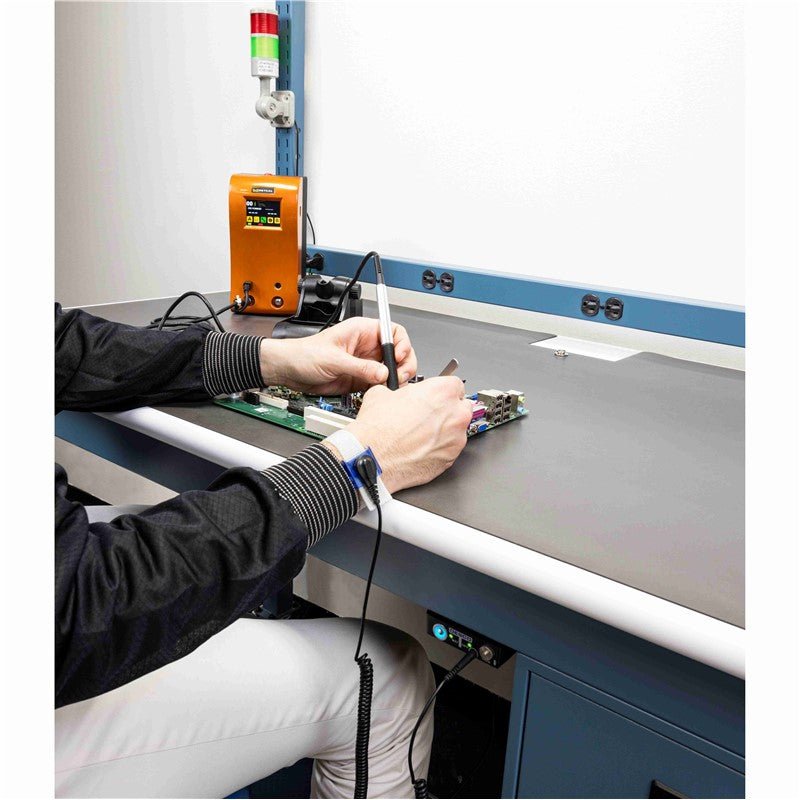

    Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
  • NEW Park Delay Timer and ParkSnap™
    Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
  • NEW Light Tower Compatibility
    Connects with the 19332 Light Tower accessory
  • Wave Distortion Technology
    Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
  • Mat Monitor Switch
    Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
  • Audible Alarm Adjustment
    Sets the audible alarm volume from loud to louder

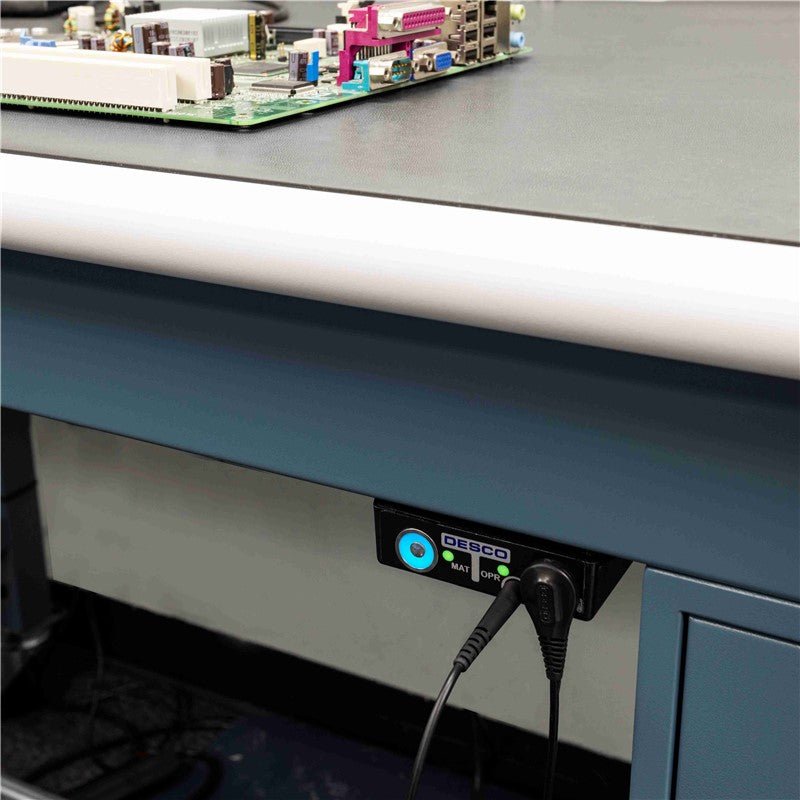

  • Enclosure with Mounting Tabs

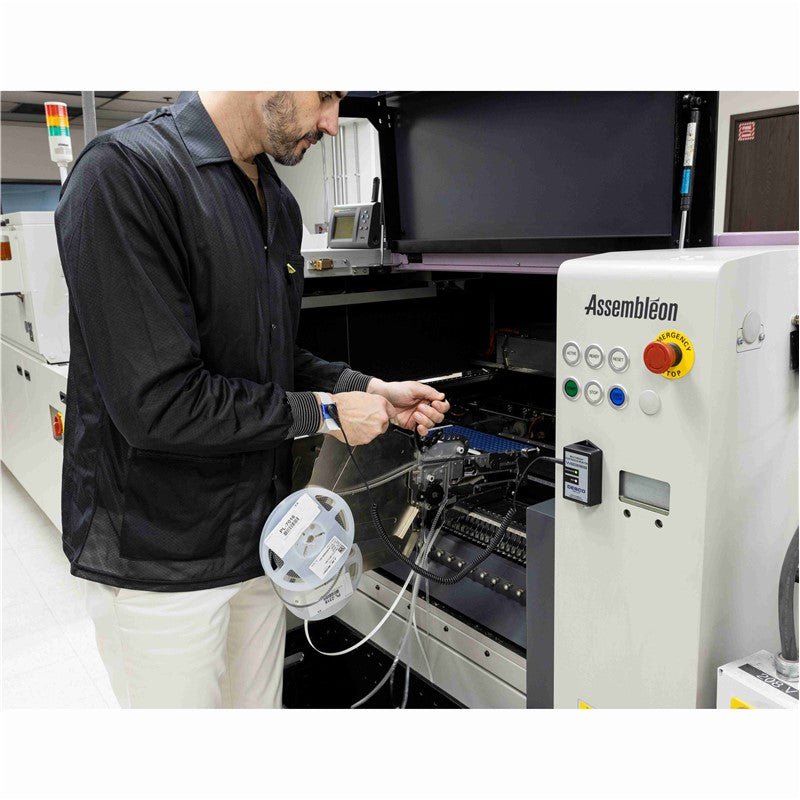

    Installs in workbench and equipment environments
  • Single-Wire Impedance Design
    Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
  • 1.2 Volt Operator Test Voltage
    Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
  • <50 Millisecond Alarm Response Time
    Identifies failures and intermittencies
  • Calibration Verification
    Use the DDesco 98221 Wave Distortion Monitor Verification Tester
  • to check the test limits of Wave Distortion Monitors without removing them from their workstations
  • NIST Calibrated –
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
  • 100-240VAC Power Adapter with IEC C14 Style Inlet
    Connects to a power cord with a IEC C13 outlet connector
  • Made in the United States of America
    This item is made and stocked in Chino, CA

*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
