Jensen Global JG25-0.5 in, 25 Gauge IT Series Dispensing Tip, Bag of 1000
Jensen Global JG25-0.5 in, 25 Gauge IT Series Dispensing Tip, Bag of 1000

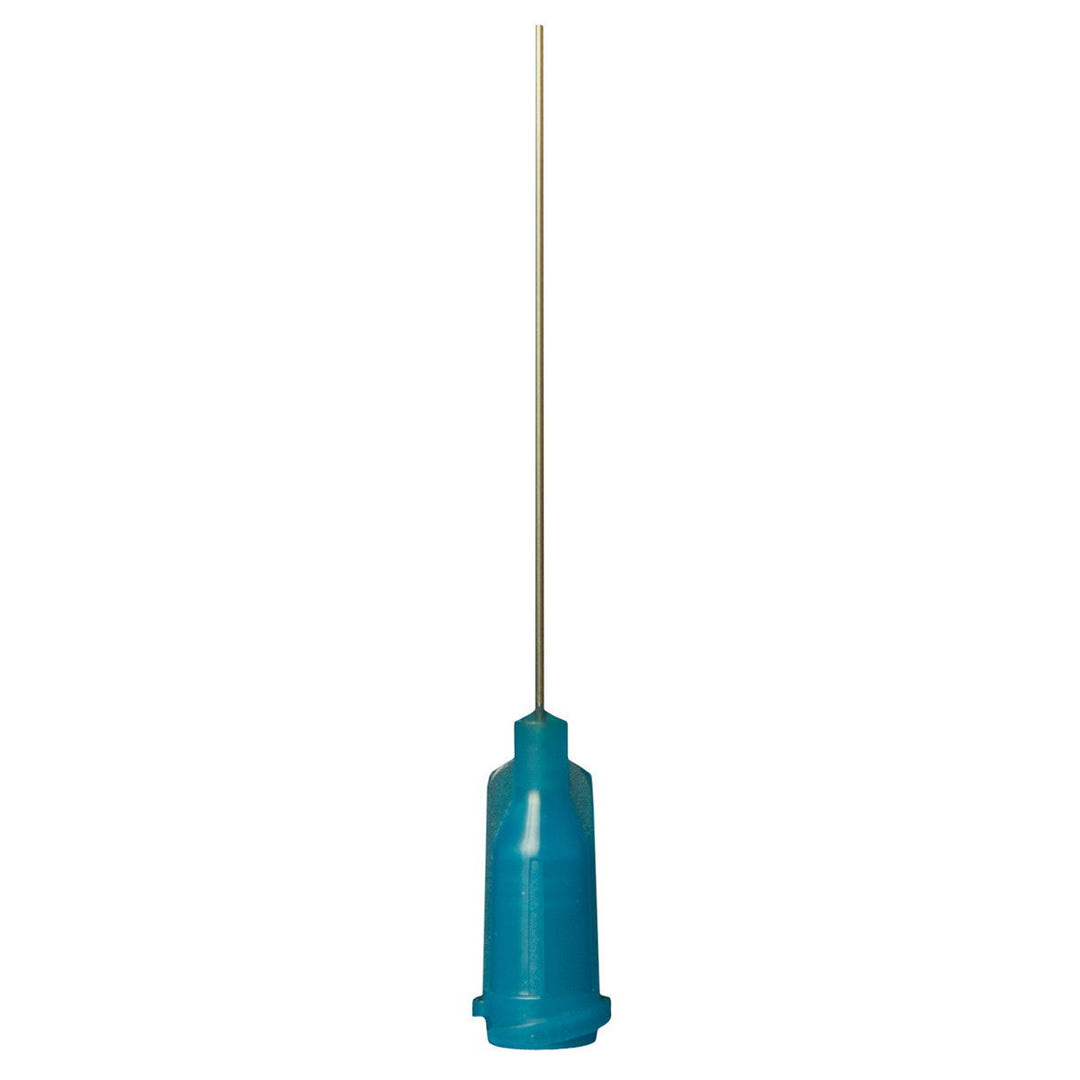

The Jensen Global JG25-0.5 is a 25-gauge, straight blunt dispensing tip with a 0.5-inch stainless steel cannula and blue polypropylene Luer Lock hub. Supplied in a bag of 1,000, it provides a defined fluid outlet for industrial dispensing setups where the tip geometry, material and deposit requirements have been evaluated together.
The manufacturer specifies an inside diameter of 0.012 inch (0.305 mm) and an outside diameter of 0.020 inch (0.508 mm). The double-helix threaded hub is UV-bonded to a 304 stainless steel cannula. Select by the full part number and dimensions rather than gauge or hub color alone.
Key Features
- 25-gauge straight, blunt-ended industrial dispensing tip.
- 0.5-inch cannula length for applications that do not require a longer reach.
- 304 stainless steel cannula with a blue polypropylene hub.
- Double-helix threaded Luer Lock connection.
- Clear UV adhesive bond between hub and cannula.
- IT Series color identification and bulk bag of 1,000 tips.
Technical Specifications
| Manufacturer | Jensen Global |
|---|---|
| Part number | JG25-0.5 |
| Series | IT Series |
| Gauge | 25 |
| Style | Straight, blunt end |
| Cannula length | 0.5 in |
| Inside diameter | 0.012 in (0.305 mm), manufacturer specification |
| Outside diameter | 0.020 in (0.508 mm), manufacturer specification |
| Cannula material | 304 stainless steel |
| Hub material | Polypropylene |
| Hub color | Blue |
| Connection | Double-helix threaded Luer Lock hub |
| Construction | UV-bonded cannula and hub |
| Package quantity | 1,000 tips per bag |
Best Uses / Applications
Consider this configuration for industrial adhesive or assembly-fluid dispensing trials where a short, narrow straight outlet can reach the target location. Electronics assembly, component bonding and precision bench dispensing are potential application contexts, subject to validation with the actual fluid and equipment.
Confirm compatibility with every wetted material, including the hub and bonding adhesive. Check fluid viscosity, particle loading, working life and required deposit before selecting a 25-gauge tip. This product is not a promise of a particular dot size, flow rate or compatibility with every adhesive.
Compare Tip Configurations
| Configuration | Selection consideration |
|---|---|
| JG25-0.5 straight stainless steel | 0.5-inch cannula, 0.012-inch bore and 1,000-tip bag; evaluate for the required access and fluid path. |
| Longer straight tip | May provide additional reach; re-evaluate clearance and dispensing response rather than assuming identical performance. |
| Tapered plastic tip | A different internal geometry to evaluate for thicker fluids; confirm outlet dimensions and body clearance. |
| Flexible plastic tip | A different contact material and stiffness; confirm compatibility, positioning and surface interaction. |
Ordering and Setup Notes
JG25-0.5 is the bag-of-1,000 configuration. The manufacturer also lists JG25-0.5X as a 0.5-inch box of 50. These are different ordering codes and package quantities, even though the nominal tip size matches.
Confirm that the dispensing equipment accepts the specified connection and follow its installation and operating limits. Inspect the outlet before use, replace damaged or blocked tips according to the process instructions, and do not improvise metal-cannula cutting. Validate the deposit after a tip or process change.
Frequently Asked Questions
What is the difference between JG25-0.5 and JG25-0.5X?
Jensen lists JG25-0.5 as a 0.5-inch tip supplied in a bag of 1,000. JG25-0.5X is the corresponding box-of-50 ordering code. This listing is for JG25-0.5, bag of 1,000.
What are the inside and outside diameters?
The manufacturer specifies an inside diameter of 0.012 inch (0.305 mm) and an outside diameter of 0.020 inch (0.508 mm) for this 25-gauge IT Series tip.
Is the tip sharp or blunt?
It is a straight blunt dispensing tip, not a sharp injection needle. Handle it according to your industrial process safety procedures.
Does 25 gauge determine the size of the dispensed dot?
No. Gauge and bore describe the tip, not a guaranteed deposit. Fluid properties, dispense settings, stand-off, motion and the receiving surface also affect the result.
Will it fit every Luer dispensing system?
The tip has a double-helix threaded Luer Lock hub. Confirm mating compatibility and operating limits with the equipment manufacturer rather than assuming every connection or pressure rating is interchangeable.
Can it dispense any adhesive or filled paste?
No universal compatibility is established. Evaluate the formulation against the stainless steel cannula, polypropylene hub, bonding adhesive and bore. Follow the fluid supplier’s handling guidance and test the actual process.
Does a blue hub identify the same opening across all brands?
Do not use color alone to approve a substitute. This Jensen IT Series 25-gauge tip has a blue hub, but the full part number and manufacturer dimensions should govern selection.
