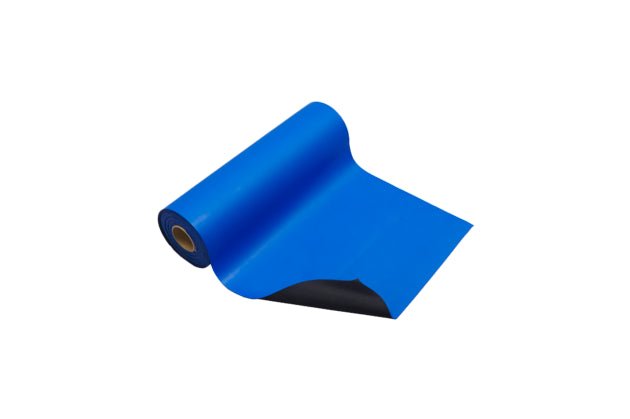

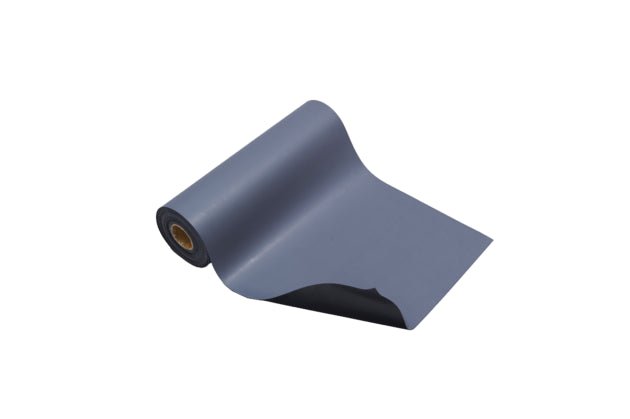

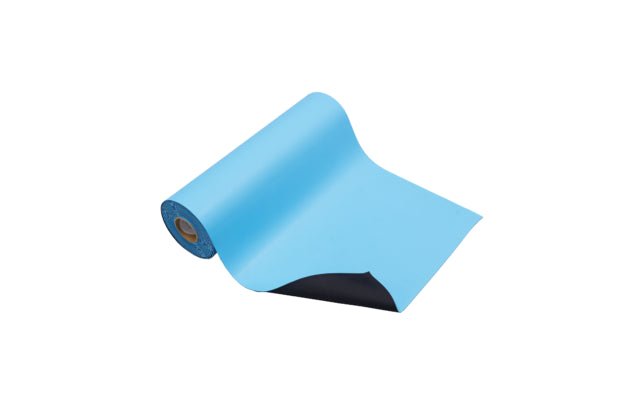

Name: ACL 2440, Dualmat Static Dissipative Mat, 24 in X 40 ft Roll, Multiple Colors Available
Brand: ACL Staticide
SKU: 8385DGYR2440
Price: 998.33 USD
Availability: InStock

ACL 2440, Dualmat Static Dissipative Mat, 24" X 40' Roll, Multiple Colors Available

Color

Dark Gray

Green

Light Blue

Royal Blue

Price

Quantity

Minimum quantity allowed is .

Maximum quantity allowed is .

The product can be bought in quantity increments of .

ACL 2440, Dualmat Static Dissipative Mat, 24 in X 40 ft Roll, Multiple Colors Available

Dualmat is a 2-ply chemically cross-linked rubber material that is inherently dissipative on the top side and conductive on the bottom side. The material will not exudate, outgas, or lose its electrical properties. The soft textured surface offers comfortable protection against static discharge, parts slippage, and damage from UV lights. The durable material is resistant against solder, heat, and most common solvents.

Using no vinyl monomers or DOP, the Dualmat ensures conformity to personal and environmental safety standards. Fully compliant to REACH, Dualmat does not use candidates on the SvHC in its manufacture.

Dualmat is available in rolls, pre-cut, and custom-sized mats. Rolls are 40’ in width of 24”. Royal blue and dark gray rolls, pre-cut and custom-sized mats are available in two thicknesses - .06” and .08”.

Top side resistance measures 10⁶ – 10⁸ ohms
Bottom side resistance measures less than 5x10e5 ohms
Electricals are warranted for the lifetime of the mat
Compliant to ANSI / ESDA S20.20
Two layers; conductive bottom, dissipative top
Static decay of .05 seconds
Embossed surface
UV additives provide color stability

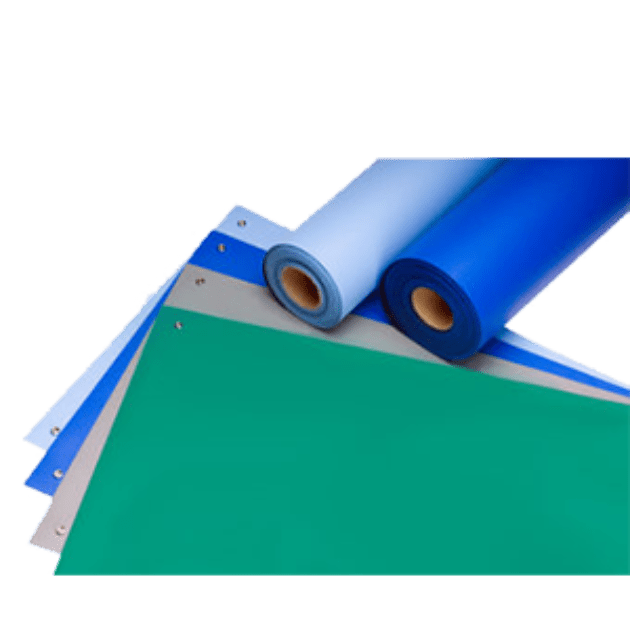

Available in four colors: light blue, dark gray, royal blue, and green
Pre-cut mats include two 10mm female snaps
Custom cut sizes available
Thickness; .080" (2mm) available in all colors
Thickness; 0.06" (1.5mm) available in Royal Blue and Dark Gray

Technical Data Sheet
