Chip Quik PA0001C, SOIC-8 to DIP-8 SMT Adapter (1.27 mm pitch, 150/200 mil body) Compact Series
Chip Quik PA0001C, SOIC-8 to DIP-8 SMT Adapter (1.27 mm pitch, 150/200 mil body) Compact Series
Lead-Free / RoHS 3 Compliant / REACH Compliant
Description

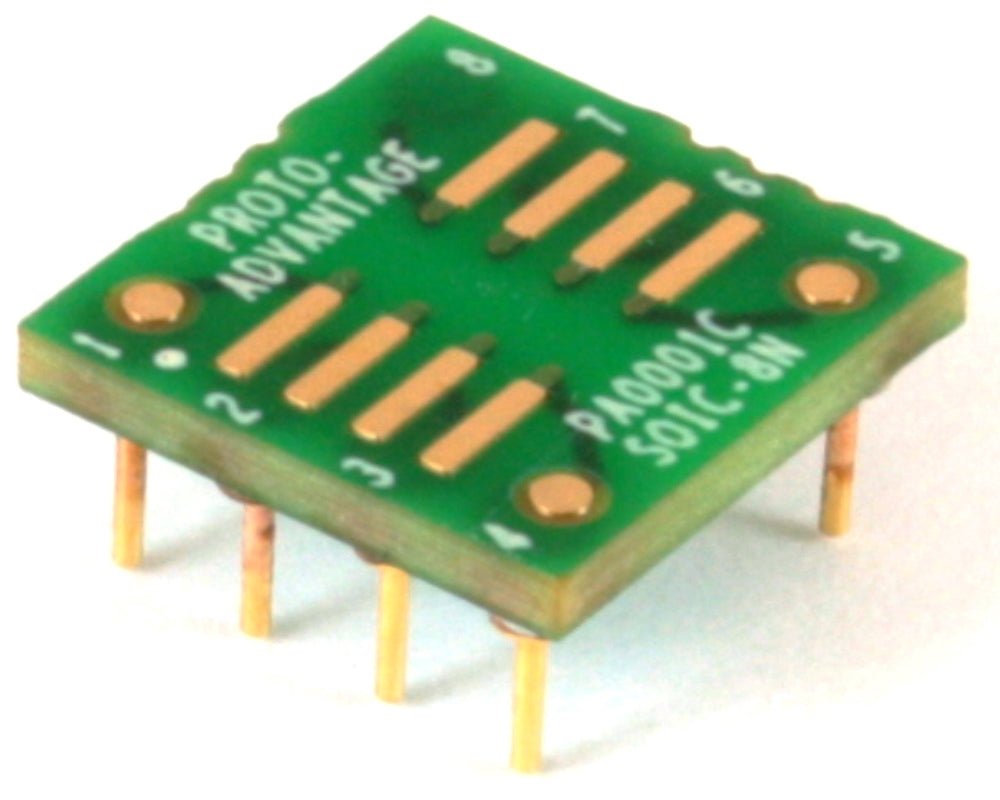

SOIC-8 (150 mil / 200 mil body width, 1.27 mm pin pitch) to DIP-8 (300 mil body width, 0.1" pin pitch) surface mount adapter Compact Series.
PCB dimensions: 400 mils x 400 mils x 62.5 mils (10.16 mm x 10.16 mm x 1.6 mm).
PCB construction: FR-4 UL94V-0. PCB operating temperature range: -40C to +130C. PCB reflow maximum temperature: +260C. PCB Assembly standard: IPC-A-610 Class II.
Compact Adapter Series Continuous Current Rating: 0.6A at 10C Temperature Rise, 1.1A at 40C Temperature Rise.
Bottom side machine pins come pre-installed. They are gold plated (1um gold over 50um nickel) 0.46mm diameter, 3mm long. Pins are installed using surface mount with partial through hole technology for excellent strength and positional accuracy.
