Aven Tools 26100-261, Mighty Cam Eidos 4K 8.29M C-Mount Camera with 11.6" Screen
Aven Tools 26100-261, Mighty Cam Eidos 4K, 8.29MP C-Mount Camera with 11.6" Integrated Screen

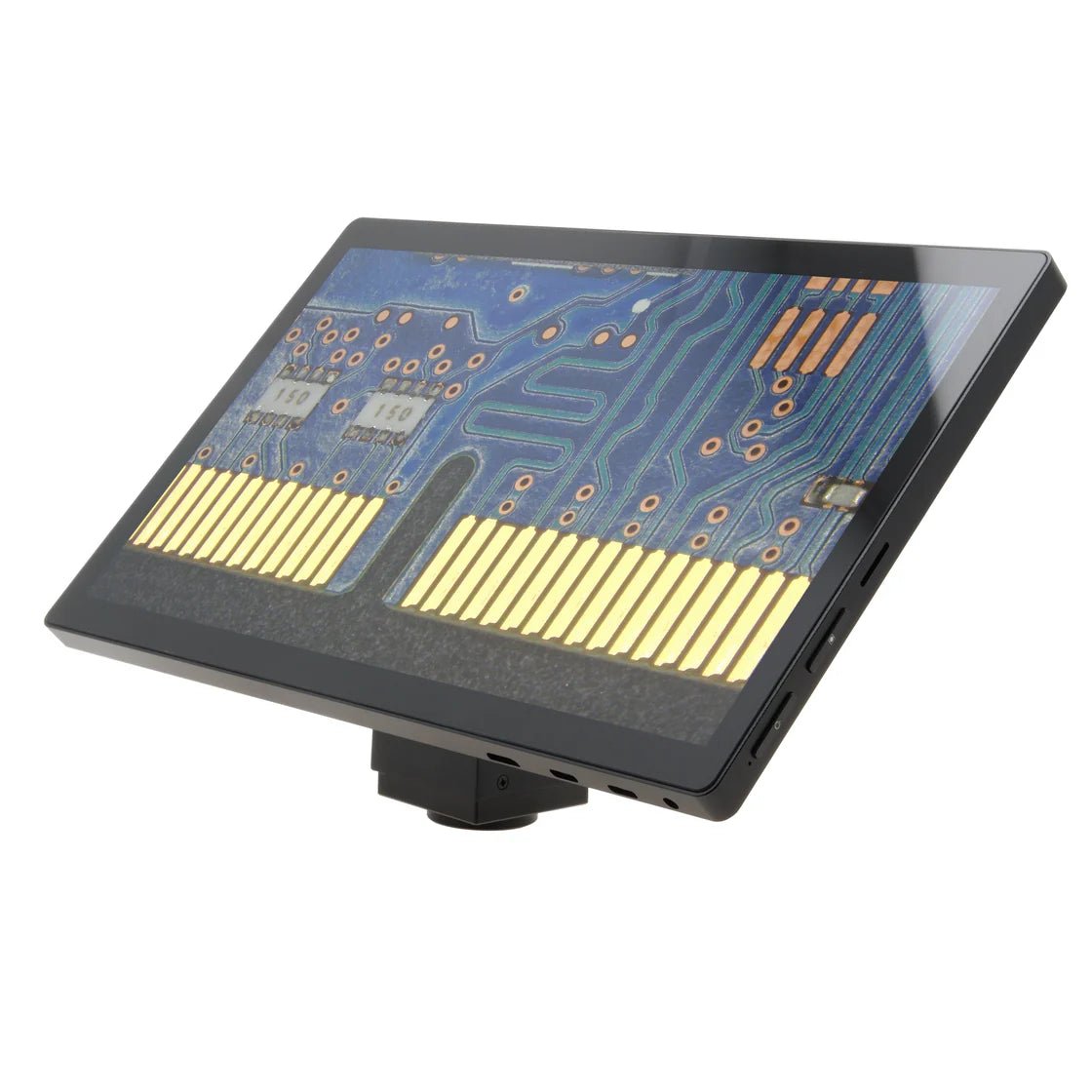

The Aven Mighty Cam Eidos 4K is an all-in-one 4K UHD imaging system featuring an 8.29MP CMOS sensor (1/1.8") delivering 3840 × 2160 resolution at 30 FPS. With an integrated 11.6" tilting LCD monitor, built-in measurement software, HDMI output, and USB image/video save — no PC required. Compatible with C-mount trinocular microscopes and C/CS video lenses for precision inspection, quality control, and production applications.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 26100-261 |
| Manufacturer | Aven Tools |
| Sensor | 8.29MP CMOS, 1/1.8" format |
| Resolution | 4K UHD — 3840 × 2160 pixels |
| Frame Rate | 30 FPS |
| Monitor | 11.6" integrated LCD, tilting |
| Lens Mount | C-mount |
| Lens Compatibility | C-mount trinocular microscopes, C/CS video lenses |
| Video Output | HDMI (for external monitor) |
| Image/Video Storage | USB storage |
| Measurement Software | Built-in — no PC required |
| Monitor Tilt | Yes — adjustable to optimal viewing angle |
Key Features & Benefits
- 4K UHD Resolution — 3840 × 2160 @ 30 FPS for exceptional sharpness on micro solder joints, fine-pitch components, and precision assemblies
- 8.29MP CMOS Sensor — 1/1.8" format delivers lifelike color accuracy and contrast for critical inspection work

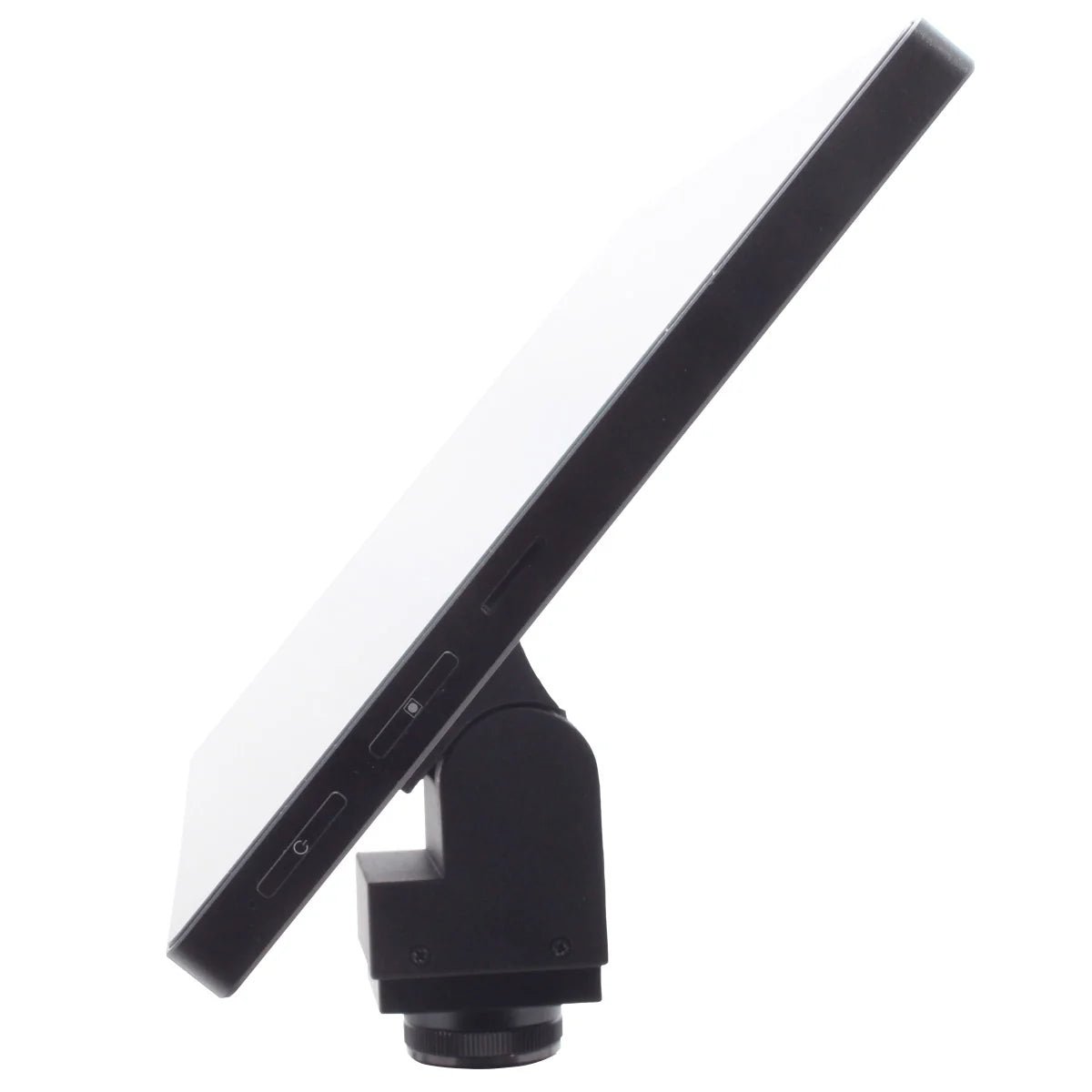

- Integrated 11.6" Tilting Monitor — All-in-one system eliminates the need for a separate display; monitor tilts to optimal viewing angle

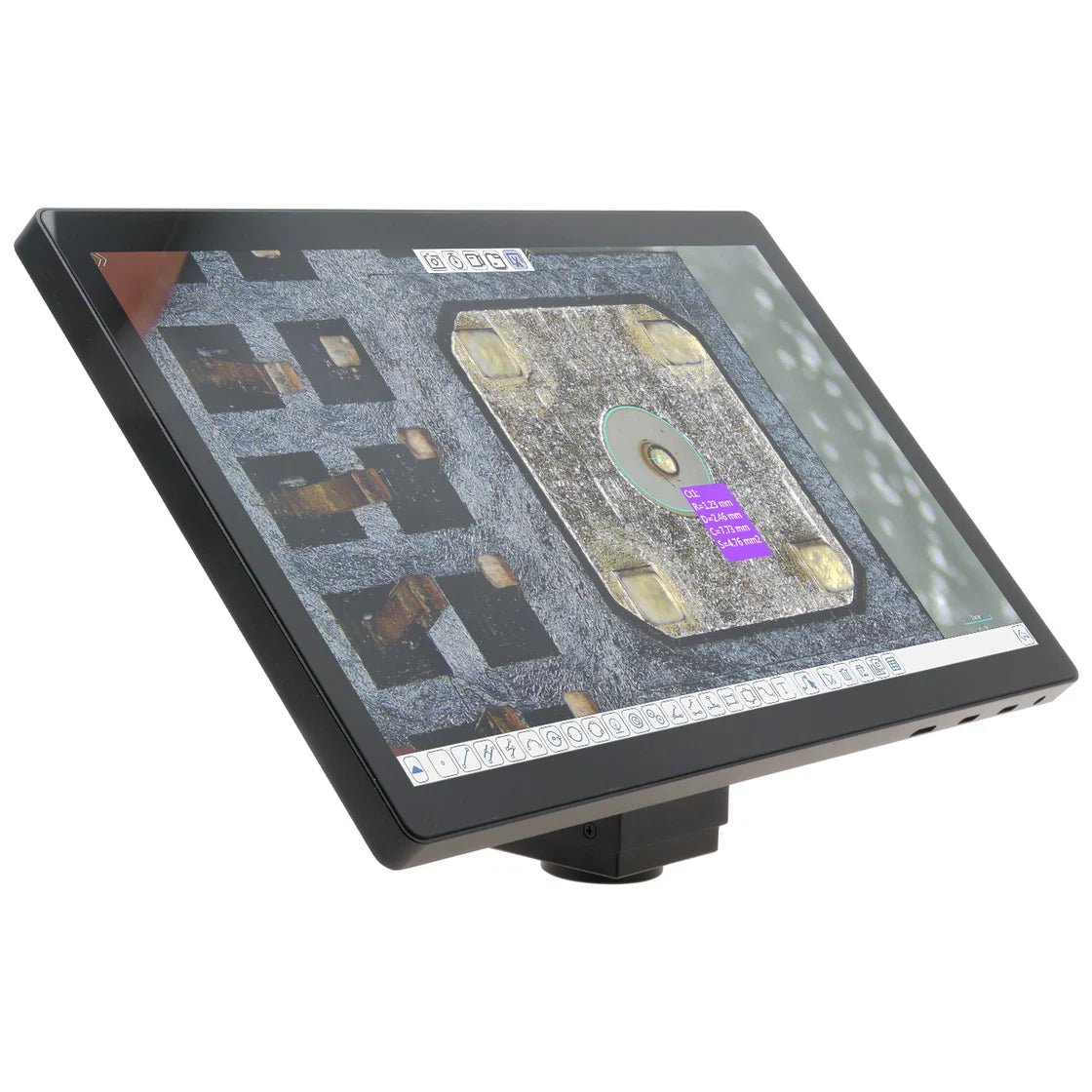

- Built-In Measurement Software — On-screen measurement without a PC — measure dimensions directly on the live 4K image
- HDMI Output — Connect to an external monitor or display for team viewing or documentation
- USB Image & Video Save — Capture and store high-resolution images and video directly to USB storage
- No PC Required — Fully standalone operation reduces setup complexity and IT dependencies
- Reduces Eye Strain & Fatigue — Large monitor viewing eliminates eyepiece fatigue during extended inspection sessions
Typical Applications
- PCB and SMT solder joint inspection
- Precision assembly and quality control
- Electronics production and rework verification
- Medical device inspection and documentation
- Aerospace component inspection
- Research, development, and educational imaging
Frequently Asked Questions
Does the Aven 26100-261 require a computer?
No — it is a fully standalone system with an integrated 11.6" monitor and built-in measurement software. Images and video are saved directly to USB storage. HDMI output allows connection to an external display if needed.
What lenses is this camera compatible with?
It uses a C-mount interface and is compatible with C-mount trinocular microscopes and C/CS video lenses. Contact MTE Solutions for compatible lens and stand options.
What is the resolution and frame rate?
4K UHD — 3840 × 2160 pixels at 30 FPS, captured by an 8.29MP CMOS sensor in a 1/1.8" format.
How does the Eidos 4K compare to the Eidos 5M (26100-260)?
The 26100-261 Eidos 4K upgrades to an 8.29MP sensor and 4K UHD resolution vs. the 5MP 1080p sensor in the 26100-260 Eidos 5M — delivering significantly higher image detail for demanding inspection applications.
Can I connect this to an external monitor?
Yes — the HDMI output allows connection to an external monitor or display for team viewing, training, or documentation purposes.
