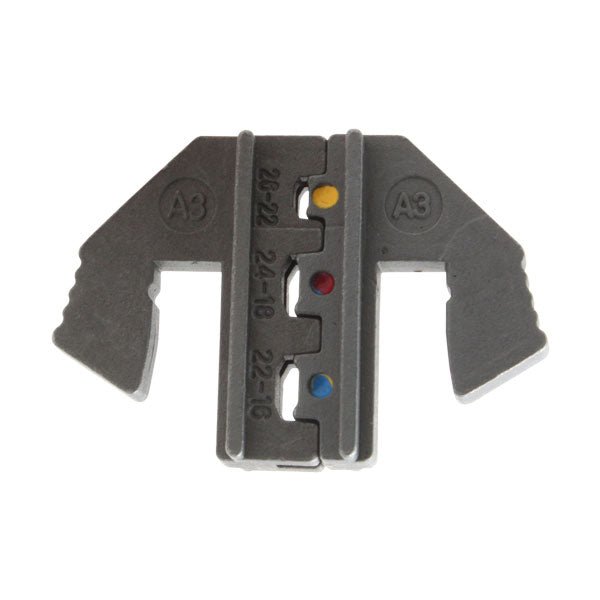

Aven Tools 10189D, Crimping Die A3 For Miniature Insulated Terminals

Replacement die for Aven tool frame 10195. Die has color code for easy size identification and can be easily inserted withoutany tools. This die is designed for crimping miniature insulated terminals AWG 26-22/24-18/22-16 (0.1-0.5/0.25-1/0.5-1.5mm2)

  • Jaw Type: A3
  • AWG: 26-22/24-18/22-16

Easy Die Replacement

The crimping dies are easy to replace.  Simply slide the die in or out of the frame by hand.  The dies snap into place with no tools required.

Features

  • Replacement die for Aven Crimping Frame 10195
  • For crimping miniature insulated terminals AWG 26-22/24-18/22-16 (0.1-0.5/0.25-1/0.5-1.5mm2)
  • Size are color coded on the die for easy identification
  • Made from specially hardened alloy steel for durability
  • Provides uniform and secure crimps
  • Die easily slides into the frame, no tools required to install

Specs

Crimping Die A3 | AWG 26-22/24-18/22-16
Wire AWG: 26-22/24-18/22-16
Weight .2
Die Jaw Type A3
Dimensions 50.8 x 12.1 x 34.1mm
