Aven Tools 10170-KIT, 6 Piece Crimping Tool Set

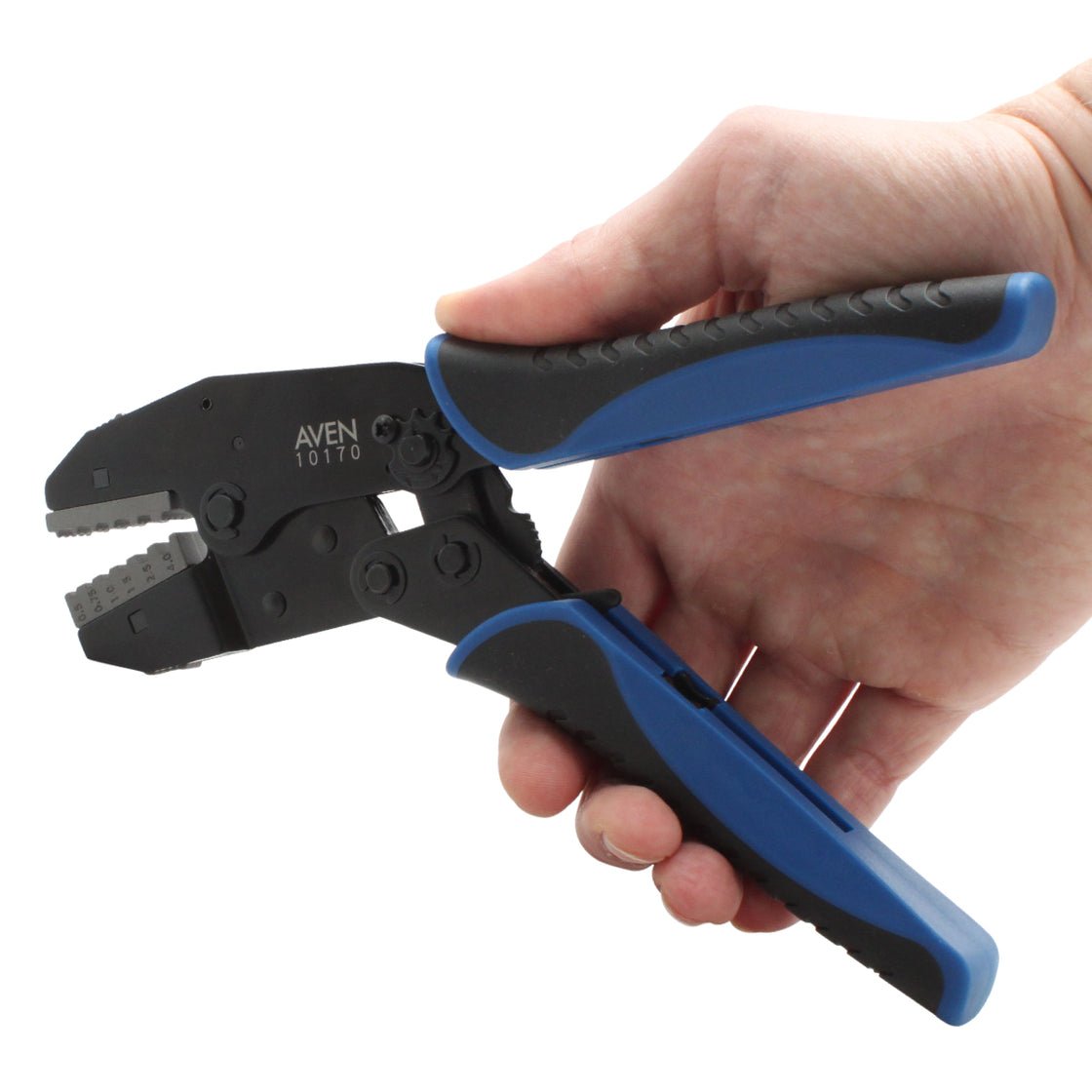

This high-precision wire ferrule crimper features a built-in ratchet that applies correct pressure to ensure a complete crimp every time and the safety release function allows you to stop a faulty crimp before the crimping cycle is complete. The precisely milled, hardened steel dies have individual crimping slots. The dies can easily be changed by sliding them out of the frame – no tools required.   Aven offers a variety of replacement dies to accommodate a wide range of wire gauges.  The durable rubberized grips make this tool comfortable and easy to use.

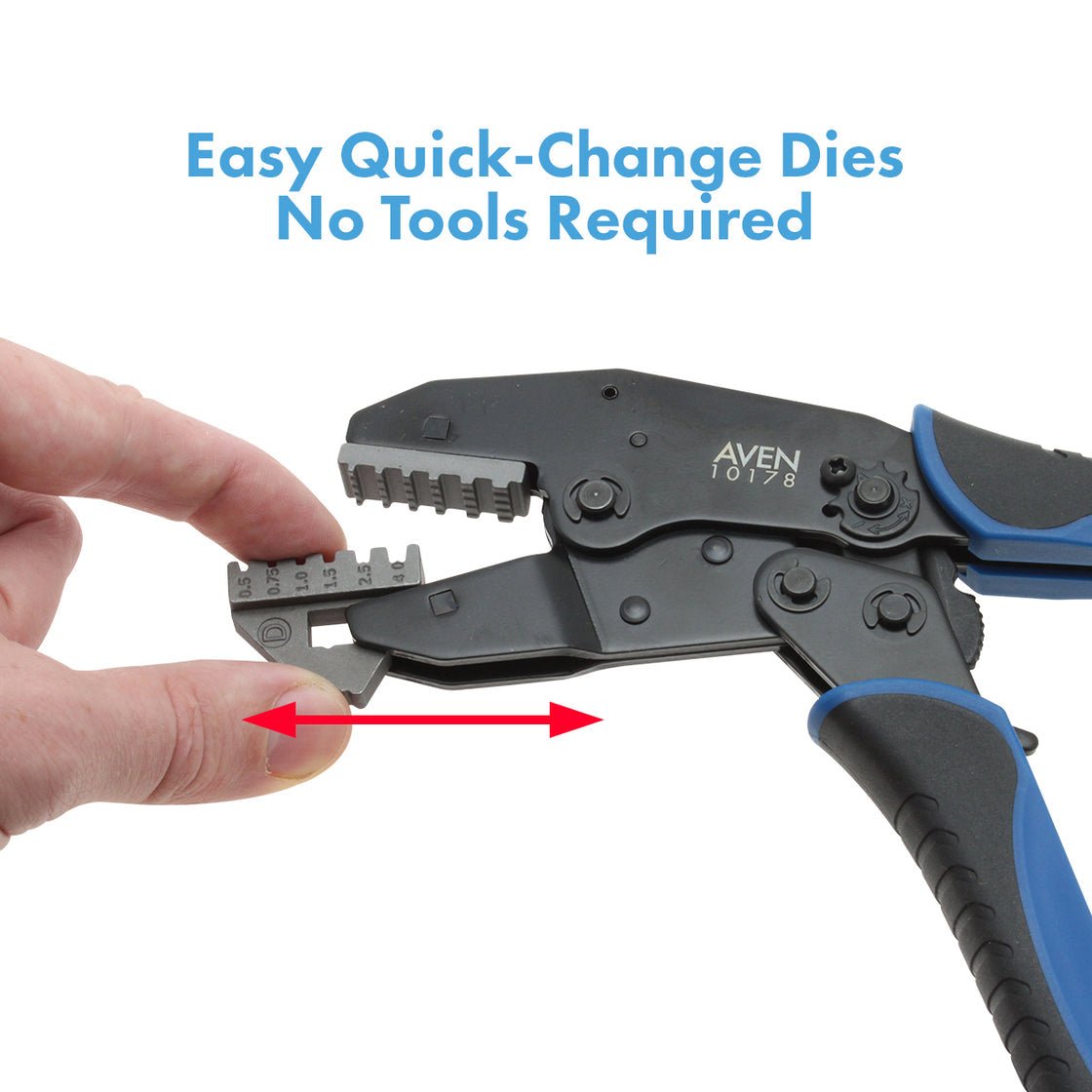

Easy Die Replacement

The crimping dies are easy to replace.  Simply slide the die in or out of the frame by hand.  The dies snap into place with no tools required.

Quick Release

This high-precision wire ferrule crimper features a built-in ratchet that applies correct pressure to ensure a complete crimp every time and the safety release function allows you to stop a faulty crimp before the crimping cycle is complete.

Features

• Aven’s professional grade crimping tool is designed to crimp a variety of ferrules and terminals.
• Kit includes 5 dies and a hard plastic case

• Patented design allows for quick die change without any tools
• Ferrules and terminals are crimped by squeezing the handle through the complete cycle until the handle releases automatically.
• Precise ratcheting mechanism will ensure the same amount of crimping force for all crimps.

10170-KIT 6pc Wire Crimper Kit

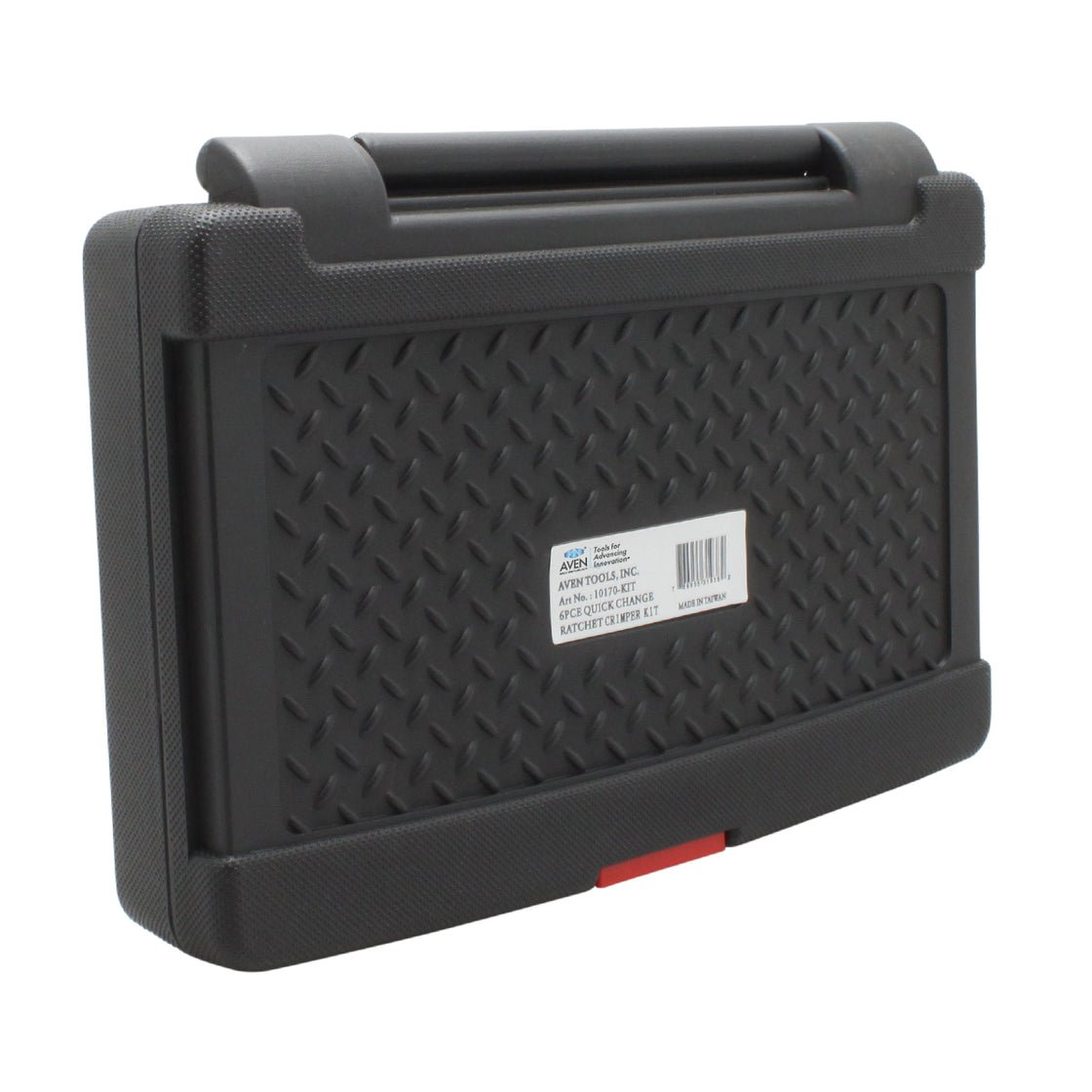

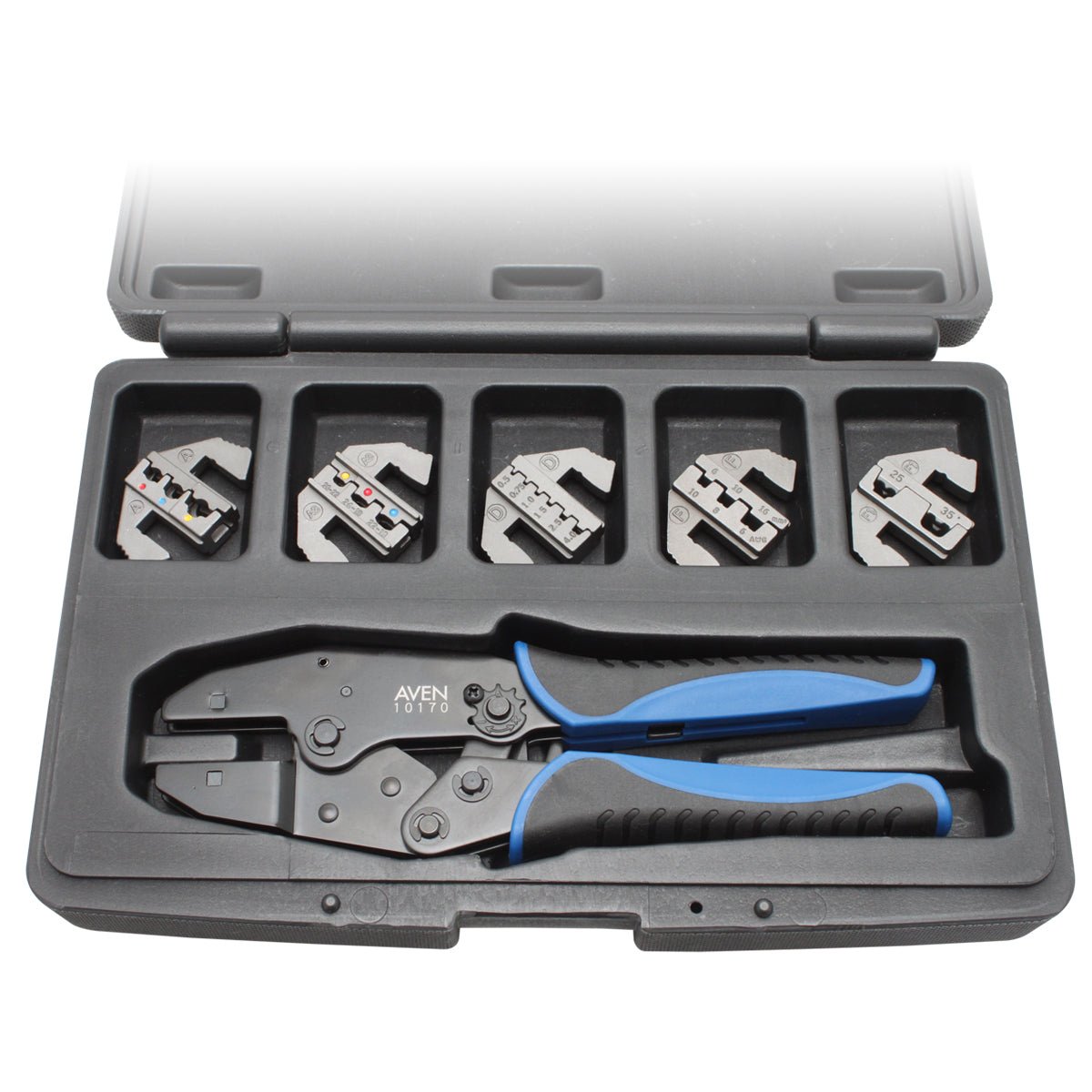

Kit Contents	1 wire crimper frame 5 wire crimper dies 1 hard plastic storage case

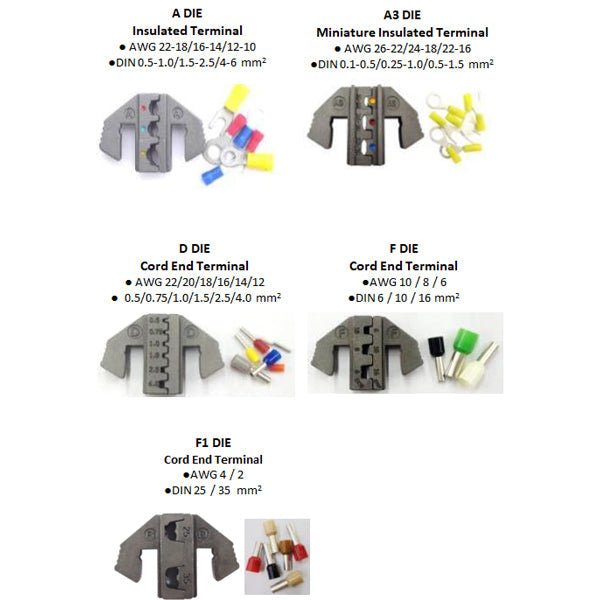

Included Dies	Crimping Die F1 | For Insulated Cord Terminals 4 /2
	Crimping Die F | AWG: 10/8/6 | DIN: 6/10/16 MM2
	Crimping Die D | For Cord End Terminals | 22/20/18/16/14/12 AWG
	Crimping Die A3 | For Miniature Insulated Terminals 26-22/24-18/22-16 AWG
	Crimping Die A | For Insulated End Terminals 22-18/16-14/12-10 AWG
Dimensions	10.75 x 6.75 x 1.75 inch
Weight	2.5 lb
