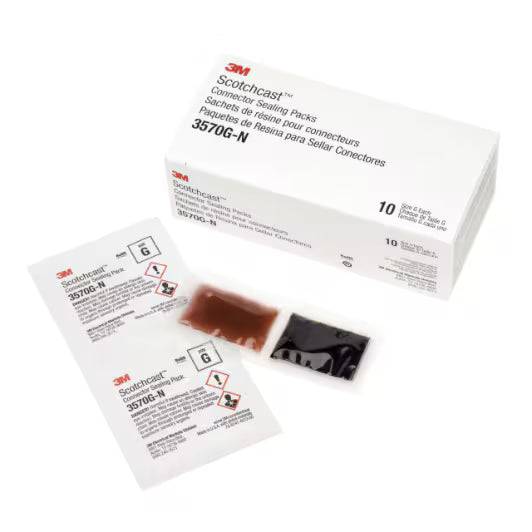

3M 7000133446 3M™ Scotchcast™ Connector Sealing Pack 3570G-N
3M 7000133446 3M™ Scotchcast™ Connector Sealing Pack 3570G-N
3M™ Scotchcast™ Connector Sealing Pack 3570G-N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin that provides excellent flexibility and generates its own heat to cure. This resin is stable in applications at elevated temperatures up to 121°C (250 °F).
3M™ Scotchcast™ Connector Sealing Pack 3570G-N provides a tough, multi-purpose, moisture sealing that comes with a unique, closed mixing pouch for mixing the resin. It is a convenient insulating and encapsulating resin for electrical spring connection. The thermosetting resin does not melt or run after curing. It is suitable for potting and protecting a wide variety of electrical spring connections. The 3M 3570G-N resin is designed to be used with 1 kV rated spring connectors. RoHS 2011/65/EU Compliant.
60 Shore D hardness
Has 8 to 12 minute gel time at 23 °C (73 °F)
Safeguards electrical spring connectors against water, dust, soil and other environmental elements.
Highlights
- 60 Shore D hardness
- Has 8 to 12 minute gel time at 23 °C (73 °F)
- Safeguards electrical spring connectors against water, dust, soil and other environmental elements
- Pack includes thermo-setting resin
- Withstands temperatures of 121°C (250 °F)
- Elongates 57% longer than its original size for easy insulation or wrapping
- Insulates electrical spring connectors
- Includes unique closed mixing pouch
- Designed to be used with 1 kV rated spring connectors
- Comes in black colour
TDS
Details:
|
Application |
Cable Connection |
|
Brands |
3M |
|
Cable Shielding |
Armored, Non-Armored Shielded |
|
Cable Type |
EPR, Solid Dielectric Cables, XLP, XLPE |
|
Connection Type |
Wire |
|
Cure Method |
Room |
|
Dielectric Strength (V/mil) |
435 V/mil |
|
Elongation |
57 % |
|
Flame Retardant |
Yes |
|
Flexibility |
Rigid |
|
Hardness |
60 Shore D |
|
Indoor/Outdoor |
Both |
|
Insulation Outside Diameter Range |
0.64 - 1.01 Inch |
|
Insulation Outside Diameter Range (Metric) |
16.3 - 25.7 mm |
|
Material |
Epoxy |
|
Number of Conductors |
3 |
|
Product Color |
Black |
|
Product Type |
Accessory |
|
Splice Type |
Connector |
|
Tensile Strength (Imperial) |
1779 Pound-Force Per Square Inch |
|
Typical Splice Length |
52.0 in |
|
Typical Splice Length (Metric) |
1320 mm |
|
Units per Case |
10.0 |
|
Voltage |
0 kV - 600 kV |
|
Voltage Application |
Medium Voltage |
|
Wire Connector Type |
Wire Connector Tools |
