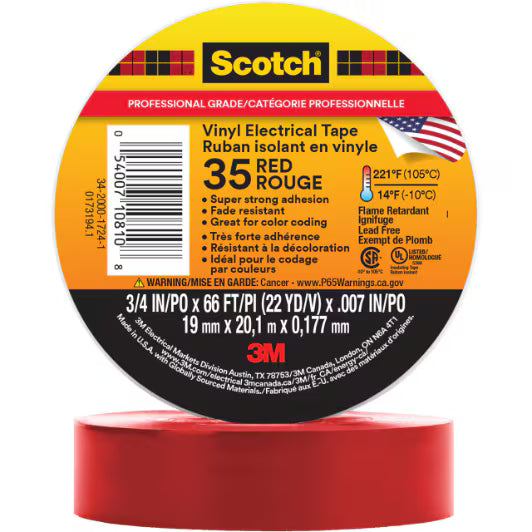

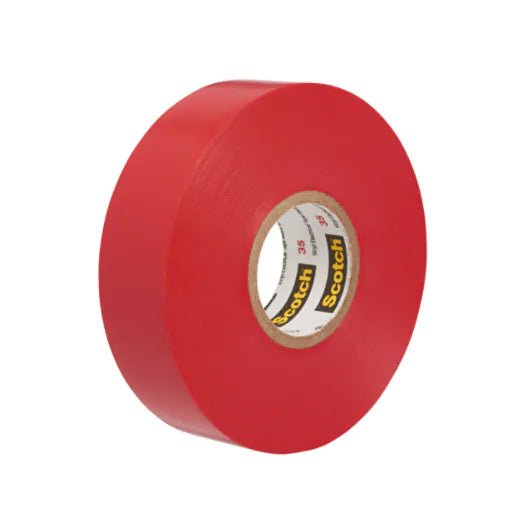

3M 7000006094 Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Red
3M 7000006094 Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Red
Scotch® Vinyl Multi-Colored Electrical Tape 35 is a 7 mil thick, premium grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14 to 221 °F (-10 to 105 °C).
Scotch® Vinyl Color Coding Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure-sensitive, rubber resin adhesive and an elastic PVC backing. This tape is flame retardant and is highly resistant to UV rays and varying weather conditions.
It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS compliant.
The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
Highlights
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
- Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
- Made of durable PVC
- Withstands a temperature range of 14 to 221 °F (-10 to 105 °C)
- UL Listed, VDE, CSA Certified and RoHS 2015/863/EU Compliant
TDS
Details:
Adhesive Type |
Rubber |
Application |
Electrical Maintenance, Insulation |
Backing (Carrier) Material |
PVC |
Backing (Carrier) Thickness (Metric) |
0.18 mm |
Brands |
Scotch |
Case Quantity |
10 Rolls |
Dielectric Strength |
600 V, 1250 V/mil, 1255 mV |
Electrolytic Corrosion Factor |
0.9 |
Elongation at Break |
225.0 % |
Flame Retardant |
Yes |
Insulation Resistance |
> 10^6 megohms |
Maximum Operating Temperature (Celsius) |
105 ℃ |
Maximum Operating Temperature (Fahrenheit) |
221 ℉ |
Minimum Operating Temperature (Celsius) |
-10 ℃, 0 ℃ |
Minimum Operating Temperature (Fahrenheit) |
26 ℉, 32 ℉ |
Product Color |
Purple, Orange, Violet, Pink, Assorted, White, Yellow, Gray, Green, Brown, Red, Blue |
Rolls per Carton |
10 |
Rolls per Case |
100 |
Shelf Life |
5 Year |
Specifications Met |
VDE 0340-TEIL1, RoHS 2011/65/EU, IEC 60454-3-1-6/F-PVC P/90, CSA Certified, UL Listed, VDE Marks License |
Tape Grade |
Professional |
Tensile Strength (Imperial) |
9.0 lb/in, 90.0 lb/in |
Tensile Strength (Metric) |
30 N/10mm, 158 N/100mm, 1577 N/100mm |
Total Tape Thickness without Liner (Imperial) |
7 mil, 7.008 mil |
Total Tape Thickness without Liner (Metric) |
0.178 mm |
Voltage Rating |
600 V |
