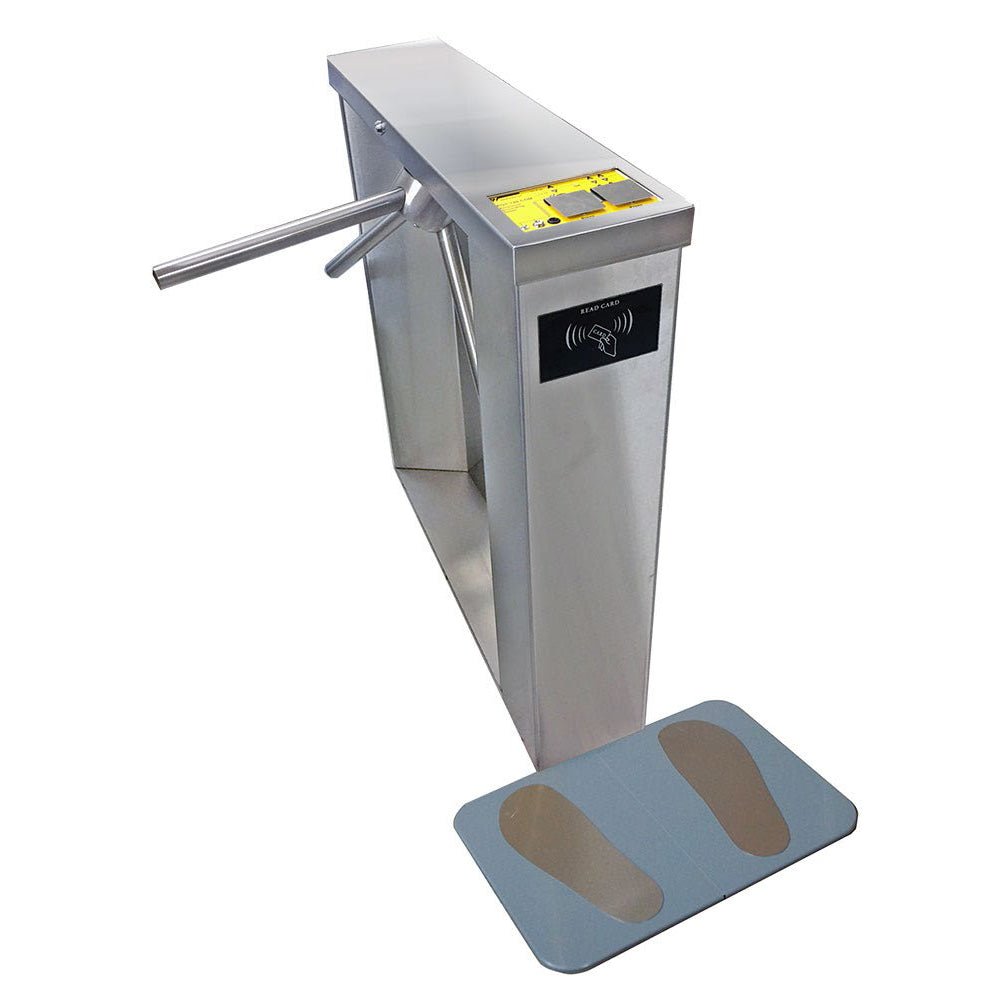

Transforming Technologies PGT120K140 ESD Tester, Footplate with Cables and FastPass Turnstile

PGT120K140 ESD Tester, Non Data Logging, FastPass Turnstile

• TESTING: Independently test the functioning of ESD footwear & wrist strap grounding products and signals if there is a problem
• HANDS-FREE: Automatically test footwear in hands-free mode
• SIGNALS: Audibly and visually signal a "Pass", "High-Fail" or "Low-Fail"
• TIME SAVE: Tests both feet simultaneously and independently to save time
• ACCURATE: Uses a 100volt test circuit (by default) which is the same voltage used for qualification tests.  Adjustable to 30 or 50volts as well.
• COMPONENTS: 7100.PGT120.US Non Data Logging Tester, FastPass Turnstile
• BARRIERS: The PGT120 can integrate with a door/barrier system and trigger the barrier to open with a PASS test.

The PGT120 is an easy to use and complete test station for ESD shoes and wrist straps.

The personnel grounding tester is able to perform a quick and accurate control measurement of the ESD protection. The test results are indicated both with audible and visual signals. The PGT120 measures the left and right shoe separately.

The shoes can even be measured in a hands-free mode which means that the staff members are tested automatically when standing on the foot plate. PGT 120 can be connected to an automatic door opening system.

Hands-Free Testing Video

100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.

The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.
