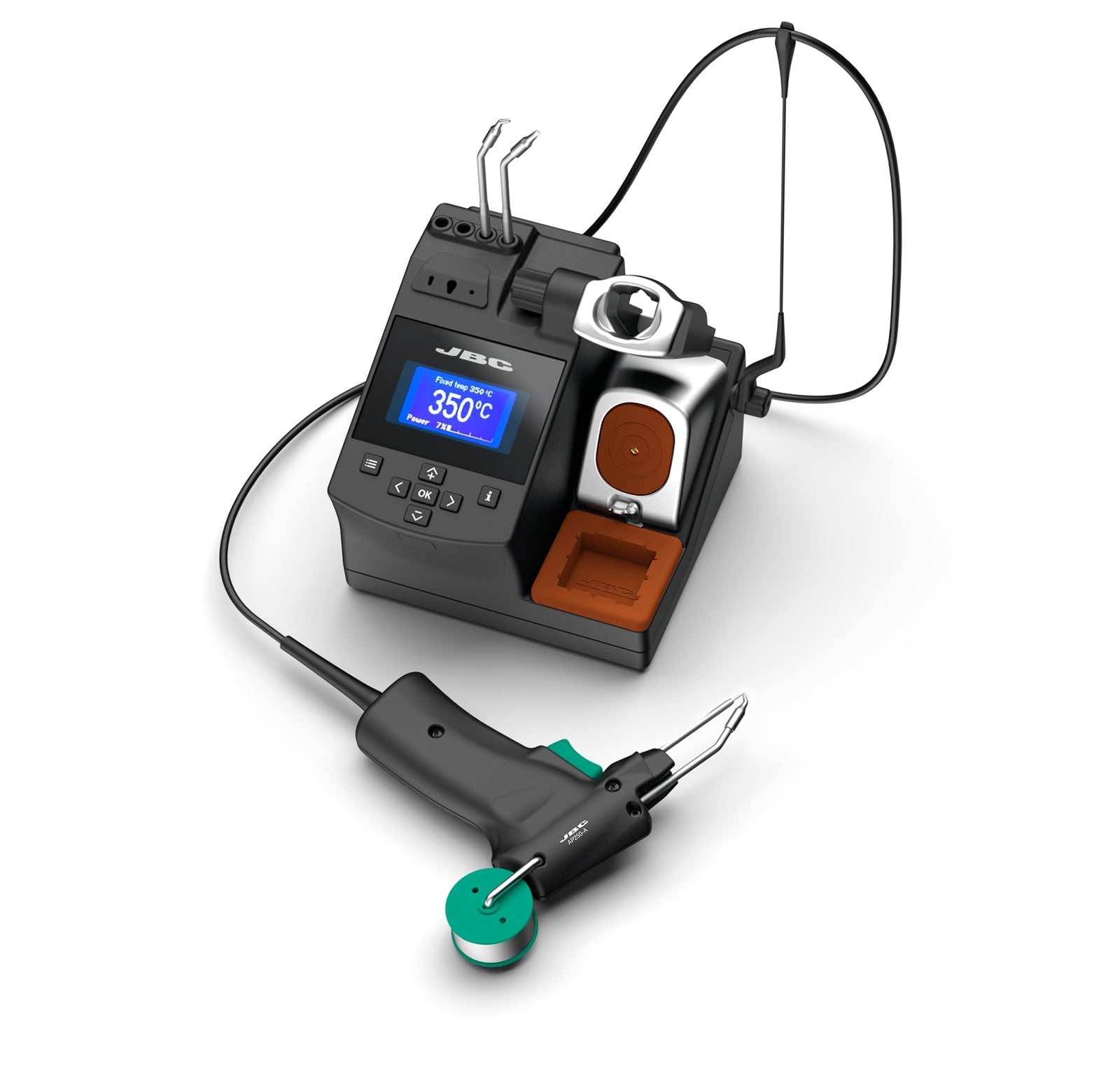

JBC Tools CA-1QG, 120V Solder Feed Station Manual Feed
JBC Tools CA - 1QG, 120V Solder Feed Station Manual Feed MTESolutions
JBC Tools CA-1QG, 120V Solder Feed Station Manual Feed

JBC Tools CA-1QG, 120V Solder Feed Station Manual Feed

JBC Tools SKU: CA-1QG
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

JBC Tools CA-1QF, 120V Solder Feed Station Manual Feed

Designed to for those applications requiring a free hand. Ideal for soldering cables, transformers and THT connectors.

It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:

Selectable Temperature: 90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY:
USB-B: Software PC / Firmware update
Equipotential bonding: Optional connection to EPA
FAE Connector: Smart Fume Extractor control
Earthing Fuse: F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist: Meets and exceed; ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power: 130 W - 23.5 V
Operating temp. range: 10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations
170 x 176 x 145 mm / 2.91 kg.

6.69 x 6.93 x 5.71 in / 6.42 lb.
Package
2344 x 234 x 258 mm / 3.52 kg.

92.28 x 9.21 x 10.16 in / 7.76 lb.


PRODUCT COMPOSITION

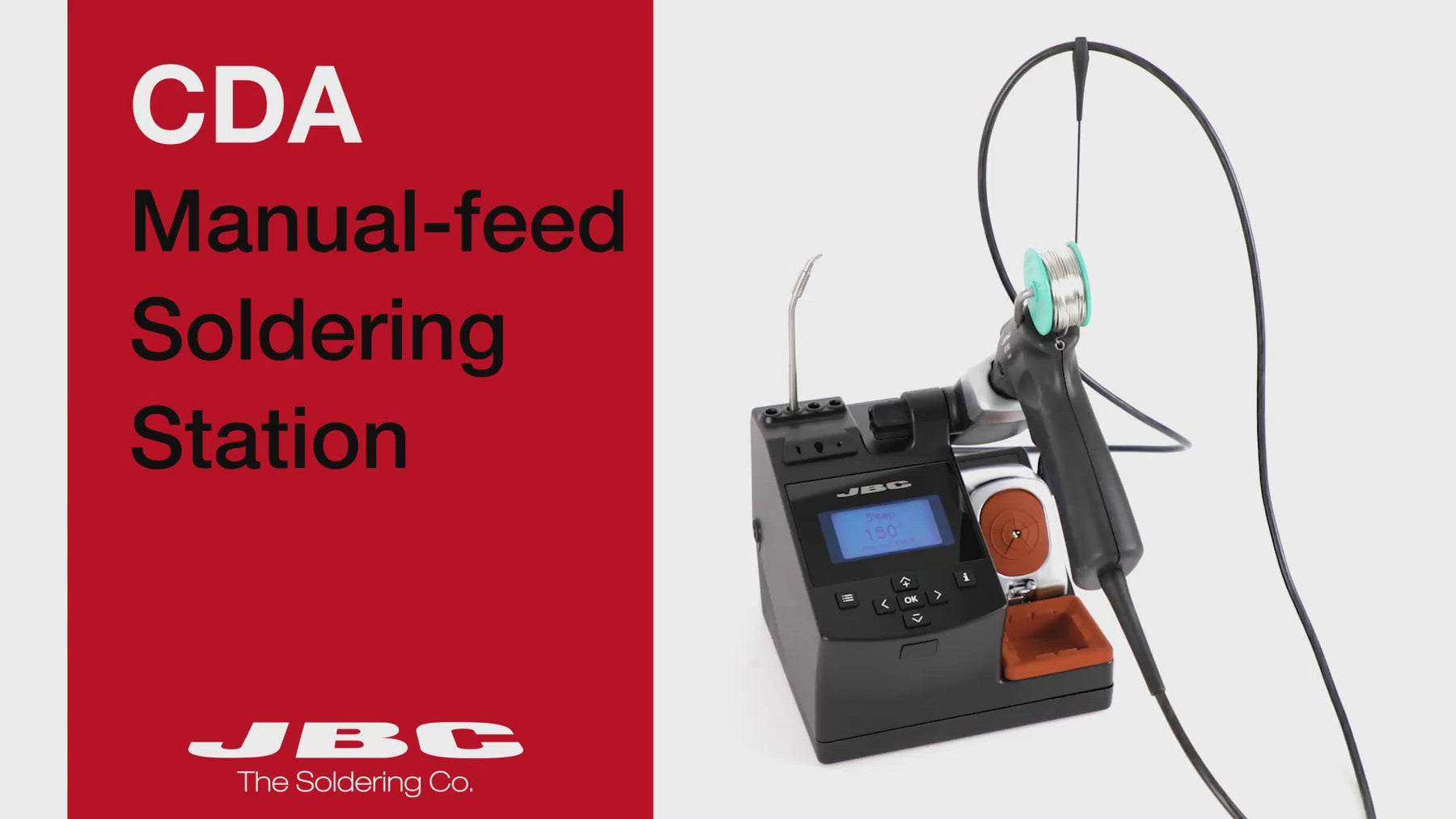

CDA Manual-Feed Soldering Station
