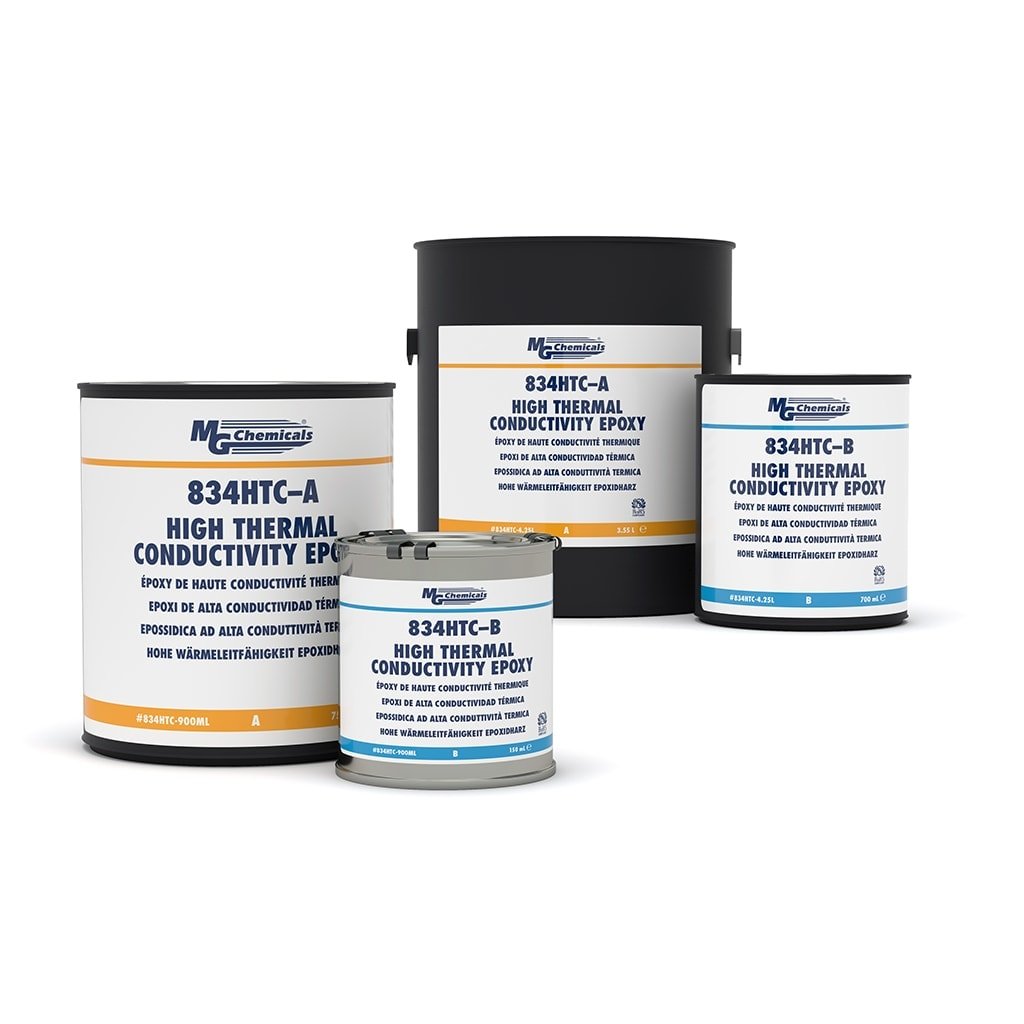

MG Chemicals 834HTC-900ML, High Thermal Conductivity Epoxy, 900ml 2 Can Kit, Case of 1 Kit

MG Chemicals 834HTC-900ML, High Thermal Conductivity Epoxy, 900ml 2 Can Kit, Case of 1 Kit

834HTC is a 2-part, black, rigid, flame-retardant (UL 746A certified) thermal epoxy that provides extreme environmental, mechanical and physical protection for printed circuit boards and electronic assemblies.

This flame-retardant epoxy resin is designed for applications where thermal management and self-extinguishing are critical. It also provides excellent electrical insulation and protects components from static discharge, vibration, abrasion, thermal shock, environmental humidity, salt water, fungus, and many harsh chemicals.

834HTC is our best thermally conductive epoxy potting and can be cured at room temperature or higher.

• Certified UL 746A (File# E334302)
• Thermal conductivity of 0.94 W/(m.K)
• Low CTE
• Low exotherm
• High compressive and tensile strength
• Excellent adhesion to a wide variety of substrates including metals, composites, glass, ceramics, and many plastics
• Excellent electrical insulating characteristics
• Broad service temperature range of-50 to 150 °C (-58 to 302 °F)
• Low shrinkage and high dimensional stability
• 5A:1B volume mix ratio
• Contains non-halogenated flame-retardant fillers
• Solvent-free

Technical Data Sheet

Safety Data Sheet
