JBC Tools CLMR-A, Tip Cleaner for Robot
JBC Tools
SKU: CLMR-A
Regular price
$702.62
$702.62
Regular price
Sale price
$702.62
$702.62
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
JBC Tools CLMR-A, Tip Cleaner for Robot

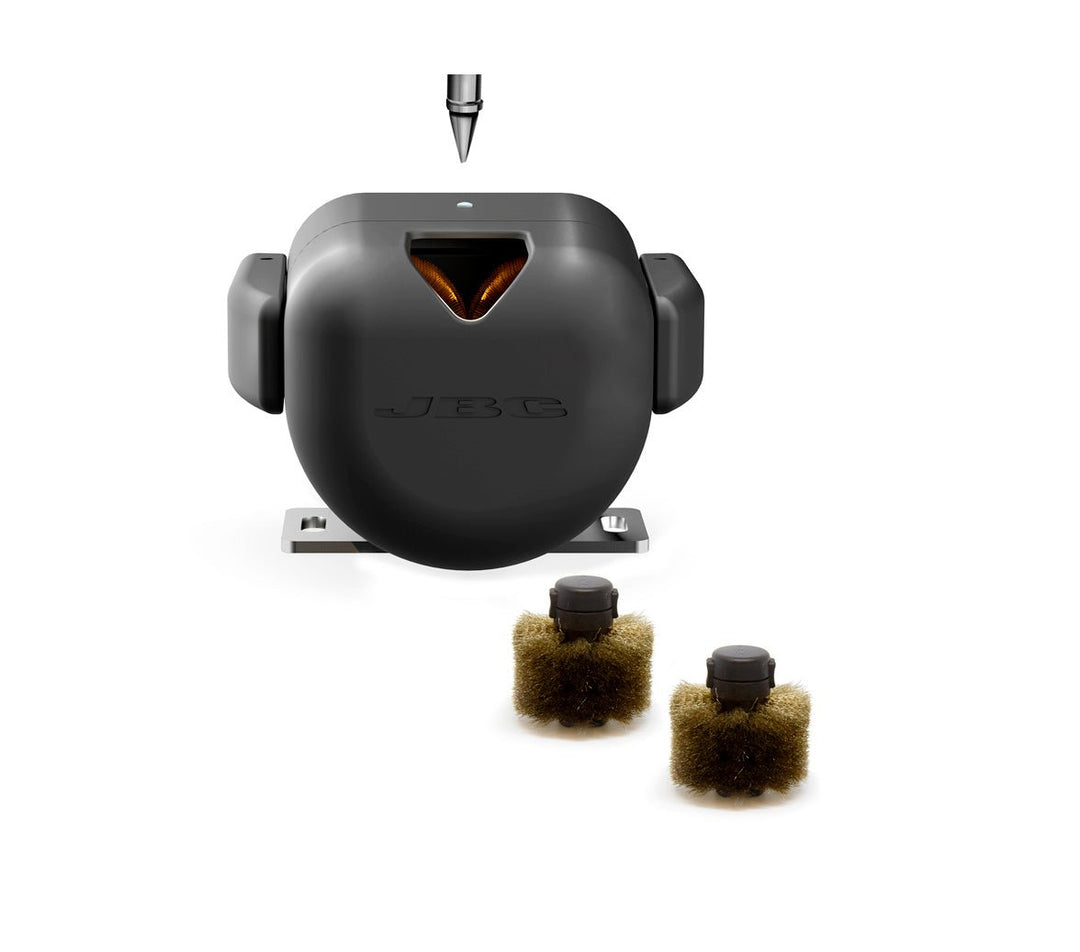

CLR Tip Cleaner, features a large capacity tank with easy extraction and a large opening for easy tip access.
In order to facilitate automatic cartridge cleaning, the position of the stand can be adjusted by pivoting up to 35° in both directions and can therefore be optimally adapted to the working position.
It comes with 2 easily-excangeable metal brushes. Different Brushes are available to suit your needs.
SELECTABLE PARAMETERS
Operation modes: Switch input
SPECIAL FEATURES
Fast, thorough and gentle tip cleaning:: The 50 mm (1.97") diameter brushes (available with metal or plastic bristles) thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.
Silent operation: Thanks to the brushless motors that drive the cleaning brushes, the CLMU operation is extremely quiet.
High capacity solder collector tray: The high solder residue capacity tray allows extending maintenance intervals increasing the productivity.
Tilt adjustment: The cleaning unit allows 70° tilt adjustment to facilitate tip cleaning with Cartesian and SCARA robots.
CONNECTIVITY
Serial communication RS-232: M8-5 pins
ESD/EOS
ESD safe
POWER SUPPLY
Voltage (DC): 24 V / 2.5 A required through M8
Operating temp. range: 10 to 40 ºC / 50 to 104 ºF
DIMENSIONS AND WEIGHT
Cleaning Unit
172 x 153 x 111 mm / 2.74 kg.
6.77 x 6.02 x 4.37 in / 6.03 lb.
Package
221 x 136 x 126 mm / 3.06 kg.
8.70 x 5.35 x 4.96 in / 6.75 lb.
