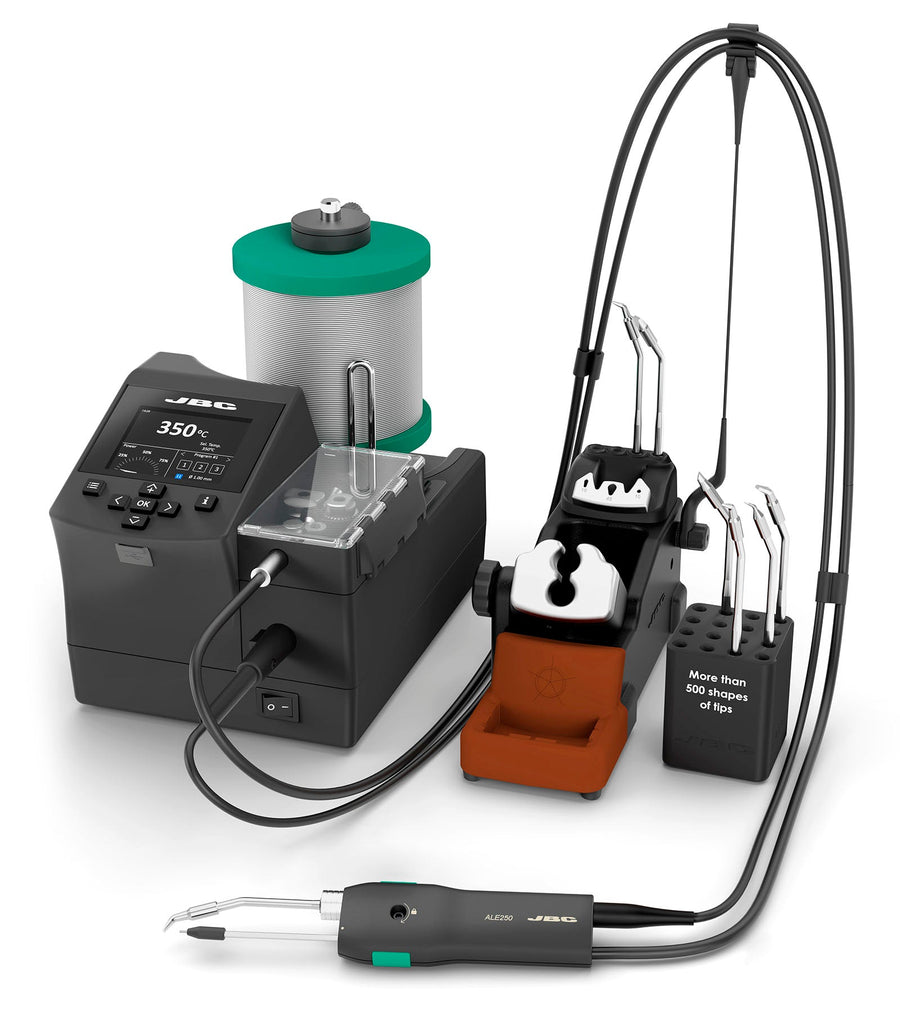

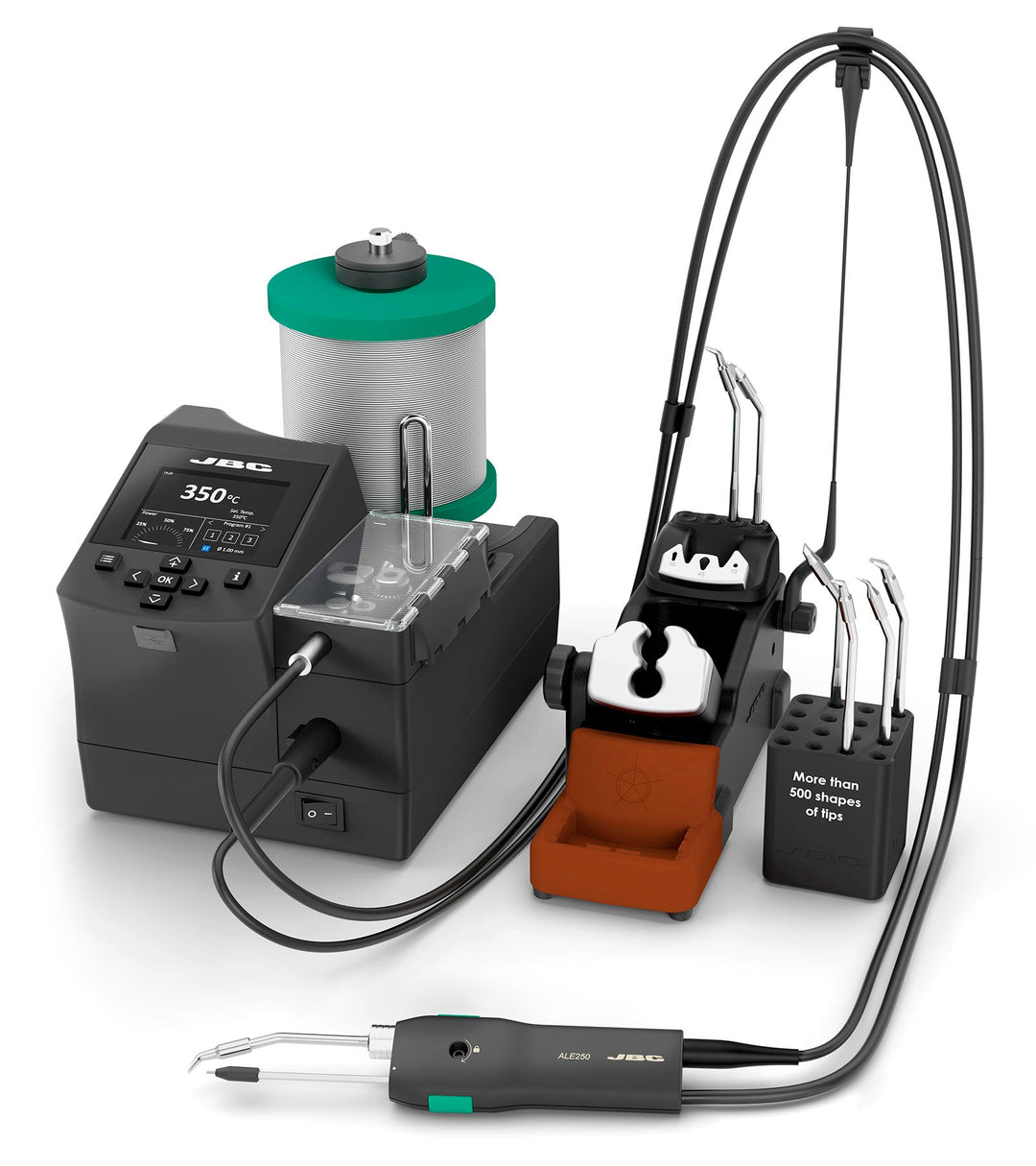

JBC Tools ALE-110VB ALE Station Automatic-Feed Soldering Iron
Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.
This station is supplied with:
• The new version of ALE250 Automatic-Feed Soldering Iron, featuring a dynamic tool setting making it ideal for reaching different solder joints.. It works with C250, C250E and C245L Cartridge Range.
• GALE10V feeding solder wire with a diameter of Ø1 mm and it is compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
This station can hold a solder reel of up to 2 kg / 4.40 lb.
• 3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length.
• Connectivity: Data download, remote control for traceability and software updates.
It includes JBC Most Efficient Soldering System.
This station is supplied with:
• The new version of ALE250 Automatic-Feed Soldering Iron, featuring a dynamic tool setting making it ideal for reaching different solder joints.. It works with C250, C250E and C245L Cartridge Range.
• GALE10V feeding solder wire with a diameter of Ø1 mm and it is compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
This station can hold a solder reel of up to 2 kg / 4.40 lb.
• 3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length.
• Connectivity: Data download, remote control for traceability and software updates.
SPECIFICATIONS
Nominal power
180 W
Peak power
150 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF (Through station menu settings)
Connections
USB-A Update and files import-export
USB-B Software PC
RJ12 Fume extractor connection
Equipotential bonding
Optional connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
ESD safe
Meet ANSI/ESD S20.20
Solder wire diameter
1.0 mm / 0.04 in with GALE10V already assembled
Max. wire length
250 mm / 9.84 in (for discontinuous + program mode)
Min. wire length
0.5 mm / 0.02 in
Max. forward speed
0.5 to 50 mm/s / 0.02 to 1.97 in/s
Max. Backward Function
0.0 to 5.0 mm/s / 0.5 to 0.20 in/s
Programs
5 Programs
Program Steps
1 to 3 Steps (for each program)
Graphics and profiles
USB-B
PC communications
Pedal connector
Tool control
Compatible Solder Reel
Weight
up to 2 kg / 4.4 Ib
Diameter
max. 100 mm / 3.94 in
Height
max. 100 mm / 3.94 in
Reel stand axis
Ø 10 mm / Ø 0.4 in
Weight and dimensions
Automatic Feed
235 x 170 x 112 mm / 7.83 kg.
9.25 x 6.69 x 4.41 in / 17.25 lb.
Package
545 x 345 x 275 mm / 8.46 kg.
21.46 x 13.58 x 10.83 in / 18.65 lb.
