Hakko FM204-01 Self-Contained Desolder & Soldering Station
Hakko
SKU: FM204-01
Regular price
$780.77
Regular price
Sale price
$780.77
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

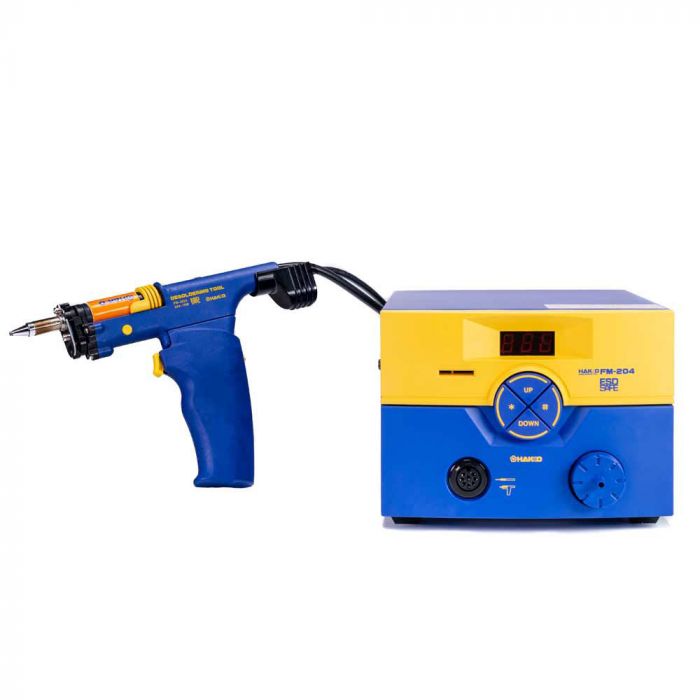

Hakko FM-204 "Self-Contained" Desoldering & Soldering Station with FM-2024 Desoldering Tool
Hakko’s FM-204 is a self-contained desoldering and soldering station with a built-in vacuum pump. This versatile station uses the N3 series quick-change composite nozzles.
Note: Nozzles not included
Features & Benefits
Specifications
| Model Name | FM-204 |
| Part No. | FM204-01 |
| Power Consumption | 120W |
| Temperature Range | 200° - 450°C (400° - 840°F) |
| Temperature Stability | ±5°C (±9°F) |
| Country of Origin | JPN |
| Safety Approval |  |
Station
| Output Voltage | 24V |
| Outer Dimensions | 160(W) x 120(H) x 225(D) mm 6.3 (W) x 4.7 (H) x 8.9 (D) in. |
| Weight (w/o Cord) | 3.7 kg (8.1 lb.) |
| Vacuum Generator | Vacuum pump, double cylinder |
| Vacuum Pressure (max.) | 80 kpa (600mm Hg) (24 in. Hg) |
| Suction Flow | 15 liters/min. |
What's in the box?
| Description | Part No. |
| FM-204 Desoldering Station | --- |
| Desoldering handpiece | FM2024-02 |
| Filter pipe assembly (1 piece only) | A1612 |
| Ceramic paper filter | A1613 |
| Control card | B2972 |
| Power cord | B2419 |
| Connecting cable | B3253 |
| Iron Holder with 599B | FH200-05 |
| Cleaning drill (for heating element) | B2873 |
| Nozzle remover | B2876 |
| Heat resistant pad | B2300 |
| Tip Tray | B2756 |
| Instruction Manual | -- |
NOTE: The FM204-CP includes all the above as well as one ea
