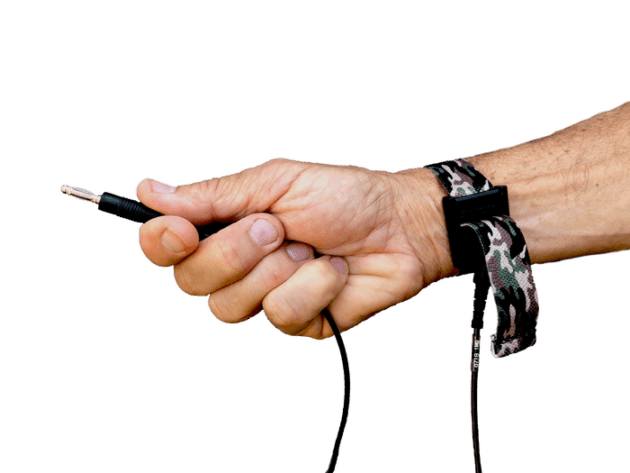

ACL Staticide 8156 Premium Wrist Strap with 1MΩ Coiled Cord, Camo w/4mm Stud
ACL Staticide 8156 Premium Wrist Strap with 1MΩ Coiled Cord, Camo w/4mm Stud
The ACL Staticide 8156 is a camouflage ESD wrist strap set for personnel grounding at a static-sensitive workstation. It includes the 8116 premium camouflage wrist strap, 8107 premium coiled cord, and alligator clip. This listing is for the complete set, not the 8116 strap by itself.
Best Uses / Applications
- Electronics assembly and inspection benches where a wrist strap is part of the ESD-control program.
- Static-sensitive testing and repair at an appropriately grounded workstation.
- Replacing a strap and cord together when both pieces are needed.
Connect the cord to an appropriate grounding point and test the complete worn system using your facility's approved ESD procedures.
Key Features

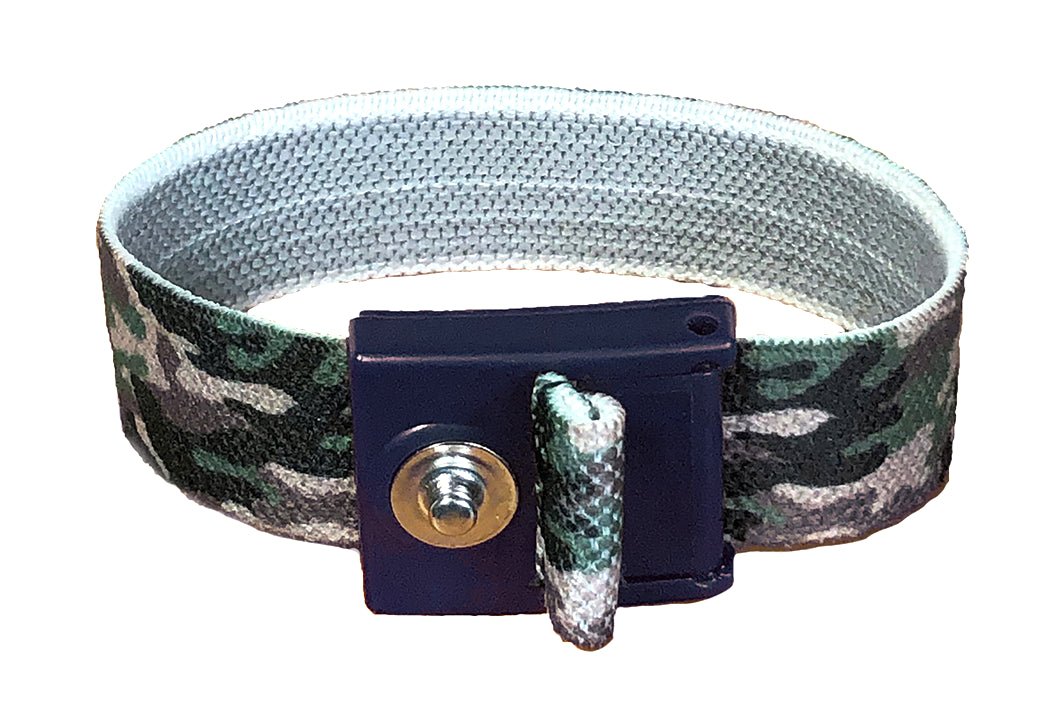

- Set includes ACL Staticide 8116 camouflage wrist strap, 8107 premium coiled cord, and alligator clip.
- 4 mm wrist-strap stud connection.
- Listed 1 MΩ coiled cord resistance.
Specifications
| Set part number | ACL Staticide 8156 |
|---|---|
| Wrist strap | ACL Staticide 8116 premium camouflage wrist strap |
| Cord | ACL Staticide 8107 premium coiled cord with alligator clip |
| Wrist connection | 4 mm stud |
| Listed cord resistance | 1 MΩ |
Compare: 8116 Strap vs. 8156 Set
The 8116 is the camouflage wrist strap component. Choose the 8156 when you need the 8116 strap together with the 8107 coiled cord and alligator clip.
Frequently Asked Questions
Does the 8156 include the coiled cord?
Yes. The set includes the 8116 camouflage wrist strap, 8107 coiled cord, and alligator clip.
Is 8156 the same as the 8116 wrist strap?
No. The 8116 is the strap alone; 8156 identifies the strap-and-cord set.
What size wrist-strap connection does it use?
The listed connection is a 4 mm stud.
Where is this set used?
It is used for personnel grounding during static-sensitive bench work in an ESD-controlled area.
How should the set be checked before use?
Follow your facility's procedure to test the complete strap-and-cord system while worn.
View the 8116 camouflage wrist strap technical data sheet (band component).
