Choosing Anti-Fatigue and Ergonomic Mats for Assembly Stations
Choosing Anti-Fatigue and Ergonomic Mats for Assembly Stations
Standing for extended periods at an assembly station causes leg fatigue, back strain, and reduced concentration — all of which increase error rates and reduce throughput. Anti-fatigue mats address this by promoting subtle postural movement, improving circulation, and cushioning joints during long shifts. In electronics assembly environments, the mat must also meet ESD requirements: standard foam or rubber anti-fatigue mats are electrically insulative and can accumulate static charge, making them a contamination source in an EPA. ESD-safe anti-fatigue mats combine ergonomic cushioning with conductive or dissipative construction and a ground cord connection, providing both operator comfort and static control in a single product. For more workplace safety and ergonomics resources, visit our Workplace Safety & Ergonomics Hub.
Anti-Fatigue Mat Selection Guide
| Attribute | Options | How to Choose |
|---|---|---|
| Material & Thickness | Rubber/nitrile (most durable), closed-cell gel foam (plush comfort), vinyl (lightweight, cost-effective); ⅜–⅝" typical | Rubber/nitrile for high-traffic production lines; gel foam for cleanroom and lab areas; vinyl for individual workstations with lower traffic |
| ESD Performance | Conductive (lower resistance, faster charge drain), static-dissipative (controlled drain rate), non-ESD (insulative — not suitable for EPAs) | Use conductive or dissipative mats in any EPA; verify surface resistance meets ANSI/ESD S20.20; always bond to ground via included ground cord |
| Surface & Traction | Textured non-slip top surface; beveled edges to reduce trip hazard | Beveled edges are essential in high-traffic areas; textured surface prevents slipping in environments where liquids or flux may be present |
| Cleanability | Washable (gel foam), wipe-down (rubber/vinyl), standard (spot clean only) | Washable mats required for cleanroom-adjacent environments; verify cleaning chemical compatibility with ESD surface properties |
| Coverage Format | Individual mat (single workstation), interlocking runner (production line), interlocking tile (large area coverage) | Interlocking formats allow custom coverage without gaps; individual mats for fixed single-operator stations |
Featured Products
| Product | Construction | ESD Rating | Best For |
|---|---|---|---|

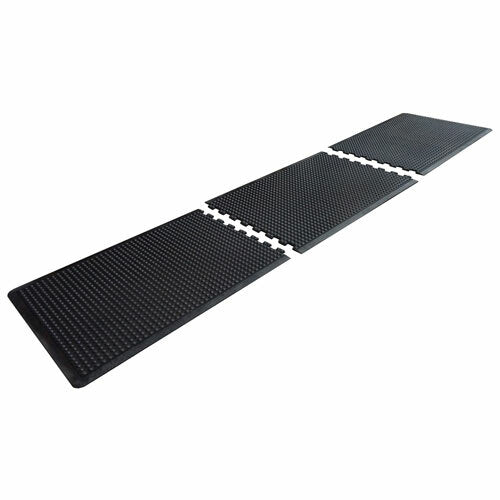

| Transforming Technologies ComfortDOME Conductive Runner | Interlocking sections; ComfortDOME surface for subtle rebound; conductive top layer | Conductive | Production line runners; long assembly lines requiring continuous ESD-safe coverage |

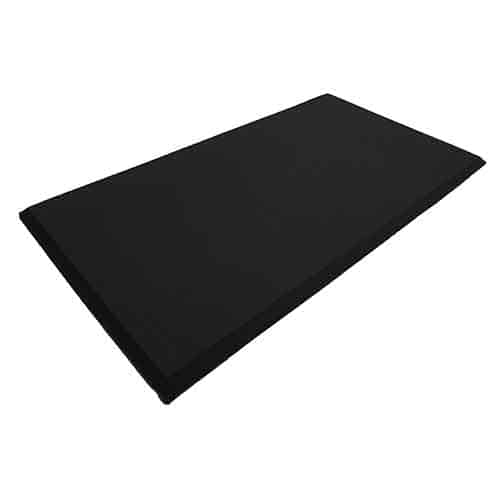

| ComfortGEL Washable ESD Anti-Fatigue Mat | Closed-cell gel foam; static-dissipative; washable surface | Static-dissipative | Cleanroom-adjacent areas, lab environments, anywhere washability and ESD control are both required |
| SCS Anti-Fatigue Vinyl Mat Kit (with Ground Cord) | Lightweight vinyl; includes ground cord for quick setup | ESD-safe with ground cord | Individual workstations; cost-effective single-operator ESD setup; portable applications |
| TileSTAT Conductive Interlocking Tiles (3’×3’) | Heavy-duty interlocking tiles; rugged traction surface; conductive construction | Conductive | Large manufacturing zones; areas requiring both heavy-duty durability and ESD compliance |
Frequently Asked Questions
Can I use a standard anti-fatigue mat in an ESD-controlled area?
No. Standard anti-fatigue mats — including most foam, rubber, and vinyl mats not specifically rated for ESD — are electrically insulative. They accumulate static charge from foot contact and movement, making them a charge source rather than a control measure. In an EPA, an insulative floor mat can charge an operator’s footwear and body even when heel grounders are worn, because the insulative mat breaks the ground path between the grounder and the floor. Always use mats with verified ESD ratings and bond them to ground via a ground cord.
What is the difference between a conductive and a static-dissipative anti-fatigue mat?
Conductive mats have lower surface resistance (typically 10⁴–10⁶ Ω) and drain charge more rapidly. Static-dissipative mats have higher resistance (10⁶–10⁹ Ω) and drain charge at a controlled, slower rate — which is actually preferred for most electronics assembly applications because it prevents the rapid discharge that can damage sensitive components. Both must be bonded to ground to function. Verify the mat’s resistance specification against your ESD control plan requirements before purchase.
How do I verify an ESD anti-fatigue mat is performing correctly after installation?
Test surface resistance (point-to-point and point-to-ground) with a surface resistance meter after installation and quarterly thereafter. Verify the ground cord connection is secure and the common point ground is properly bonded. Clean the mat only with ESD-safe cleaners — standard floor cleaners can leave insulative residues that alter surface resistance. Document all test results as part of your ANSI/ESD S20.20 compliance records.
Do anti-fatigue mats actually reduce fatigue and errors in assembly environments?
Yes — ergonomics research consistently shows that anti-fatigue mats reduce lower-limb discomfort, improve circulation, and reduce postural fatigue during prolonged standing. The mechanism is the subtle micro-movements the mat’s cushioning encourages, which activate leg muscles and improve blood flow compared to standing on a hard surface. Reduced physical fatigue correlates with improved concentration and lower error rates in precision assembly tasks. The ergonomic benefit is in addition to the ESD control function — both are reasons to specify ESD-safe anti-fatigue mats at standing assembly stations.
